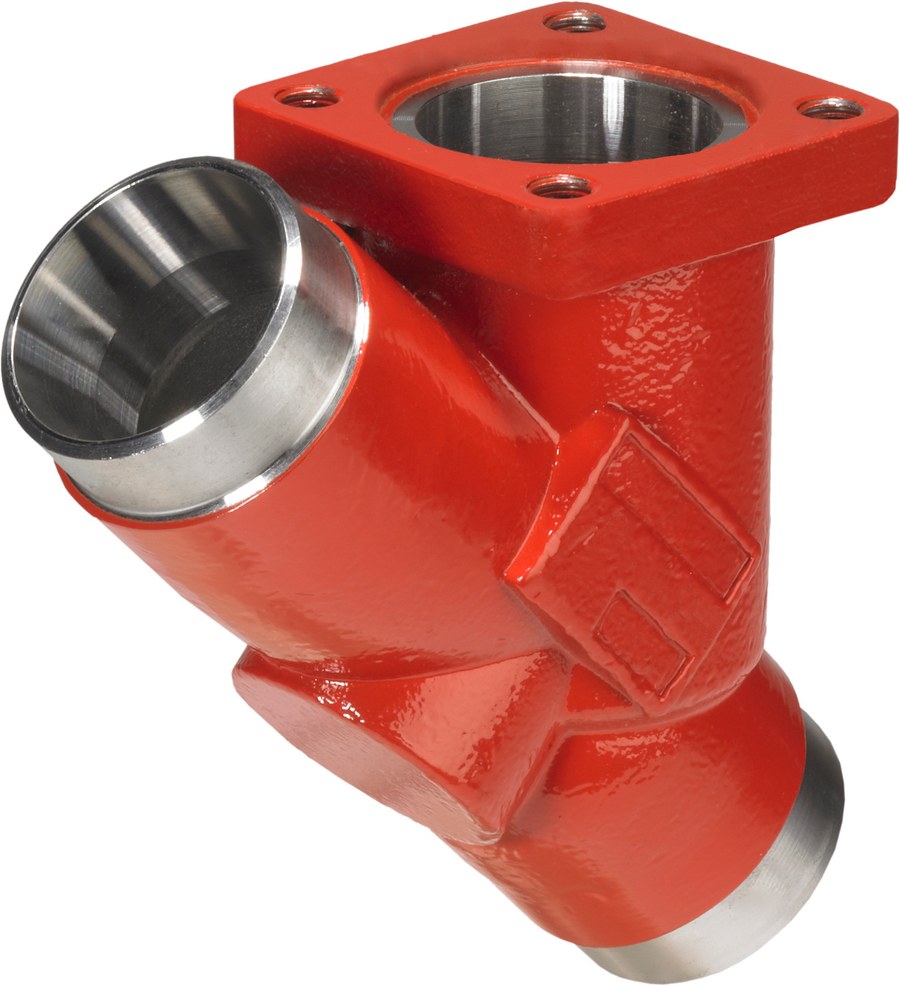

Danfoss SVL Flexline multifunction valve body, SVL 25 straightway socket weld, 25 mm (1 in), 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 25 multifunction valve body for the SVL Flexline industrial-refrigeration range, code 148B5457. This is the bare valve housing (body only, without function module) in a low-temperature steel casting; it is welded or threaded permanently into the line and then converted to any SVL Flexline function — shut-off (SVA-S/SVA-L), regulating (REG-SA/REG-SB), check & stop (SCA-X) or check (CHV-X) — by fitting the corresponding function module (complete top part). Keeping a common body across functions lets a plant standardise on one housing and change the valve duty later. This SKU is the straightway body with 25 mm (1 in) socket weld connections. Bi-flow body; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Steel construction suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway bodies place the inlet and outlet in line; socket-weld ends accept the pipe stub for socket welding (ASME B 16.11). Order the matching SVL function module separately for the required duty and nominal size.
Technical Specifications
- Type
- Multifunction valve body, SVL 25 (SVL Flexline)
- Code number
- 148B5457
- Series
- SVL Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-S/SVA-L, REG-SA/REG-SB, SCA-X or CHV-X function module
- Nominal size
- 25 mm (1 in)
- Flow direction body
- Straightway
- Connection
- Socket weld (ASME B 16.11)
- Body material
- Steel
- Flow
- Bi-flow body
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1, 2
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice) for DN <= 25
- Approvals
- CE, UKCA
- Net weight
- 2.462 kg
- EAN
- 5702428485524
- Product group
- Multifunction valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2003:X:25)
- Connection material
- Steel
- Connection standard
- ASME B 16.11
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 in
- Inlet connection size [mm]
- 25 mm
- Inlet connection type
- Socket weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1 in
- Outlet connection size [mm]
- 25 mm
- Outlet connection type
- Socket weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 25
Standards & Compliance
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body. Select by nominal size (25 mm / 1 in), body direction (straightway) and connection (socket weld). The same body accepts any SVL Flexline function module of the matching size, so the valve duty (shut-off / regulating / check & stop / check) is set by the top part fitted, not by the body. Butt-weld, socket-weld and NPT-threaded housings are separate codes and are not interchangeable; EN (DIN) and ASME variants are also separate codes — confirm the mating pipe standard before ordering. Straightway and angleway bodies of the same size share the function-module range.
