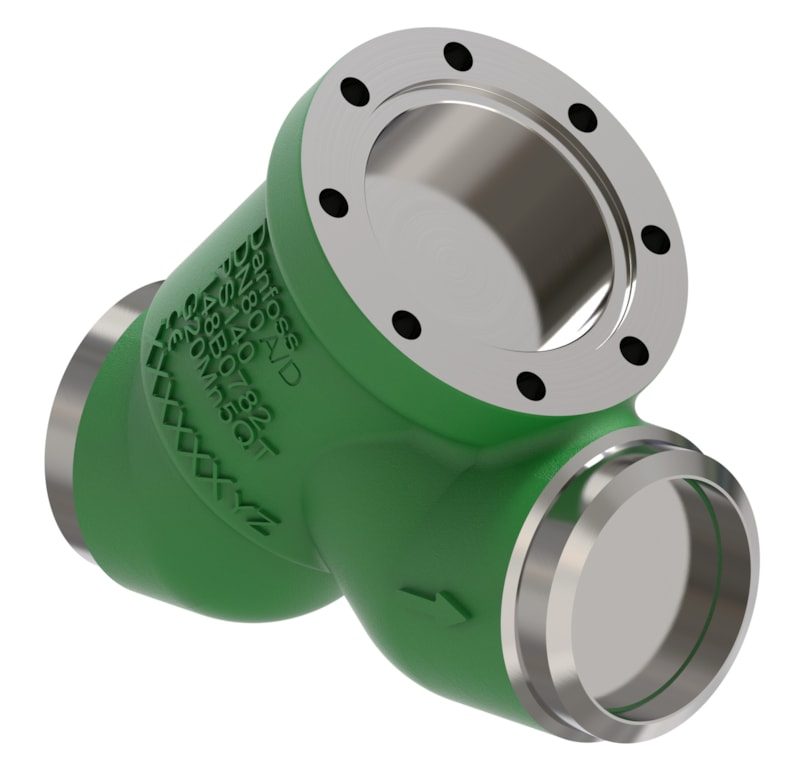

Danfoss SVL-140B 100 multifunction valve body, straightway butt weld 100 mm (4 in), 140 bar CO2, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL-140B 100 multifunction valve body for the 140 bar (2030 psig) SVL Flexline range for industrial R744 (CO2) sub- and trans-critical systems, code 148B6919. This is the bare valve housing (body only, no function module): it is welded or brazed permanently into the line and then given its duty — shut-off (SVA-140B) or strainer (FIA-140B) — by fitting the corresponding complete top part, which exchanges without cutting the body out of the line. This SKU is the straightway body with 100 mm (4 in) butt weld connections to ANSI B36.10 SCH80 / EN 10216-2. Single-flow body (embossed 1-way arrow); maximum working pressure 140 bar (2030 psig), maximum differential pressure 110 bar (1595 psig); media temperature range -40 to 150 C (-40 to 302 F). Housing and bonnet in low-temperature steel to the requirements of the Pressure Equipment Directive; CE marked. Straightway bodies place the inlet and outlet in line. Order the matching SVA-140B or FIA-140B function module separately for the required duty.
Technical Specifications
- Type
- Multifunction valve body, SVL-140B 100 (SVL Flexline, 140 bar CO2)
- Code number
- 148B6919
- Series
- SVL-140B Flexline (multifunction valve body / housing)
- Function
- Bare valve body — accepts SVA-140B (shut-off) or FIA-140B (strainer) function module
- Nominal size
- SVL-140B 100
- Direction
- Straightway
- Flow direction
- Single-flow (embossed 1-way arrow)
- Connection standard
- ANSI B36.10 SCH80 / EN 10216-2
- Connection size
- 100 mm (4 in)
- Connection type
- Butt weld
- Body material
- Low-temperature steel
- Connection material
- Steel
- Maximum working pressure
- 140 bar (2030 psig)
- Maximum differential pressure
- 110 bar (1595 psig)
- Media temperature range
- -40 to 150 C (-40 to 302 F)
- Applicable media
- R744 (CO2), sub- and trans-critical
- CE mark
- Yes
- Approvals
- C UL US LISTED, CE, CRN
- Net weight
- 14.5 kg
- Gross weight
- 15.789 kg
- EAN
- 5715162685266
Standards & Compliance
- Size / Series
- 100 mm (4 in)
- Material
- Low-temperature steel
- Pressure Rating
- 140 bar
- Temperature Range
- -40 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL-140B Flexline multifunction valve body for 140 bar CO2 service. Select by nominal size (SVL-140B 100), body direction (straightway) and connection (100 mm (4 in) butt weld, ANSI B36.10 SCH80 / EN 10216-2). The same body accepts an SVA-140B shut-off or FIA-140B strainer top part, so the duty is set by the module fitted, not by the body. Butt-weld and brazed housings are separate codes and are not interchangeable; EN and ANSI/ASME connection standards are also separate codes — confirm the mating pipe standard before ordering. The 140 bar CO2 range is distinct from the 52/65 bar SVL family and its parts are not interchangeable.
