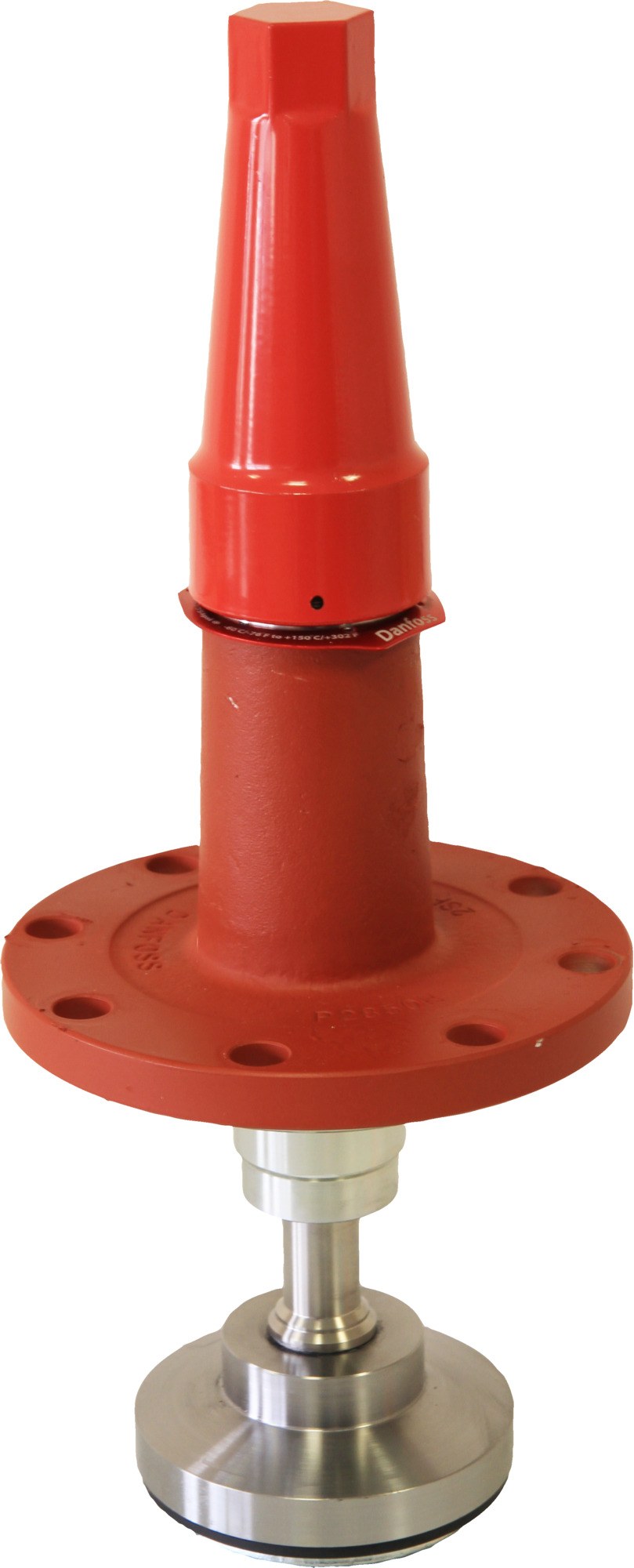

Danfoss SVA-S 80 function module (complete top part) with cap, fits 80 mm (3 in) SVA-S shut-off valve, 52 bar (code 148B5916)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 80 function module (complete top part) for the SVL Flexline SVA-S / SVA-L shut-off and regulating valve range, code 148B5916. The function module is the complete field-serviceable operating top part — bonnet, spindle, renewable seat and cone, gaskets and bolts — that mounts onto the matching 80 mm (3 in) SVA-S/SVA-L valve housing to make up or repair a complete valve. Supplied with cap. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). The seat and cone are designed to close tightly and withstand high system pulsation and vibration, and the top part can be dismantled and serviced in line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) industrial refrigeration systems.
Specifications
- Part number
- 148B5916
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 80 mm
Compatibility
Danfoss SVL Flexline function module (complete top part). This code is the cap-equipped top part for the 80 mm (3 in) SVA-S / SVA-L valve. Order to repair or convert an existing 80 mm SVA housing, or together with the matching housing to make up a complete valve. Confirm the valve nominal size (80 mm / 3 in), neck length and equipment (cap vs handwheel) before ordering. Cap = for infrequent operation; handwheel = for frequent throttling/operation.
Approvals
