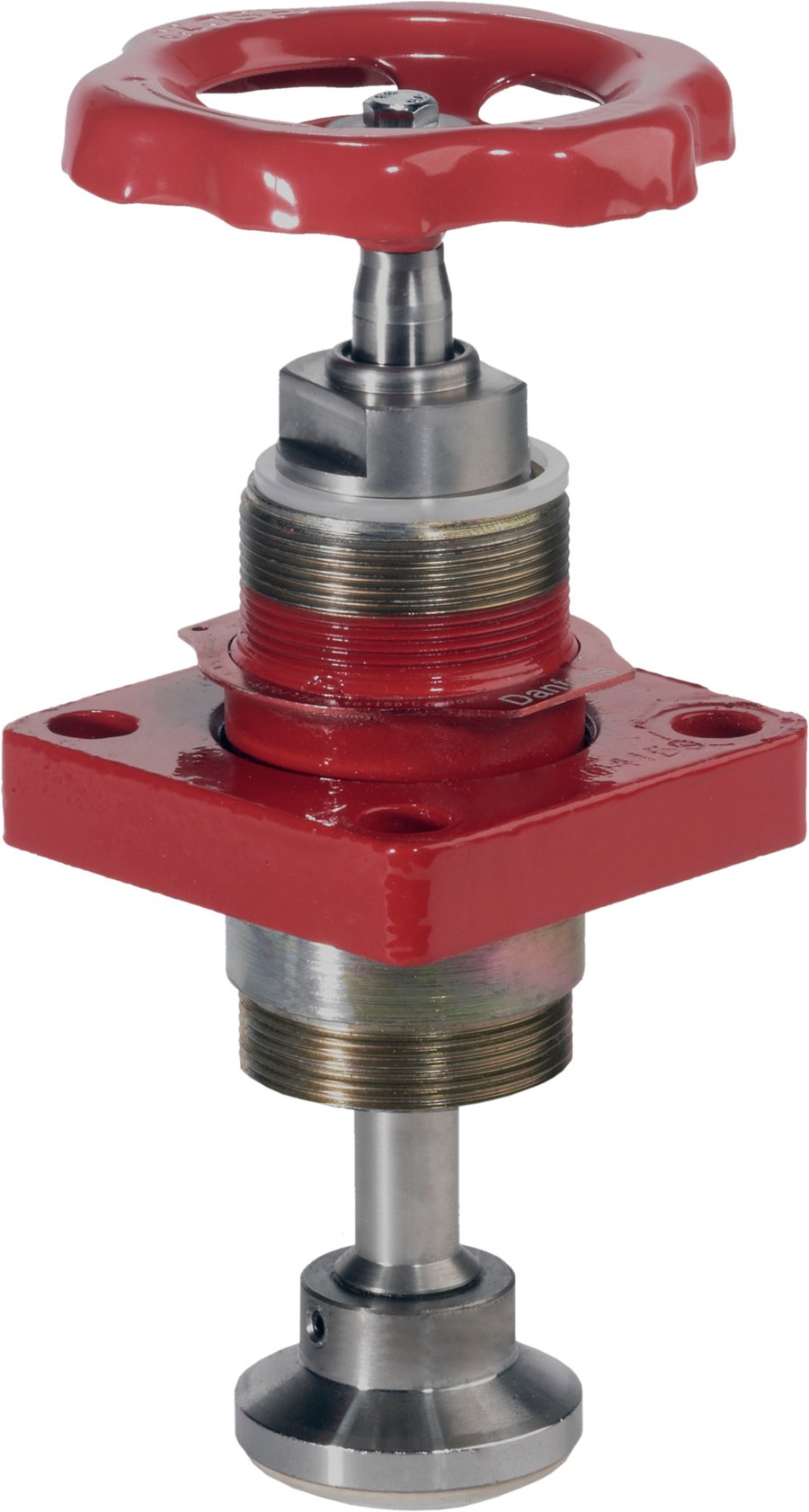

Danfoss SVA-S 15-20 function module (complete top part) with handwheel, fits 15-20 mm SVA-S shut-off valve, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 15-20 function module (complete top part) for the SVL Flexline SVA-S / SVA-L shut-off and regulating valve range, code 148B5277. The function module is the complete field-serviceable operating top part — bonnet, spindle, renewable seat and cone, gaskets and bolts — that mounts onto the matching SVA-S 15-20 mm valve housing (standard neck) to make up or repair a complete valve. One module covers the 15-20 mm nominal-size band (SVA-S 15 and SVA-S 20). Supplied with handwheel. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). The seat and cone are designed to close tightly and withstand high system pulsation and vibration, and the top part can be dismantled and serviced in line. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) industrial refrigeration systems.
Technical Specifications
- Type
- Function module (complete top part) for SVA-S 15-20 mm shut-off / regulating valve
- Code number
- 148B5277
- Series
- SVA-S (SVL Flexline)
- Type designation
- Top Complete (complete top part)
- Fits valve size range
- 15-20 mm (SVA-S 15 and SVA-S 20)
- Neck
- Standard
- Equipment
- Handwheel
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Product group
- Shut-off and regulating valves
- Approvals
- CE
- Compliance
- EU RoHS, China RoHS
- Weight
- net weight 0.999 kg
- Packing
- single pack (1 pc)
- EAN
- 5702428485944
- Net weight
- 0.999 Kilogram
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVA-S 15
Standards & Compliance
- Size / Series
- 15-20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline function module (complete top part). This code is the handwheel-equipped SVA-S top part covering the 15-20 mm size band (SVA-S 15 and SVA-S 20). Order to repair or convert an existing SVA-S housing in that size band, or together with the matching housing to make up a complete valve. SVA-S (standard neck) and SVA-L (long neck) modules are NOT interchangeable — confirm the valve series, nominal size and equipment (cap vs handwheel) before ordering. Cap = for infrequent operation; handwheel = for frequent throttling/operation.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVA-L 15-20 function module (complete top part) with cap, fits 15-20 mm SVA-L shut-off valve, 52 bar
148B5278
Danfoss
Danfoss SVA-L 15-20 function module (complete top part) with handwheel, fits 15-20 mm SVA-L shut-off valve, 52 bar
148B5279
Danfoss
Danfoss SVA-S 25-40 function module (complete top part) with cap, fits 25-40 mm SVA-S shut-off valve, 52 bar
148B5476
Danfoss
Danfoss SVA-S 25-40 function module (complete top part) with handwheel, fits 25-40 mm SVA-S shut-off valve, 52 bar
148B5477
Danfoss
Danfoss SVA-L 25-40 function module (complete top part) with cap, fits 25-40 mm SVA-L shut-off valve, 52 bar
148B5478
Danfoss
Danfoss SVA-L 25-40 function module (complete top part) with handwheel, fits 25-40 mm SVA-L shut-off valve, 52 bar
148B5479
Danfoss
Danfoss FIA 15 angleway strainer housing, 15 mm (1/2 in) butt weld, 52 bar, steel
148B5244
Danfoss

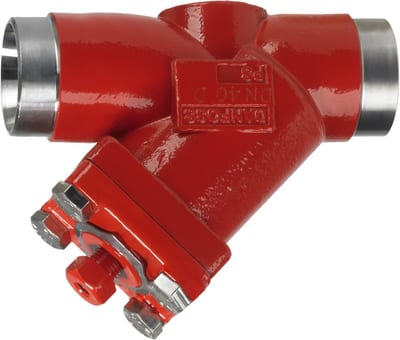

Danfoss FIA 20 straightway strainer housing, 20 mm (3/4 in) butt weld, 52 bar, steel
