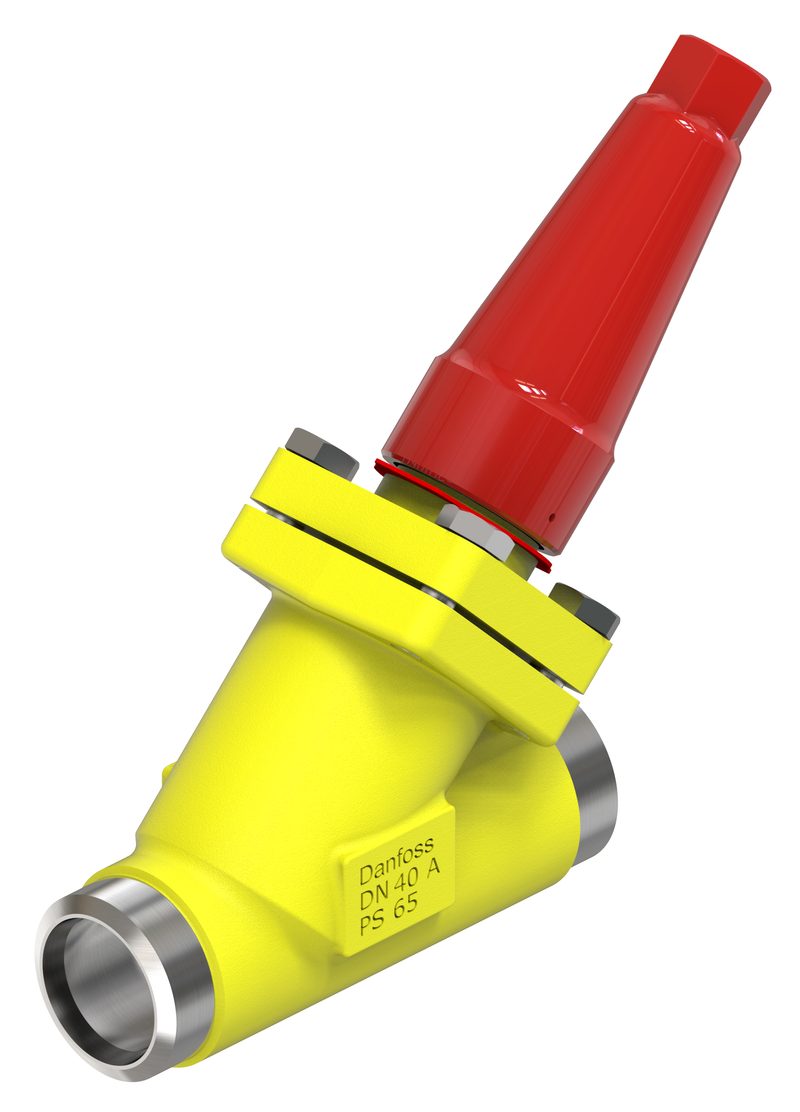

Danfoss SVA-S 40 straightway shut-off valve, 40 mm (1 1/2 in) butt weld, steel, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 40 straightway shut-off (stop) valve for industrial refrigeration, code 148B5059. Standard-neck steel body with butt weld connections to ASME B 36.10M Schedule 80, nominal size 40 mm (1 1/2 in). Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 31.6 m3/h (Cv 36.66 gal/min), bi-flow. The SVA shut-off valve has a renewable seat and cone designed to close tightly and withstand high system pulsation and vibration, and can be dismantled and repaired in line. Supplied with cap. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-S 40 shut-off valve (SVL Flexline)
- Code number
- 148B5059
- Series
- SVA-S (Standard neck)
- Direction
- Straightway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 80
- Nominal size
- 40 mm (1 1/2 in)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 31.6 m3/h (Cv 36.66 gal/min)
- Flow direction
- Bi-flow
- Equipment
- Cap
- Weight
- net weight 3.45 kg, gross weight 4.49 kg
- Approvals
- CE, EAC
- EAN
- 5702424056919
- Net weight
- 3.45 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Yellow
- Connection Code
- (2002:S80:40)
- Connection material
- Steel
- Cv value [gal/min]
- 36.66 gal/min
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/2 in
- Inlet connection size [mm]
- 40 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 31.6 m³/h
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Neck
- Standard
- Outlet connection size [in]
- 1 1/2 in
- Outlet connection size [mm]
- 40 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S stop valve. This code is the straightway SVA-S 40 with butt weld (ASME B 36.10M Schedule 80) ends and a cap. Confirm line size (40 mm / 1 1/2 in), connection type/standard, direction (straightway) and refrigerant before ordering. SVA-S and SVA-L share the same internal parts; the difference is neck length only.
