Danfoss SVA-S 50 straightway shut-off valve, 50 mm (2 in) butt weld, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 50 straightway shut-off (stop) valve for industrial refrigeration, code 148B5710. Standard-neck steel body with butt weld connections to EN 10220, nominal size 50 mm (2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 65 m3/h (Cv 75.4 gal/min), bi-flow. The SVA shut-off valve has a renewable seat and cone designed to close tightly and withstand high system pulsation and vibration, and can be dismantled and repaired in line. Supplied with handwheel. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-S 50 shut-off valve (SVL Flexline)
- Code number
- 148B5710
- Series
- SVA-S (Standard neck)
- Direction
- Straightway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 50 mm (2 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 65 m3/h (Cv 75.4 gal/min)
- Flow direction
- Bi-flow
- Equipment
- Handwheel
- Weight
- net weight 4.628 kg, gross weight 6.13 kg
- Approvals
- CE, EAC
- EAN
- 5702428467797
- Net weight
- 4.628 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D29:50)
- Connection material
- Steel
- Cv value [gal/min]
- 75.4 gal/min
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 in
- Inlet connection size [mm]
- 50 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 65 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 2 in
- Outlet connection size [mm]
- 50 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S stop valve. This code is the straightway SVA-S 50 with butt weld (EN 10220) ends and a handwheel. Confirm line size (50 mm / 2 in), connection type/standard, direction (straightway) and refrigerant before ordering. SVA-S and SVA-L share the same internal parts; the difference is neck length only.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVA-S 50 angleway shut-off valve, 50 mm (2 in) butt weld, steel, 52 bar
148B5720
Danfoss
Danfoss SVA-S 50 straightway shut-off valve, 50 mm (2 in) butt weld, steel, 65 bar
148B5060
Danfoss
Danfoss SVA-S 65 straightway shut-off valve, 65 mm (2 1/2 in) butt weld, steel, 52 bar
148B5810
Danfoss
Danfoss SVA-S 65 angleway shut-off valve, 65 mm (2 1/2 in) butt weld, steel, 52 bar
148B5820
Danfoss
Danfoss SVA-S SS 65 straightway shut-off valve, 65 mm (2 1/2 in) butt weld, stainless steel, 52 bar
148B5849
Danfoss
Danfoss SVA-S 50 function module (complete top part) with cap, fits 50 mm (2 in) SVA-S shut-off valve, 52 bar
148B5728
Danfoss
Danfoss SVA-S 50 function module (complete top part) with handwheel, fits 50 mm (2 in) SVA-S shut-off valve, 52 bar
148B5729
Danfoss

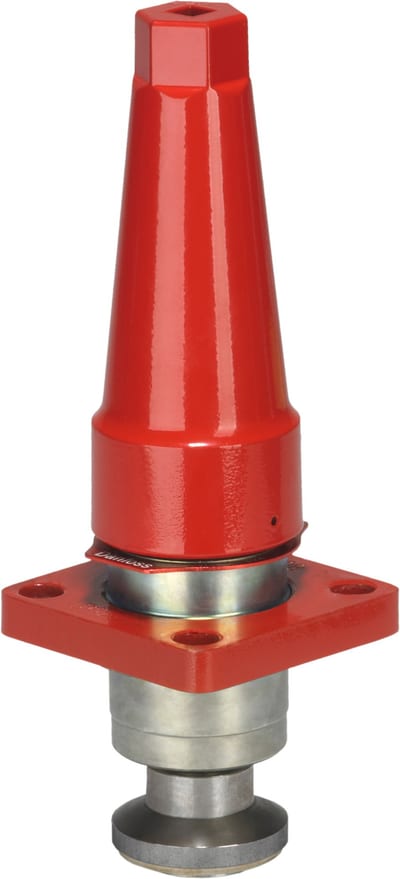

Danfoss SVA-S 65 function module (complete top part) with cap, fits 65 mm (2 1/2 in) SVA-S shut-off valve, 52 bar
