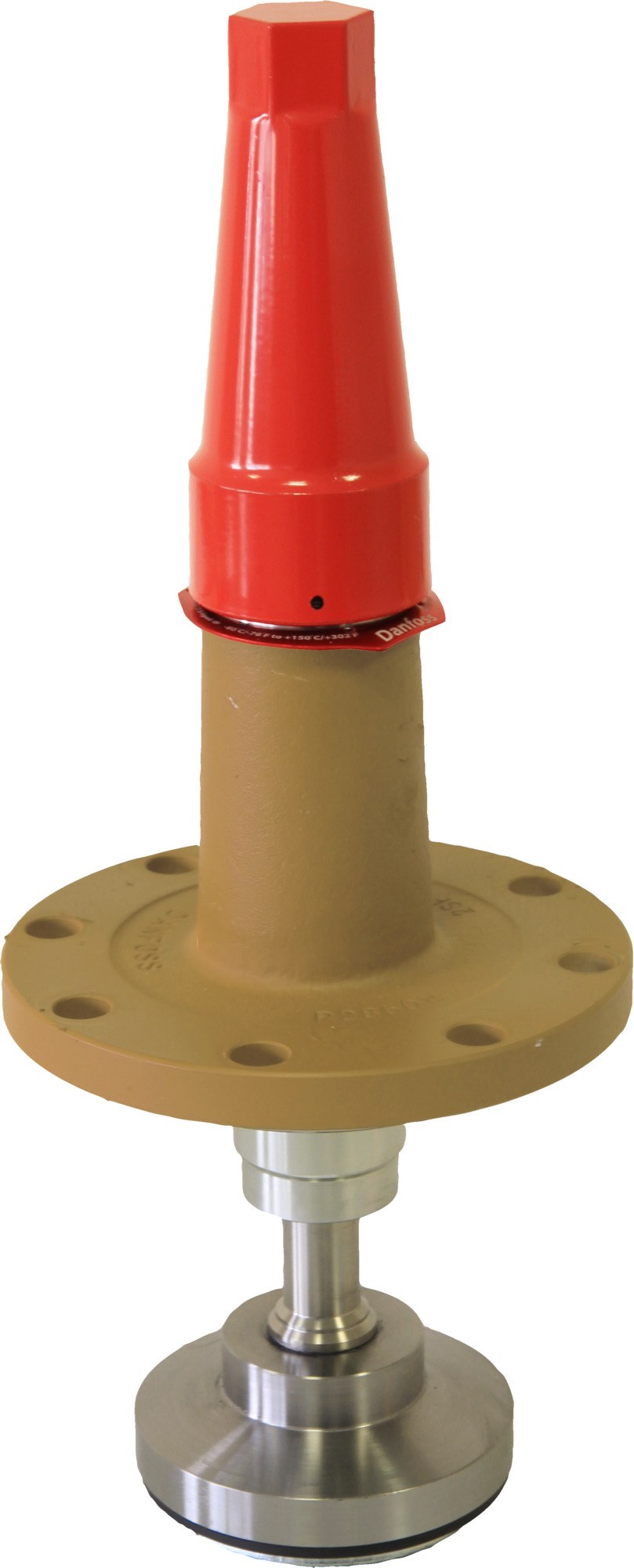

Danfoss SVA-S 100 function module (SVL Flexline top complete, cap, standard neck), 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 100 function module for the SVL Flexline industrial-refrigeration range, code 148B6657. The function module is the complete valve top part (spindle, seat, bonnet and cap) that converts an SVL multifunction valve body into a working SVA-S shut-off (stop) valve of the same nominal size, without re-welding the housing. This SKU is the standard-neck version fitted with a cap (no handwheel). Maximum working pressure 65 bar (943 psig); media temperature range -60 to 150 C (-76 to 302 F); for use with the SVA-S 100 valve body. Steel/refrigeration-grade construction; suits HCFC, HFC, R717 (ammonia) and R744 (CO2) systems. Order the matching SVL valve body separately if not already installed.
Technical Specifications
- Type
- Function module (SVL Flexline top complete), SVA-S 100
- Code number
- 148B6657
- Series
- SVL Flexline (shut-off and regulating valves)
- Function
- Complete valve top part — converts SVL body to SVA-S 100 shut-off (stop) valve
- Used for product
- SVA-S 100
- Neck
- Standard
- Equipment
- Cap
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Approvals
- CE
- EAN
- 5702428508230
- Net weight
- 7.162 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Type designation
- Top Complete
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline function module (complete top part). Fits the SVA-S 100 SVL multifunction valve body of the matching nominal size. Cap version has no handwheel; a handwheel version is a separate code. The function module sets the valve duty (here: shut-off) on a common welded body.
