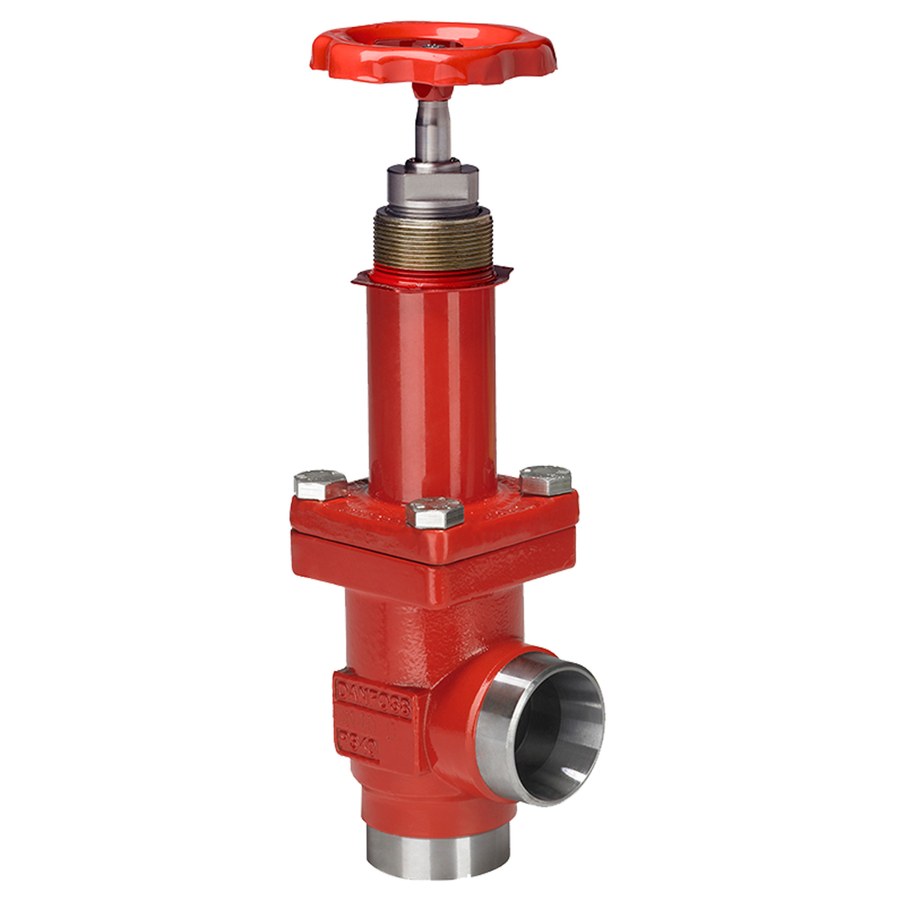

Danfoss SVA-L 32 angleway shut-off valve, 32 mm (1 1/4 in) Butt weld (EN 10220), steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-L 32 hand-operated shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, code 148B5540. The SVA-L is a manually-operated, globe-pattern stop valve used to isolate liquid, suction, hot-gas and oil lines. The angleway body has butt weld (en 10220) connections in 32 mm (1 1/4 in). Flow coefficient Kv 42.6 m3/h (Cv 49.2 gal/min). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Cold-resistant steel housing for HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform with a back-seating spindle for repacking under pressure; the cap can be exchanged for a hand wheel. SVA-L is the long version with a fixed hand wheel; SVA-S is the equivalent standard-cap version.
Technical Specifications
- Type
- SVA-L 32 (SVL Flexline shut-off valve)
- Code number
- 148B5540
- Series
- SVA-S / SVA-L (SVL Flexline)
- Function
- Hand-operated shut-off / stop valve (globe pattern)
- Nominal size
- 32 mm (1 1/4 in)
- Flow direction body
- Angleway
- Connection
- Butt weld (EN 10220)
- Housing material
- Steel (cold-resistant)
- Kv value
- 42.6 m3/h (Cv 49.2 gal/min)
- Spindle
- Back-seating, repackable under pressure; fixed hand wheel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1, 2
- Conformity assessment
- PED Category II (DN 32)
- Approvals
- CE, EAC
- EAN
- 5702428469654
- Net weight
- 3.777 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 49.42 gal/min
- Direction
- Angleway
- Equipment
- Handwheel
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 42.6 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Long
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-L shut-off valve. Select by nominal size (32 mm / 1 1/4 in), body (angleway) and connection standard (EN 10220). EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with REG-SA/SB regulating valves and SCA-X/CHV-X check valves; spare parts are common to the platform.
