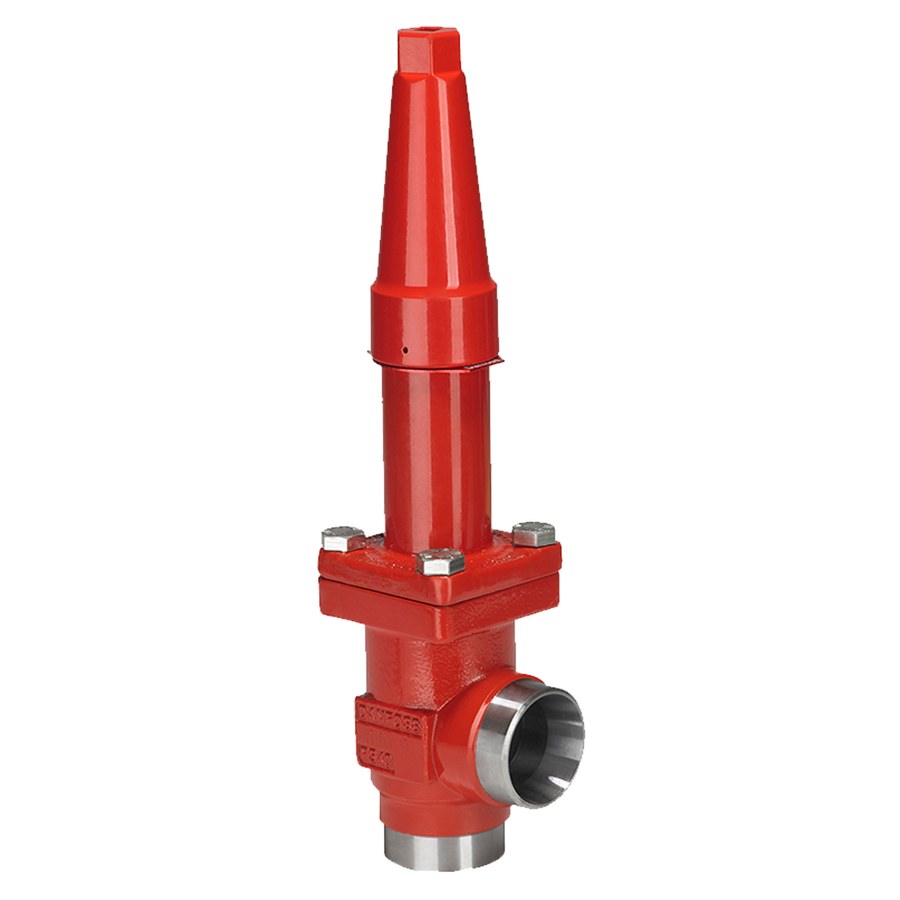

Danfoss SVA-L 20 angleway shut-off valve, 20 mm (3/4 in) socket weld, steel, 52 bar (code 148B5363)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L 20 angleway shut-off (stop) valve for industrial refrigeration, code 148B5363. Long-neck steel body with socket weld connections to ASME B 16.11, nominal size 20 mm (3/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 10 m3/h (Cv 11.6 gal/min), bi-flow. The SVA shut-off valve has a renewable seat and cone designed to close tightly and withstand high system pulsation and vibration, and can be dismantled and repaired in line. Supplied with cap. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B5363
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 16.11
- Standard size
- 20 mm
Compatibility
Danfoss SVL Flexline SVA-L stop valve. This code is the angleway SVA-L 20 with socket weld (ASME B 16.11) ends and a cap. Confirm line size (20 mm / 3/4 in), connection type/standard, direction (angleway) and refrigerant before ordering. SVA-S and SVA-L share the same internal parts; the difference is neck length only.
Approvals
