Danfoss SVA-S 32 angleway shut-off valve, 32 mm (1 1/4 in) npt screwed, steel, 52 bar (code 148B5525)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 32 angleway shut-off (stop) valve for industrial refrigeration, code 148B5525. Standard-neck steel body with npt screwed connections to ANSI/ASME B1.20.1, nominal size 32 mm (1 1/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 36 m3/h (Cv 41.76 gal/min), bi-flow. The SVA shut-off valve has a renewable seat and cone designed to close tightly and withstand high system pulsation and vibration, and can be dismantled and repaired in line. Supplied with cap. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SVA-S 32 shut-off valve (SVL Flexline)
- Code number
- 148B5525
- Series
- SVA-S (Standard neck)
- Direction
- Angleway
- Connection type
- NPT screwed
- Connection standard
- ANSI/ASME B1.20.1
- Nominal size
- 32 mm (1 1/4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 36 m3/h (Cv 41.76 gal/min)
- Flow direction
- Bi-flow
- Equipment
- Cap
- Weight
- net weight 2.624 kg, gross weight 3.498 kg
- Approvals
- CE, EAC
- EAN
- 5702428466899
- Net weight
- 2.624 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Internal/External
- Internal
- Connection material
- Steel
- Cv value [gal/min]
- 41.76 gal/min
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- NPT
- Kv value [m³/h]
- 36 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- NPT
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ANSI/ASME B1.20.1
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S stop valve. This code is the angleway SVA-S 32 with npt screwed (ANSI/ASME B1.20.1) ends and a cap. Confirm line size (32 mm / 1 1/4 in), connection type/standard, direction (angleway) and refrigerant before ordering. SVA-S and SVA-L share the same internal parts; the difference is neck length only.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVA-S 15 straightway shut-off valve, 15 mm (1/2 in) npt screwed, steel, 52 bar
148B5234
Danfoss
Danfoss SVA-S 20 straightway shut-off valve, 20 mm (3/4 in) npt screwed, steel, 52 bar
148B5334
Danfoss
Danfoss SVA-S 25 straightway shut-off valve, 25 mm (1 in) npt screwed, steel, 52 bar
148B5434
Danfoss
Danfoss SVA-L 15 angleway shut-off valve, 15 mm (1/2 in) butt weld, steel, 52 bar (code 148B5240)
Danfoss
Danfoss SVA-L 15 angleway shut-off valve, 15 mm (1/2 in) butt weld, steel, 52 bar (code 148B5241)
Danfoss
Danfoss SVA-L 20 angleway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar (code 148B5340)
Danfoss
Danfoss SVA-L 20 angleway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar (code 148B5341)
Danfoss

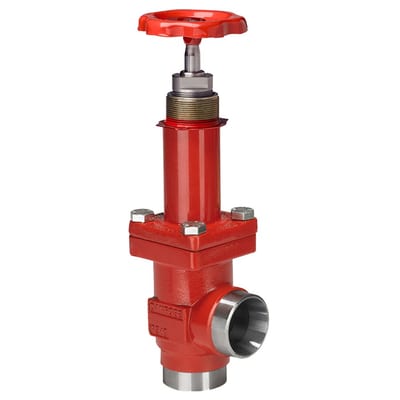

Danfoss SVA-L 25 angleway shut-off valve, 25 mm (1 in) butt weld, steel, 52 bar (code 148B5440)
