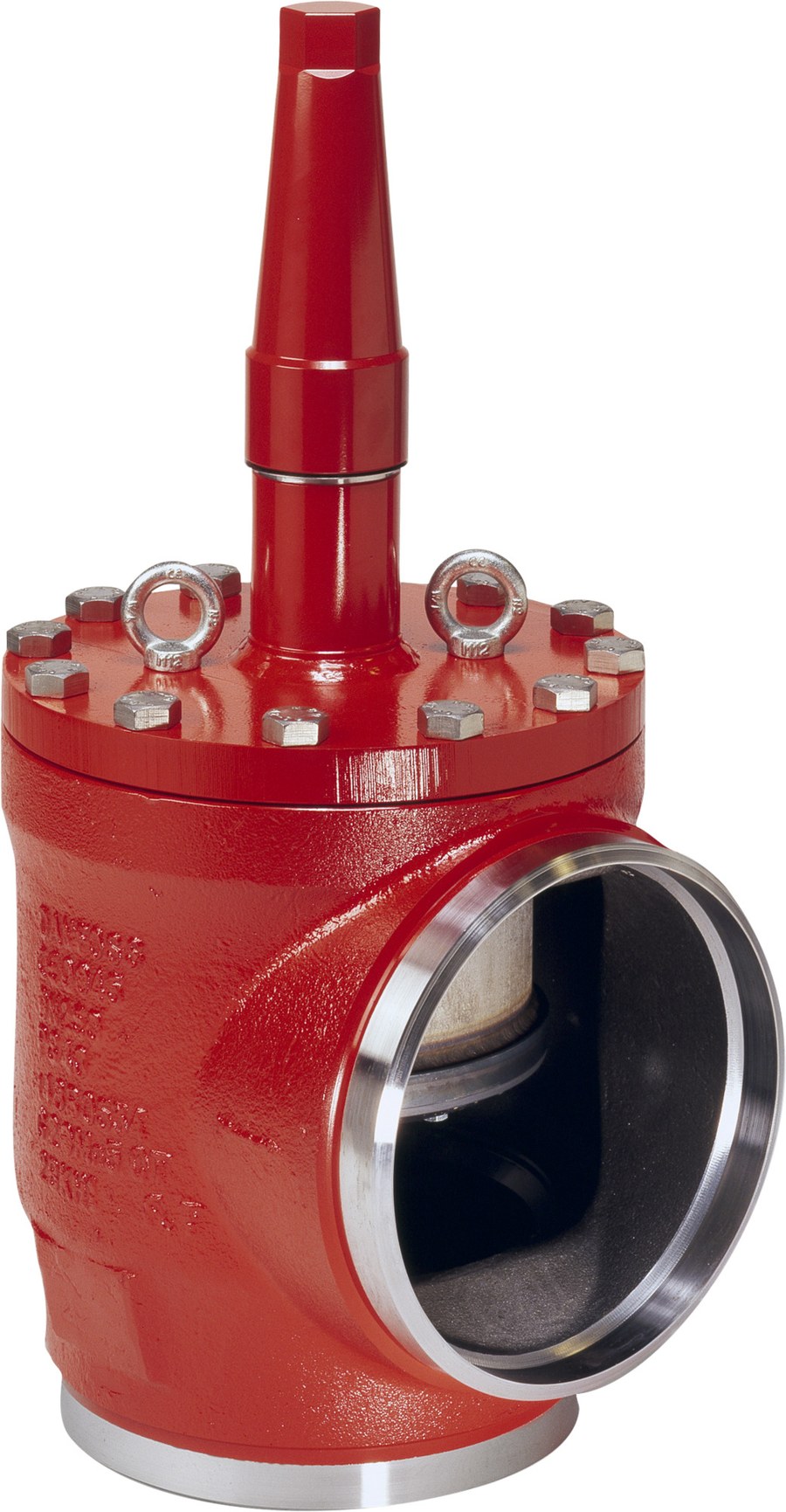

Danfoss SVA-DL 300 angleway shut-off valve, 300 mm (12 in) butt weld EN 10220, steel, 40 bar, with cap
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-DL 300 angleway shut-off (stop) valve for industrial refrigeration, code 148B3770. Low-temperature steel body with butt-weld connections to EN 10220, nominal size 300 mm (12 in). Maximum working pressure 40 bar (580 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 1610 m3/h (Cv 1867.6 gal/min). Delta Pressure Low (SVA-DL) is a two-step valve for pressure relief, designed with a restriction in the opening function (high differential pressure applied from the side port, reduced pressure from the bottom port). Both SVA-DL and SVA-DH have internal backseating, so the spindle seal can be replaced while the valve is still under pressure; the valve dismantles in line for inspection and repair. Supplied with cap. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) industrial refrigeration systems. PED category IV.
Technical Specifications
- Type
- SVA-DL 300 angleway shut-off valve
- Code number
- 148B3770
- Series
- SVA-DL (Delta Pressure Low)
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- EN 10220
- Nominal size
- 300 mm (12 in)
- Body material
- Steel (reddish-brown paint finish)
- Maximum working pressure
- 40 bar (580 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 1610 m3/h (Cv 1867.6 gal/min)
- Equipment
- Cap
- Weight
- net weight 164 kg, gross weight 208 kg
- PED category
- IV
- Approvals
- CE, EAC
- EAN
- 5702428179188
- Net weight
- 164 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Cv value [gal/min]
- 1867.6 gal/min
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 12 in
- Inlet connection size [mm]
- 300 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 1610 m³/h
- Max. Working Pressure [bar]
- 40 bar
- Max. Working Pressure [psig]
- 580 psig
- Outlet connection size [in]
- 12 in
- Outlet connection size [mm]
- 300 mm
- Outlet connection type
- Butt weld
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Delta Pressure Low
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 300 mm
- Material
- Steel
- Pressure Rating
- 40 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-DL 300 large-size angleway stop valve for industrial refrigeration headers. Confirm line size (300 mm / 12 in), connection standard (EN 10220), top equipment (cap), and Delta-Pressure variant (SVA-DL) before ordering: SVA-DL has a restriction in the opening function for two-step pressure relief, while SVA-DH is balanced for opening at any differential pressure. SVA-DH and SVA-DL share spindle/seat servicing in line.
