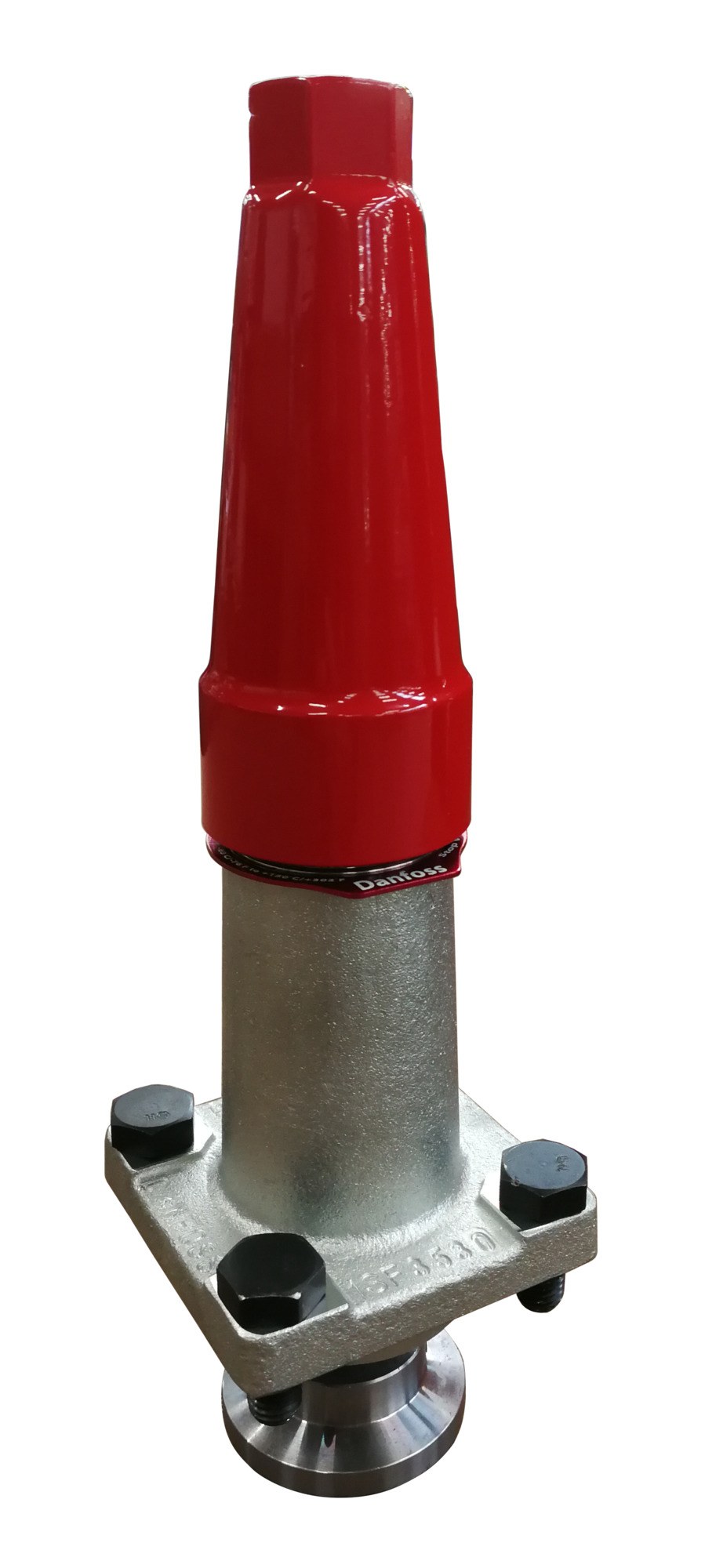

Danfoss SVA-65BT 65 function module (complete top part), 65 bar, for SVA-65BT 65 shut-off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-65BT 65 function module for the SVL Flexline range, code 148B6805. This is the complete top part (bonnet, spindle, cone and seat assembly with cap) that mounts onto the matching SVA-65BT 65 valve body to make a 65-bar shut-off (stop) valve. The Flexline design lets the function module be replaced or the valve duty changed without removing the soldered/welded body from the line. Rated to 65 bar (943 psig) with a media temperature range of 0 to 190 C (32 to 374 F), suiting higher-pressure and higher-temperature refrigeration and heat-pump duty. Cap operated; standard neck. Supplied as a single-pack complete top.
Technical Specifications
- Type
- SVA-65BT 65 (function module — complete top part)
- Code number
- 148B6805
- Series
- SVL Flexline (shut-off and regulating valves)
- Type designation
- Top Complete
- Function
- Complete top part / function module for SVA-65BT shut-off valve
- Fits body size
- SVA-65BT 65
- Equipment
- Cap
- Neck
- Standard
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- 0 to 190 C (32 to 374 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HCFC and HFC refrigerants
- CE mark
- Yes
- Approvals
- CE
- Packing format
- Single pack (1 pc)
- Net weight
- 3.8 kg
- EAN
- 5702424453855
- Product group
- Shut-off and regulating valves
- Approval
- CE
- China RoHS compliance
- Yes
- EU RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 190 °C
- Temperature range [°C] [min]
- 0 °C
- Temperature range [°F] [max]
- 374 °F
- Temperature range [°F] [min]
- 32 °F
- Used for product
- SVA-65BT 65
Standards & Compliance
- Size / Series
- SVA-65BT 65
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- 0 to 190 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVA-65BT function module (complete top part) for 65-bar SVL Flexline shut-off valves. Select by nominal size (65). The 65-bar BT top is a separate range from the 52-bar SVA-S/SVA-L function modules — confirm the body pressure rating before ordering. The same body accepts a matching-size function module so the valve can be overhauled without re-welding the line.
