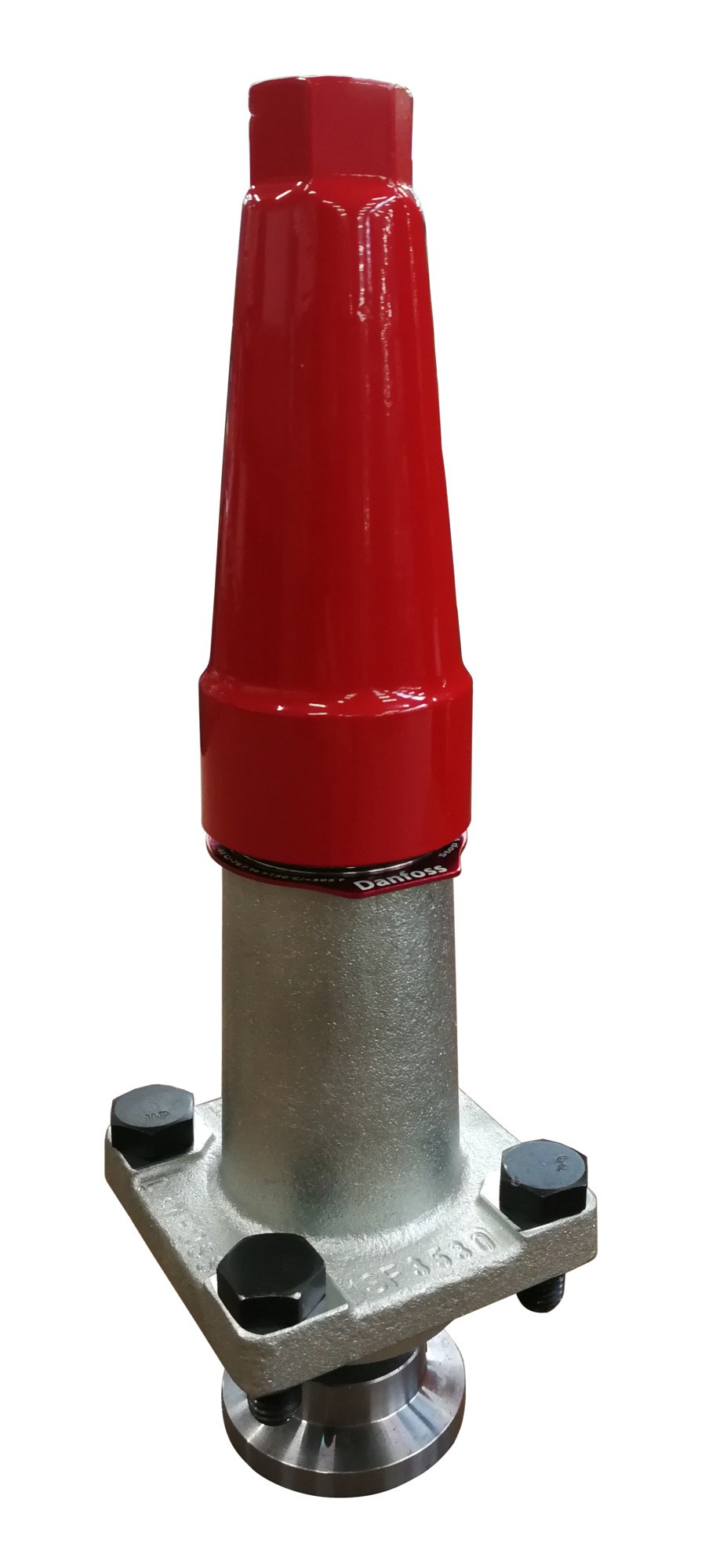

Danfoss SVA-65BT 50 function module (complete top part), 65 bar, for SVA-65BT 50 shut-off valve (code 148B6804)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-65BT 50 function module for the SVL Flexline range, code 148B6804. This is the complete top part (bonnet, spindle, cone and seat assembly with cap) that mounts onto the matching SVA-65BT 50 valve body to make a 65-bar shut-off (stop) valve. The Flexline design lets the function module be replaced or the valve duty changed without removing the soldered/welded body from the line. Rated to 65 bar (943 psig) with a media temperature range of 0 to 190 C (32 to 374 F), suiting higher-pressure and higher-temperature refrigeration and heat-pump duty. Cap operated; standard neck. Supplied as a single-pack complete top.
Specifications
- Part number
- 148B6804
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- 0 to 190 C
- Standard size
- SVA-65BT 50
Compatibility
Danfoss SVA-65BT function module (complete top part) for 65-bar SVL Flexline shut-off valves. Select by nominal size (50). The 65-bar BT top is a separate range from the 52-bar SVA-S/SVA-L function modules — confirm the body pressure rating before ordering. The same body accepts a matching-size function module so the valve can be overhauled without re-welding the line.
Approvals
