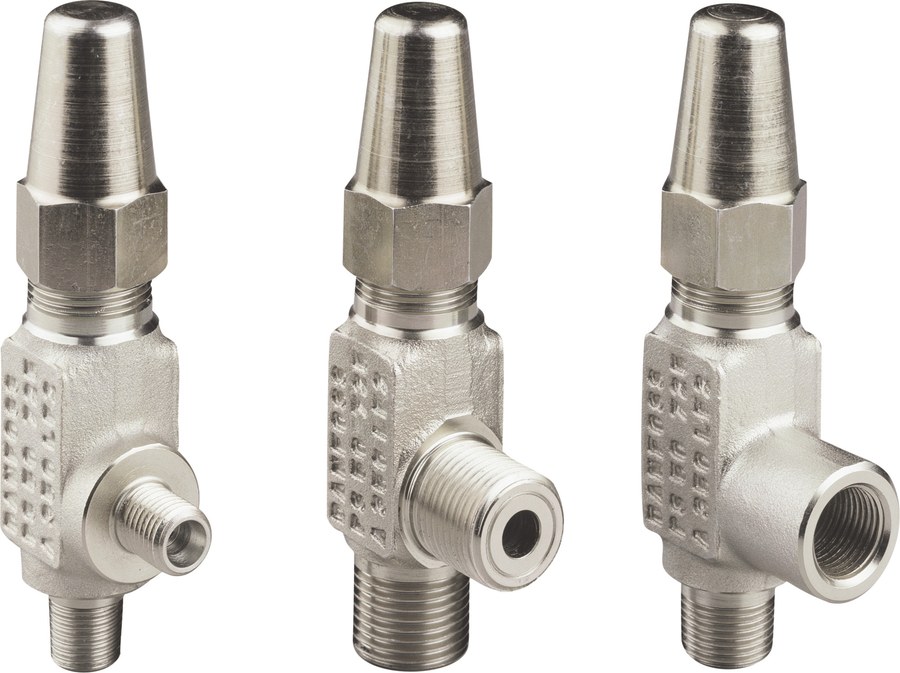

Danfoss SNV-SS stop needle valve, 3/8 in NPT male x 3/8 in NPT female, stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SNV-SS stop needle valve for industrial-refrigeration service, code 148B3750. The SNV series is a hand-operated stop/needle service valve used for gauge, purge, charging and isolation points on refrigeration plant; it has a sturdy back-seating (metal-to-metal) spindle, needs no specific flow direction (bi-flow) and gives favourable, throttleable flow characteristics. This SKU has 3/8 in NPT male x 3/8 in NPT female connections. Housing and bonnet are stainless steel, built to the Pressure Equipment Directive and the usual classification-authority requirements. Maximum working pressure 65 bar (943 psig); media temperature range -60 to 200 C (-76 to 392 F). Applicable to HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2). Connection thread standard ANSI/ASME B1.20.1. The stainless-steel SNV-SS suits corrosive duty and higher pressure/temperature service than the steel SNV-ST. Specifications per Danfoss store code 148B3750. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- SNV-SS stop needle valve
- Code number
- 148B3750
- Series
- SNV (stop / gauge needle valve, industrial refrigeration)
- Nominal connection size
- 3/8 in
- Connections
- 3/8 in NPT male x 3/8 in NPT female
- Connection standard
- ANSI/ASME B1.20.1
- Body / bonnet material
- Stainless steel
- Seat
- Back-seating, metal to metal
- Flow
- Bi-flow (no specified flow direction)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 200 C (-76 to 392 F)
- Applicable media
- HCFC, non-flammable HFC, R717 (ammonia), R744 (CO2)
- Fluid groups
- 1, 2
- Conformity assessment
- PED Article 4, paragraph 3 (sound engineering practice)
- Approvals
- EAC; TUV-tested per Danfoss code page
- Net weight
- 0.42 kg
- EAN
- 5702428179294
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Colour Paint
- Cr3 / TLP
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Fluid Group
- 1
- Inlet connection size [in]
- 3/8
- Inlet connection type
- NPT
- Inlet Internal/External
- External
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Outlet connection size [in]
- 3/8
- Outlet connection type
- NPT
- Outlet Internal/External
- Internal
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 3/8 in
- Material
- Stainless steel
- Thread Standard
- ANSI/ASME B1.20.1
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 200 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SNV stop/gauge needle valve. Select by connection type and size (3/8 in NPT male x 3/8 in NPT female) and by housing material — SNV-ST is low-temperature steel (52 bar / -60..150 C) and SNV-SS is stainless steel (65 bar / -60..200 C) for corrosive or higher-duty service. Each connection combination is a separate order code; confirm port type (NPT male/female) and size before ordering. Compatible with HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) refrigeration systems.
