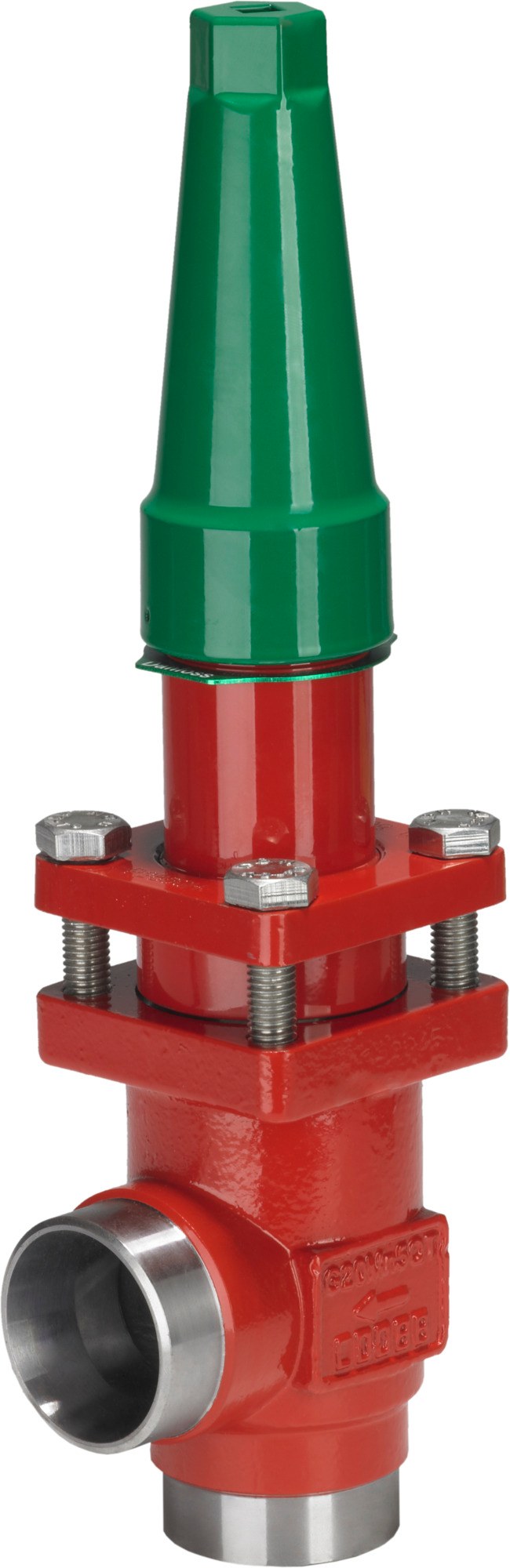

Danfoss SCA-X 40 angleway check and stop valve, 40 mm (1 1/2 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 40 check and stop valve for the SVL Flexline industrial-refrigeration range, store code 148B5608, angleway steel body. The SCA-X combines a check (non-return) function with a hand shut-off (stop) function in one body, fitted with a cap; it allows flow one way, closes on reverse flow and can be manually closed for isolation and service. Nominal size 40 mm (1 1/2 in), butt weld connections to EN 10220; flow coefficient Kv 30 m3/h. Steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II (DN 40). Specifications per Danfoss store code 148B5608.
Technical Specifications
- Type
- SCA-X 40 check and stop valve (SVL Flexline) Code number: 148B5608 Nominal size: 40 mm (1 1/2 in) Flow direction body: Angleway Connection: butt weld both ends, EN 10220 Function: check / non-return + manual shut-off Top equipment: Cap Flow coefficient Kv: 30 m3/h minimum opening pressure: 0.04 bar Housing material: steel Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils Conformity assessment: PED 2014/68/EU, Category II (DN 40) Approvals: CE EAN: 5702428472937 Net weight: 3.55 Kilogram Product group: Check valves Approval: CE CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2001:D26:40) Connection material: Steel Connection standard: EN 10220 Cv value [gal/min]: 34.8 gal/min Direction: Angleway Equipment: Cap EU RoHS compliance: Yes Flow direction indicator: Embossed 1-way arrow Fluid Group: 1 Inlet connection size [in]: 1 1/2 in Inlet connection size [mm]: 40 mm Inlet connection type: Butt weld Kv value [m³/h]: 30 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.62 psi Outlet connection size [in]: 1 1/2 in Outlet connection size [mm]: 40 mm Outlet connection type: Butt weld PED category: II REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F Valve version: Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline SCA-X 40. SCA-X adds a manual stop to the check function. Select by flow direction (angleway) and connection (EN 10220). Shares the SVL Flexline platform with SVA-S/SVA-L shut-off valves, REG regulating valves and FIA strainers of the same nominal size.
