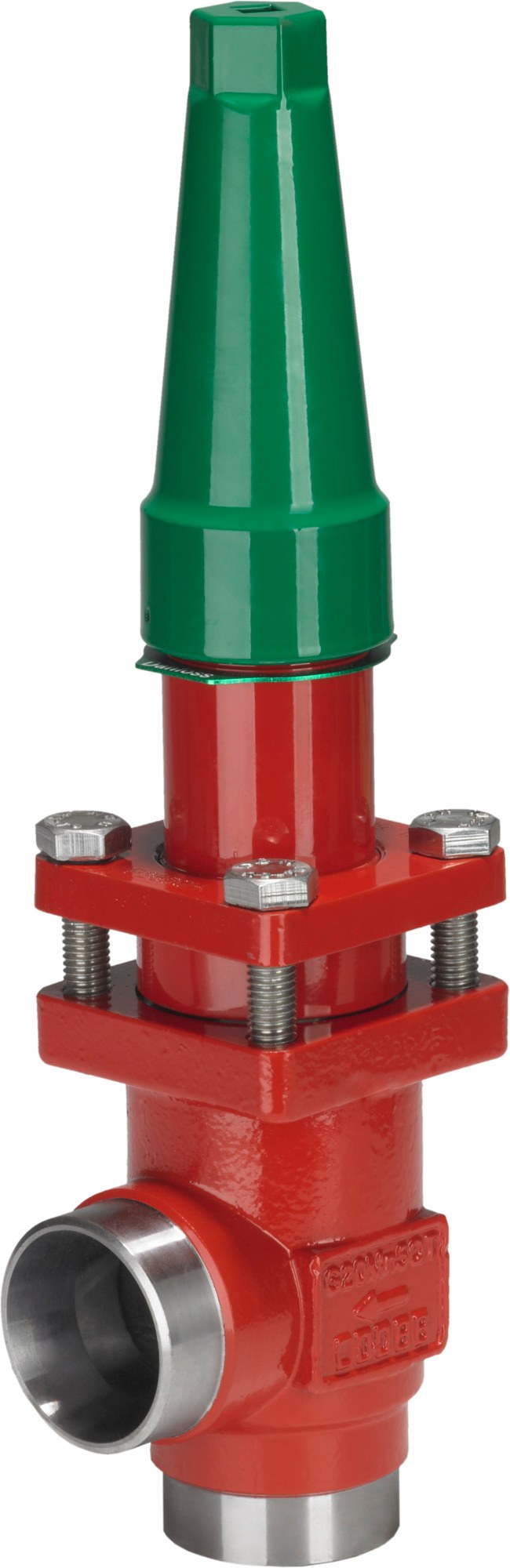

Danfoss SCA-X 15 angleway stop/check valve, 15 mm (1/2 in) butt weld EN 10220, 52 bar, steel

Danfoss SCA-X 15 combined stop and check valve for the SVL Flexline industrial-refrigeration range, code 148B5208. The SCA-X performs two functions in one body: it acts as a check (non-return) valve to prevent reverse flow, and as a hand stop valve that can be closed to isolate the line for service. This SKU is the angleway body in 15 mm (1/2 in) butt-weld connections to EN 10220. Flow coefficient Kv 8 m3/h (Cv 9.3 gal/min); minimum opening (cracking) pressure 0.04 bar (0.62 psi). Steel housing rated 52 bar (754 psig) maximum working pressure, media temperature -60 to 150 C (-76 to 302 F). An embossed one-way flow arrow on the body marks the permitted flow direction. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform — the complete top part is interchangeable across the SVA-S/SVA-L, REG-SA/REG-SB and FIA functions.

Type

SCA-X 15 (SVL Flexline stop/check valve) Code number: 148B5208 Series: SCA-X (SVL Flexline) Function: Combined check (non-return) and hand stop valve Nominal size: 15 mm (1/2 in) Flow direction body: Angleway Connection: Butt weld (EN 10220) Housing material: Steel Kv value: 8 m3/h (Cv 9.3 gal/min) minimum opening pressure: 0.04 bar (0.62 psi) Flow indicator: Embossed one-way arrow Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: HCFC, HFC, R717 (ammonia), R744 (CO2) Fluid groups: 1, 2 Conformity assessment: PED Article 4, paragraph 3 (sound engineering practice) Approvals: CE Net weight: 1.75 kg EAN: 5702428472623 Product group: Check valves Approval: LLC CDC EURO-TYSK CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2001:D23:15) Connection material: Steel Connection standard: EN 10220 Cv value [gal/min]: 9.3 gal/min Direction: Angleway Equipment: Cap EU RoHS compliance: Yes Flow direction indicator: Embossed 1-way arrow Fluid Group: 1 Inlet connection size [in]: 1/2 in Inlet connection size [mm]: 15 mm Inlet connection type: Butt weld Kv value [m³/h]: 8 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.62 psi Outlet connection size [in]: 1/2 in Outlet connection size [mm]: 15 mm Outlet connection type: Butt weld PED category: Art. 4, par. 3 REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F Valve version: Standard version

Size / Series

15 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
