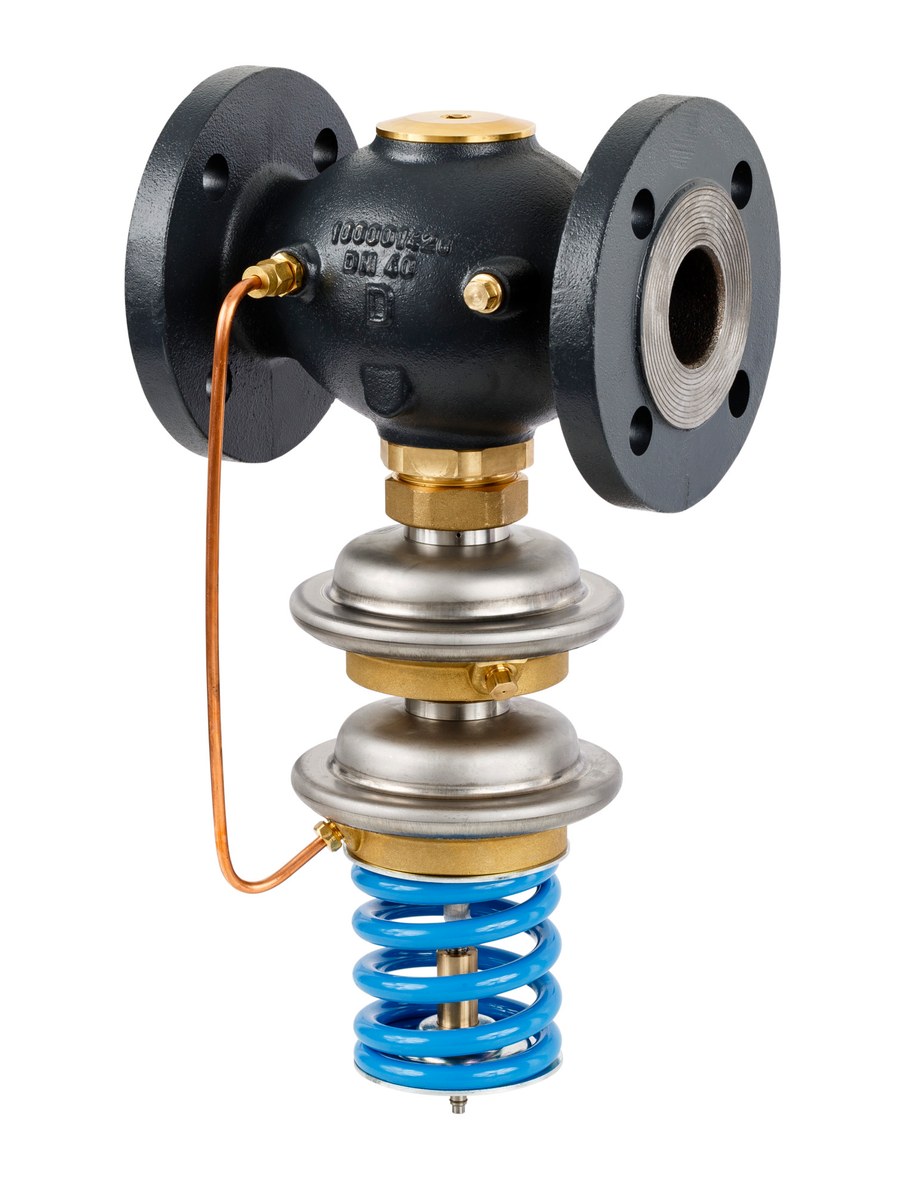

Danfoss SAVD safety pressure-reduction controller, PN 25, DN 50, kVS 25 m³/h, setting 2 – 8 bar, flange, free mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SAVD (003H6977) — self-acting safety pressure-reduction controller, PN 25, DN 50, free mounting, for district heating and central-heating circuits. The SAVD is a self-acting safety pressure-reduction controller that requires no auxiliary energy: it reduces and limits the downstream pressure, closing on rising outlet pressure, using a control valve and a spring-loaded actuator diaphragm. As a safety controller (SAV pressure-reduction) it provides the self-acting overpressure protection required for district-heating substations, independent of any electric control. kVS 25 m³/h; adjustable pressure setting range 2 – 8 bar; maximum differential pressure 16 bar. Medium temperature 2–150 °C; leakage 0.05% of kVS (IEC 534); Valve body ductile iron EN-GJS-400-18-LT (GGG 40.3), valve seat stainless steel 1.4571, valve cone dezincing free brass CuZn36Pb2As, actuator diaphragm EPDM. Connection flange PN 25. OEM P/N 003H6977, EAN 5710104031262. Technical data quoted verbatim from store.danfoss.com (code 003H6977).
Technical Specifications
- Code number
- 003H6977
- Type
- SAVD
- Function
- Safety press. reduction controller (SAV)
- Product group
- Pressure and flow controllers
- Description
- Self-acting safety pressure-reduction controller (district heating), adjustable setting, free mounting
- Valve size
- DN 50
- Pressure class
- PN 25
- kVS value
- 25 m³/h
- Connection
- flange PN 25
- Pressure setting range
- 2 – 8 bar (adjustable)
- Max. differential pressure
- 16 bar
- PN alternative (safety function VSP)
- PN 16
- Application
- District Heating
- Medium
- District heating/cooling circulation water / glycolic water up to 30% (pH 7–10)
- Medium temperature
- 2 – 150 °C
- Leakage (IEC 534)
- 0.05% of kVS
- Mounting version
- Free
- Stem position
- Normally open
- Valve body
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve seat
- Stainless steel, mat. No. 1.4571
- Valve cone
- Dezincing free brass CuZn36Pb2As
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 17.801 Kilogram
- Gross weight
- 17.801 Kilogram
- Packed volume
- 28.265 Liter
- EAN
- 5710104031262
- HS code
- 8481.80
Standards & Compliance
- Material
- Valve body ductile iron EN-GJS-400-18-LT (GGG 40.3); valve seat stainless steel 1.4571; valve cone dezincing free brass CuZn36Pb2As; actuator diaphragm EPDM
- Pressure Rating
- PN 25 (max. differential pressure 16 bar)
- Temperature Range
- 2 – 150 °C (medium)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SAVD for DN 50 district-heating circuits, PN 25, free mounting. Size by the design flow (kVS 25 m³/h) and set the reduced-pressure setpoint within 2 – 8 bar. Confirm the connection (flange PN 25) and pressure class (PN 25) against the pipework. Where the local code requires certified overpressure protection (SÜV/SAV), the SAVD provides it self-actingly. Genuine Danfoss part — specify order code 003H6977.
