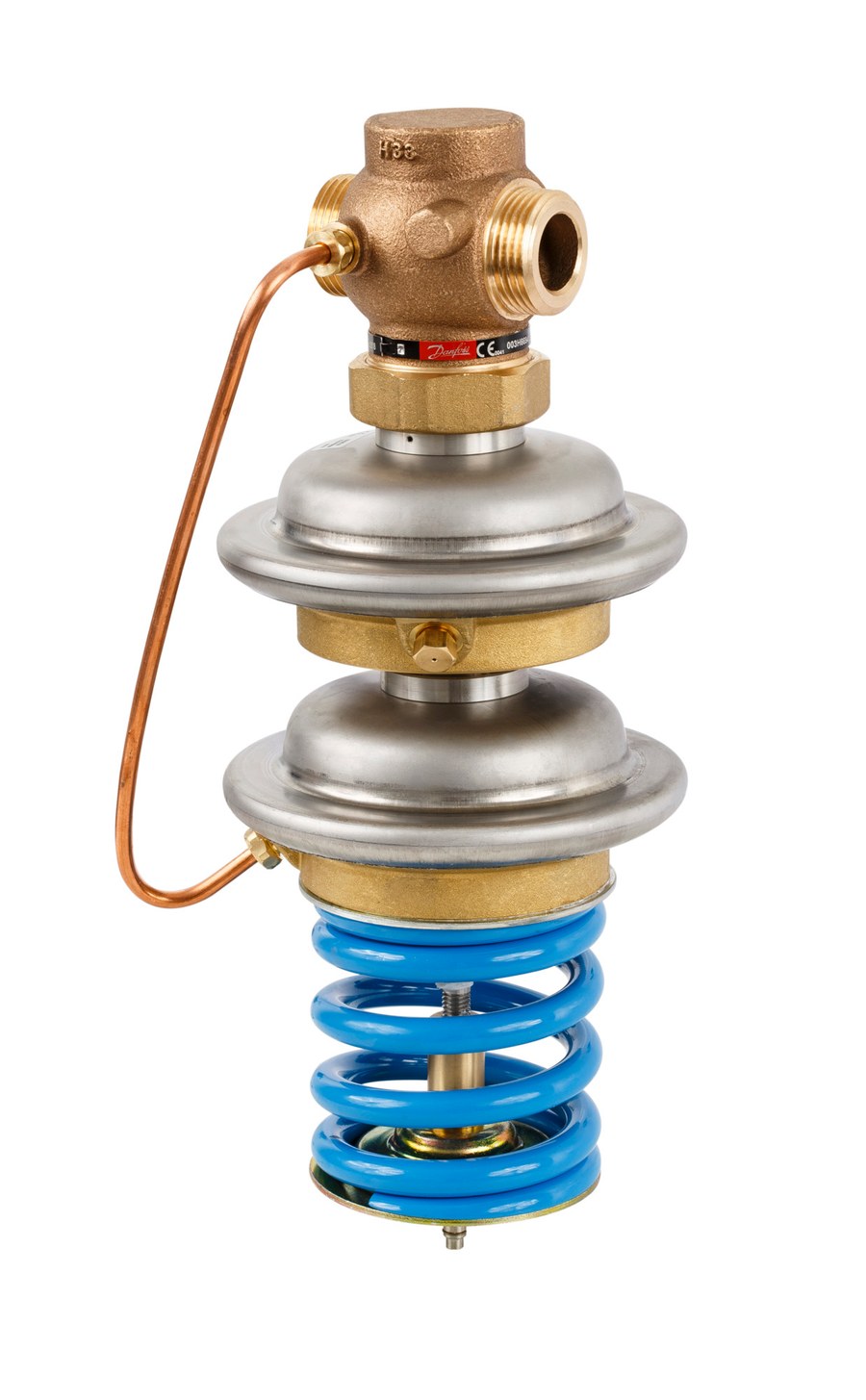

Danfoss SAVD safety pressure-reduction controller, PN 25, DN 50, kVS 20 m³/h, setting 2 – 8 bar, external thread G 2 1/2 A, free mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SAVD (003H6974) — self-acting safety pressure-reduction controller, PN 25, DN 50, free mounting, for district heating and central-heating circuits. The SAVD is a self-acting safety pressure-reduction controller that requires no auxiliary energy: it reduces and limits the downstream pressure, closing on rising outlet pressure, using a control valve and a spring-loaded actuator diaphragm. As a safety controller (SAV pressure-reduction) it provides the self-acting overpressure protection required for district-heating substations, independent of any electric control. kVS 20 m³/h; adjustable pressure setting range 2 – 8 bar; maximum differential pressure 16 bar. Medium temperature 2–150 °C; leakage 0.05% of kVS (IEC 534); Valve body ductile iron EN-GJS-400-18-LT (GGG 40.3), valve seat stainless steel 1.4571, valve cone dezincing free brass CuZn36Pb2As, actuator diaphragm EPDM. Connection external thread G 2 1/2 A (ISO 228/1). OEM P/N 003H6974, EAN 5710104031231. Technical data quoted verbatim from store.danfoss.com (code 003H6974).
Technical Specifications
- Code number
- 003H6974
- Type
- SAVD
- Function
- Safety press. reduction controller (SAV)
- Product group
- Pressure and flow controllers
- Description
- Self-acting safety pressure-reduction controller (district heating), adjustable setting, free mounting
- Valve size
- DN 50
- Pressure class
- PN 25
- kVS value
- 20 m³/h
- Connection
- external thread G 2 1/2 A (ISO 228/1)
- Pressure setting range
- 2 – 8 bar (adjustable)
- Max. differential pressure
- 16 bar
- PN alternative (safety function VSP)
- PN 16
- Application
- District Heating
- Medium
- District heating/cooling circulation water / glycolic water up to 30% (pH 7–10)
- Medium temperature
- 2 – 150 °C
- Leakage (IEC 534)
- 0.05% of kVS
- Mounting version
- Free
- Stem position
- Normally open
- Valve body
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve seat
- Stainless steel, mat. No. 1.4571
- Valve cone
- Dezincing free brass CuZn36Pb2As
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Net weight
- 10.206 Kilogram
- Gross weight
- 10.545 Kilogram
- Packed volume
- 30.625 Liter
- EAN
- 5710104031231
- HS code
- 8481.80
Standards & Compliance
- Material
- Valve body ductile iron EN-GJS-400-18-LT (GGG 40.3); valve seat stainless steel 1.4571; valve cone dezincing free brass CuZn36Pb2As; actuator diaphragm EPDM
- Thread Standard
- ISO 228/1
- Pressure Rating
- PN 25 (max. differential pressure 16 bar)
- Temperature Range
- 2 – 150 °C (medium)
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SAVD for DN 50 district-heating circuits, PN 25, free mounting. Size by the design flow (kVS 20 m³/h) and set the reduced-pressure setpoint within 2 – 8 bar. Confirm the connection (external thread G 2 1/2 A (ISO 228/1)) and pressure class (PN 25) against the pipework. Where the local code requires certified overpressure protection (SÜV/SAV), the SAVD provides it self-actingly. Genuine Danfoss part — specify order code 003H6974.
Product Documentation
More from Danfoss
Danfoss
Danfoss SAVD safety pressure-reduction controller, PN 25, DN 32, kVS 12.5 m³/h, setting 2 – 8 bar, flange, free mounting
003H6975
Danfoss
Danfoss SAVD safety pressure-reduction controller, PN 25, DN 40, kVS 20 m³/h, setting 2 – 8 bar, flange, free mounting
003H6976
Danfoss

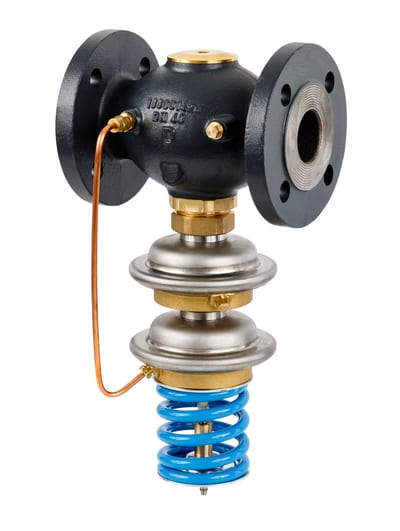

Danfoss SAVD safety pressure-reduction controller, PN 25, DN 50, kVS 25 m³/h, setting 2 – 8 bar, flange, free mounting
003H6977
Danfoss

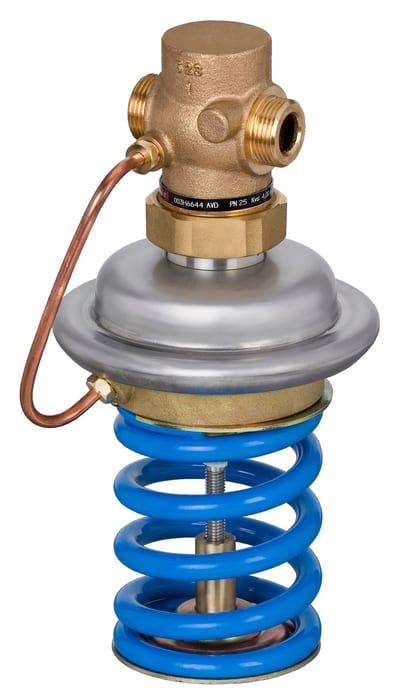

Danfoss AVD pressure-reduction controller, PN 25, DN 15, kVS 0.4 m³/h, setting 3 – 12 bar, external thread G 3/4 A, flow mounting
