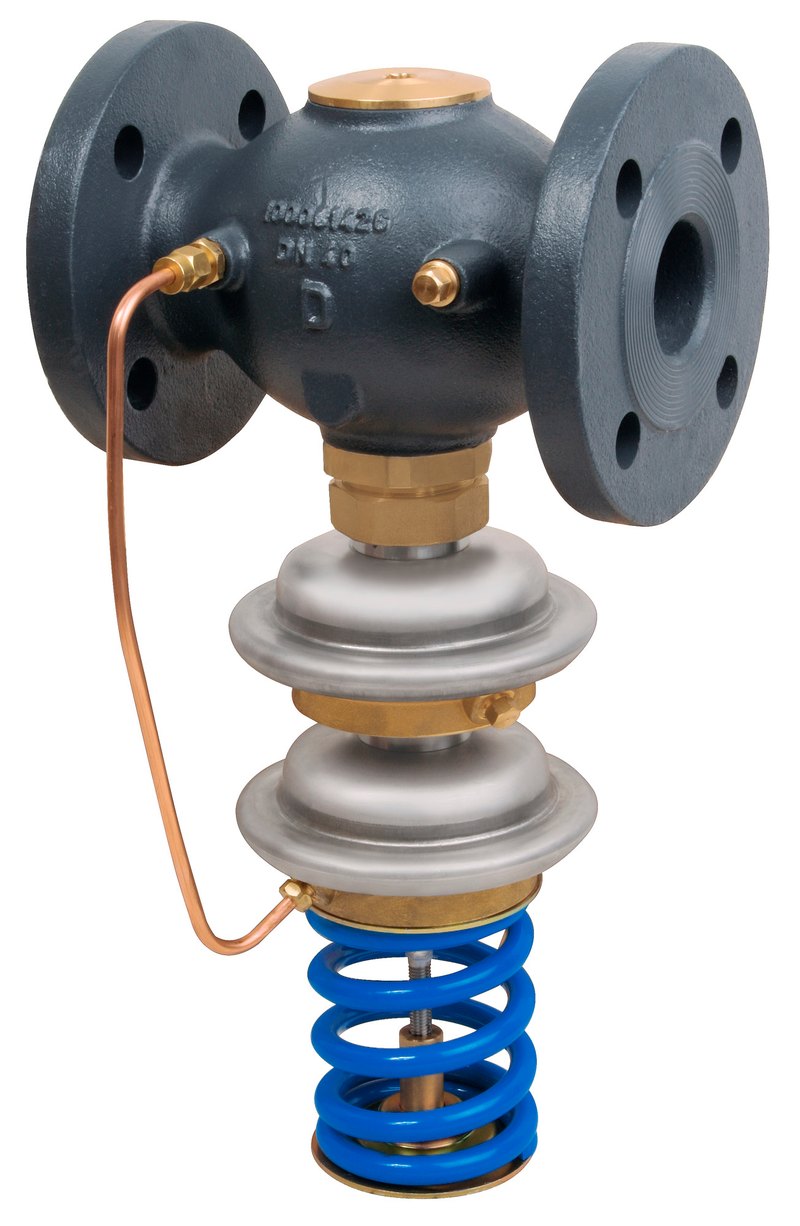

Danfoss SAVA safety pressure relief controller, PN 25, DN 32, Kvs 12.5 m³/h, 3 – 11 bar setting, flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SAVA (003H6690) — self-acting safety pressure relief controller, PN 25, DN 32, for district heating and central heating systems. The SAVA is a safety pressure relief controller that needs no external power or control signal; the setpoint is set on the actuator spring and the reduced/relieved pressure is sensed through an impulse line to the control diaphragm. It is normally open in standby and opens (as a bypass) when the pressure upstream rises above the setpoint, discharging flow to relieve and limit the over-pressure; when the pressure falls back it re-closes. Pressure setting range 3 – 11 bar adjustable; Kvs 12.5 m³/h; maximum differential-pressure range 16 bar; media temperature 2–150 °C; cavitation factor z ≥ 0.6; seat leakage 0.05 % Kvs (IEC 60534). Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone dezincing-free brass CuZn36Pb2As; seat stainless steel 1.4571; control diaphragm EPDM. Flange connection, PN 25 (mating flanges, gaskets and bolts ordered separately). Media: district heating/cooling circulation water (glycolic water up to 30%), pH 7–10. Mounting version Bypass; stem position Normally closed. OEM P/N 003H6690. EAN 5702421542118. Technical data quoted verbatim from store.danfoss.com (code 003H6690).
Technical Specifications
- Code number
- 003H6690
- Type
- SAVA
- Product group
- Pressure and flow controllers (safety pressure controller)
- Function
- Self-acting safety pressure relief controller (SÜV) — normally closed, opens on rising pressure to relieve/limit over-pressure
- Valve size
- DN 32
- Pressure class
- PN 25
- Connection
- Flange, PN 25
- Kvs value
- 12.5 m³/h
- Pressure setting range
- 3 – 11 bar (adjustable)
- Max. differential pressure range
- 16 bar
- Media temperature
- 2 – 150 °C
- Media pH
- 7 – 10
- Cavitation factor z
- ≥ 0.6
- Seat leakage rate
- 0.05 % Kvs (IEC 60534)
- Mounting version
- Bypass
- Stem position
- Normally closed
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water (glycolic water up to 30%)
- Valve body material
- Ductile iron EN-GJS-400-18-LT (GGG 40.3)
- Valve cone material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Stainless steel, mat. No. 1.4571
- Actuator diaphragm
- EPDM
- EU RoHS compliance
- Yes with exemptions (6(c))
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- China RoHS
- Out of scope
- Net weight
- 14.63 kg
- Gross weight
- 14.63 kg
- EAN
- 5702421542118
- HS code
- 8481.80
Standards & Compliance
- Material
- Valve body Ductile iron EN-GJS-400-18-LT (GGG 40.3); valve cone dezincing-free brass CuZn36Pb2As; seat stainless steel, mat. No. 1.4571; control diaphragm + DP sealing EPDM
- Pressure Rating
- PN 25 (max. differential-pressure range 16 bar)
- Temperature Range
- 2 to 150 °C (district heating/cooling water); glycolic water up to 30%
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SAVA for DN 32 district-heating/central-heating circuits at PN 25 where automatic over-pressure protection is required by relieving (bypassing) excess pressure. Set the relief setpoint within 3 – 11 bar; for a different band use the lower-range SAVA. Size the valve by the design flow against Kvs 12.5 m³/h. Confirm the connection (Flange, PN 25) and pressure class (PN 25) match the pipework; order the mating flanges/gaskets/bolts separately. Maximum differential-pressure range 16 bar, media temperature up to 150 °C. For pressure REDUCTION use the SAVD; for combined differential-pressure and flow control use the AVPQ.
Product Documentation
More from Danfoss
Danfoss
Danfoss SAVA safety pressure relief controller, PN 25, DN 40, Kvs 20 m³/h, 3 – 11 bar setting, flange
003H6691
Danfoss
Danfoss SAVA safety pressure relief controller, PN 25, DN 50, Kvs 25 m³/h, 3 – 11 bar setting, flange
003H6692
Danfoss

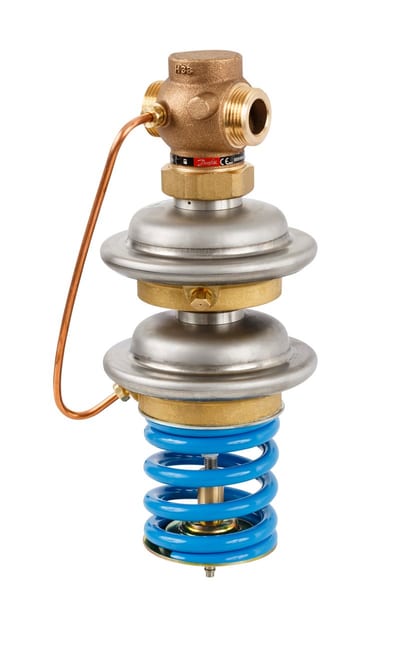

Danfoss SAVD safety pressure reduction controller, PN 25, DN 15, Kvs 4 m³/h, 1 – 5 bar setting, external thread G 3/4 A
