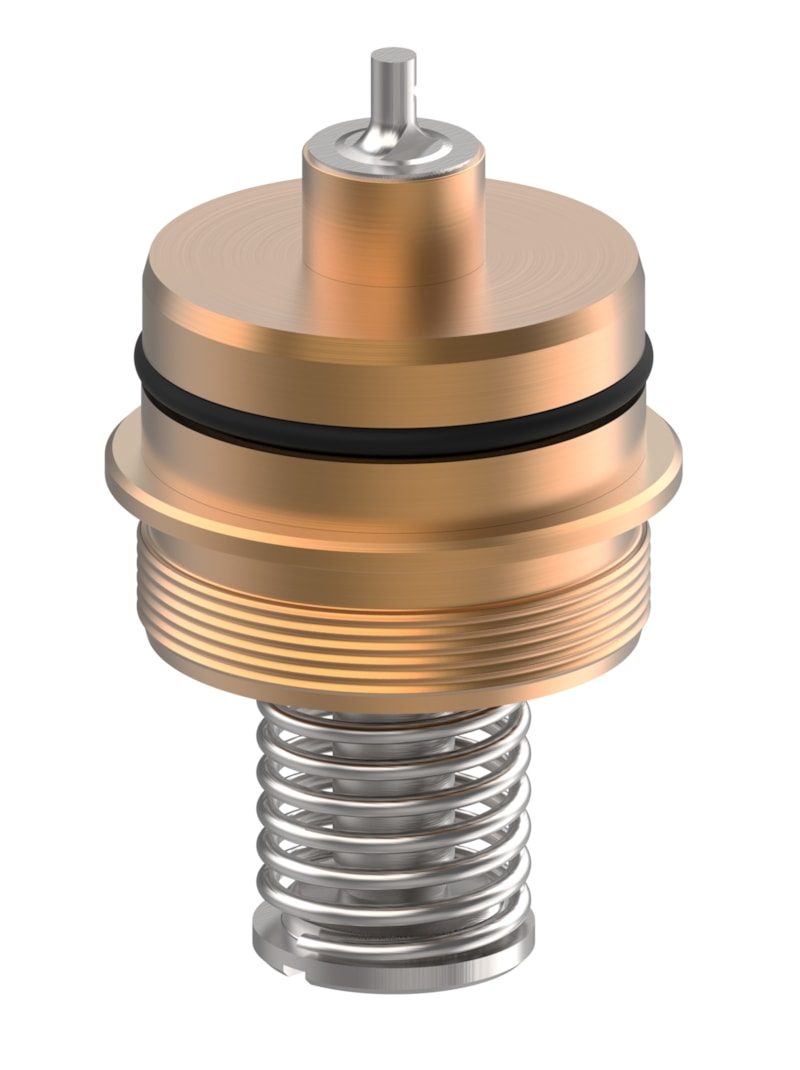

Danfoss valve insert, PN 25, for VG, DN 15, Kvs 1.6 m³/h, globe-valve spare

Danfoss valve insert (003H6871) — genuine PN 25 spare cone + seat cartridge for the Danfoss VG globe-valve range. The insert is the replaceable throttling element (cone and seat) that drops into the valve body; renewing it restores the original flow characteristic and Kvs without changing the body. Valve size DN 15. Kvs 1.6 m³/h. Pressure class PN 25 for district heating/cooling circulation water. Fits Danfoss VG valves/controllers. OEM designation "Valve insert PN25 15/1,6 VG-flow". Net weight 0.212 kg, gross 1.058 kg. Contains lead per the REACH candidate list. OEM P/N 003H6871. EAN 5702421553305. Technical data quoted verbatim from store.danfoss.com (code 003H6871).

Code number

003H6871

Type

Valve Inserts

Product group

Accessories — SAC (self-acting controllers)

For product type

VG

Valve size

DN 15

Kvs value

1.6 m³/h

Function

Replaceable cone + seat insert cartridge for the globe-valve body

Pressure class

PN 25

Permissible media

District heating/cooling circulation water

OEM description

Valve insert PN25 15/1,6 VG-flow

REACH Candidate List substance

Lead (CAS no. 7439-92-1)

Volume

0.547 L

Net weight

0.212 kg

Gross weight

1.058 kg

EAN

5702421553305

HS code

8481.90

Description

Valve insert PN25 15/1,6 VG-flow

Kvs values [m³/h]

1.6 m³/h

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Pressure Rating

PN 25

HS Code

8481.90
