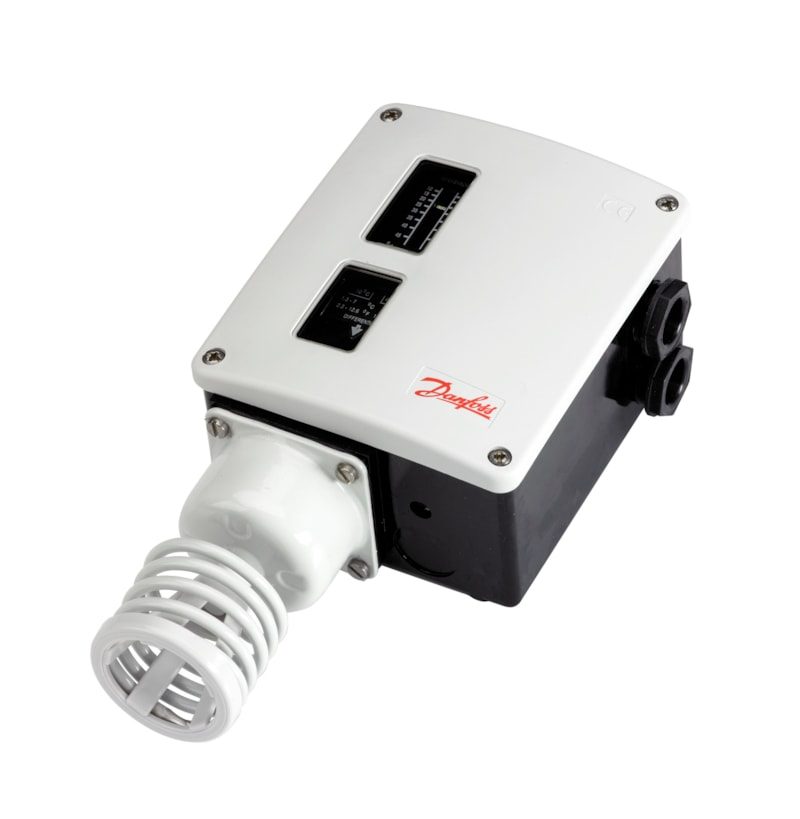

Danfoss RT4 Thermostat -5 to 30 degC SPDT Auto Reset, room sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT4 mechanical temperature switch (thermostat) with room sensor and single-pole double-throw (SPDT) contact, auto reset. Sensor setting range -5 to 30 degC (23 to 86 degF); enclosure IP66. For industrial and marine applications. Danfoss code number 017-503666; EAN 5702428519397.
Technical Specifications
- Brand
- Danfoss
- Model
- RT4 thermostat
- Code number
- 017-503666
- Sensor temperature setting range
- -5 to 30 degC (23 to 86 degF)
- Differential
- 1.2 to 7 degC (adjustable)
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Auto
- Sensor type
- room sensor
- Max. sensor temperature
- 75 degC (167 degF)
- Charge
- adsorption
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702428519397
- Part number
- 017-503666
- Net weight
- 0.806 Kilogram
- Type
- RT4
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- CE mark
- Yes
- Charge type
- State Vapour
- China RoHS compliance
- Yes
- Diff. @ Max. range setting[°C] [max]
- 4 °C
- Diff. @ Max. range setting[°C] [min]
- 1.2 °C
- Diff. @ Min. range setting[°C] [max]
- 7 °C
- Diff. @ Min. range setting[°C] [min]
- 1.5 °C
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 75 °C
- Max. sensor temperature [°F]
- 167 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Temperature range [°C] [max]
- 30 °C
- Temperature range [°C] [min]
- -5 °C
- Temperature range [°F] [max]
- 86 °F
- Temperature range [°F] [min]
- 23 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Room sensor (adsorption charge)
- Temperature Range
- -50 to +70 degC (ambient); sensor -5 to 30 degC (23 to 86 degF)
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.10
Compatibility & Fitment
RT4 room-sensor thermostat. Confirm setting range, reset type against application.
Product Documentation
More from Danfoss
Danfoss
Danfoss RT106 Thermostat 20 to 90 degC SPDT Auto Reset, 2 m capillary
017-504866
Danfoss
Danfoss RT106 Thermostat 20 to 90 degC SPDT Auto Reset, 5 m capillary
017-505066
Danfoss

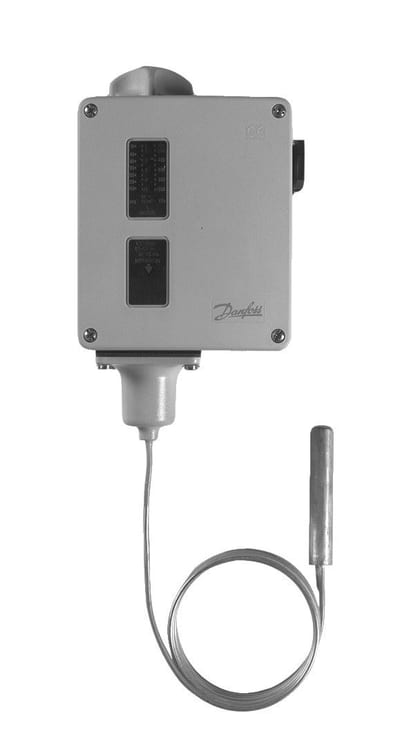

Danfoss RT106 Thermostat 20 to 90 degC SPDT Auto Reset, 3 m capillary
017-505166
Danfoss

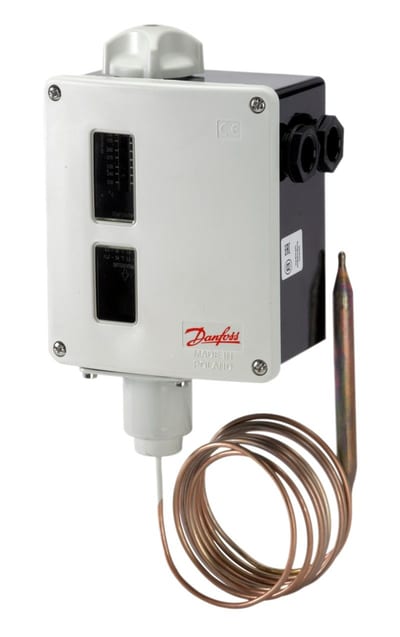

Danfoss RT7 Thermostat -25 to 15 degC SPDT Auto Reset, 2 m capillary
