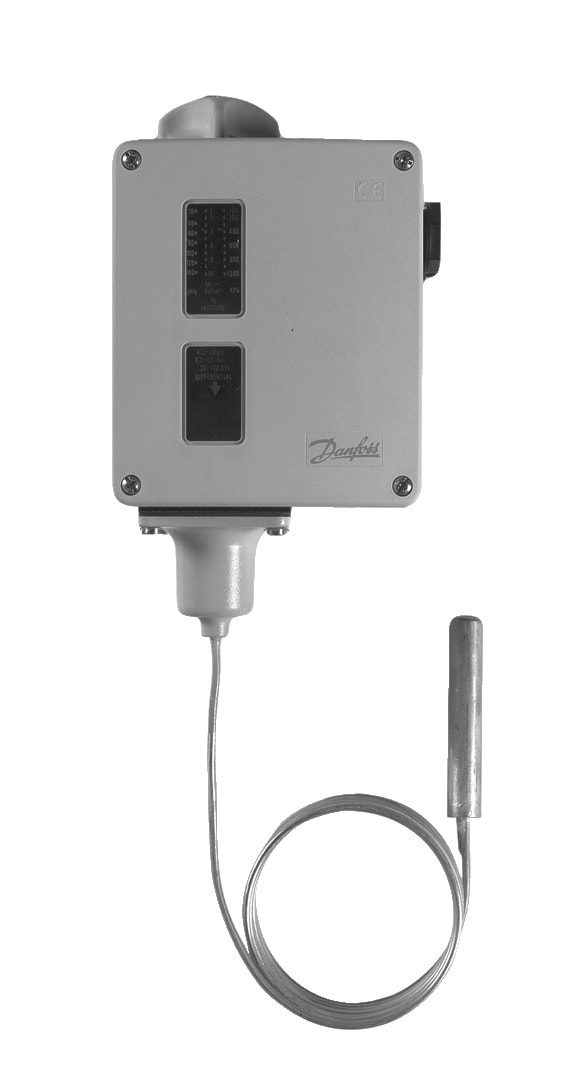

Danfoss RT106 Thermostat 20 to 90 degC SPDT Auto Reset, 5 m capillary
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT106 mechanical temperature switch (thermostat) with remote bulb sensor and single-pole double-throw (SPDT) contact, auto reset. Sensor setting range 20 to 90 degC (68 to 194 degF); enclosure IP66. For industrial and marine applications. Danfoss code number 017-505066; EAN 5702423119547.
Technical Specifications
- Brand
- Danfoss
- Model
- RT106 thermostat
- Code number
- 017-505066
- Sensor temperature setting range
- 20 to 90 degC (68 to 194 degF)
- Differential
- 2 to 20 degC (adjustable)
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Auto
- Sensor type
- remote bulb, sensor 13 x 80 mm
- Capillary tube length
- 5000 mm (5 m)
- Max. sensor temperature
- 120 degC (248 degF)
- Charge
- adsorption
- Enclosure
- IP66
- Ambient temperature range
- -50 to +70 degC (-58 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, DNV, EAC, GL, LR, LVD, NKK, RMRS, RoHS, RoHS China, TYSK
- EAN
- 5702423119547
- Part number
- 017-505066
- Net weight
- 1.228 Kilogram
- Type
- RT106
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- CCC
- Cap. tube length fraction [in]
- 196 7/8 in
- Capillary tube length [mm]
- 5000 mm
- CE mark
- Yes
- Charge type
- Cross-Ambient
- China RoHS compliance
- Yes
- Diff. @ Max. range setting[°C] [max]
- 7 °C
- Diff. @ Max. range setting[°C] [min]
- 2 °C
- Diff. @ Min. range setting[°C] [max]
- 20 °C
- Diff. @ Min. range setting[°C] [min]
- 4 °C
- Differential type
- Adjustable
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Max. sensor temperature [°C]
- 120 °C
- Max. sensor temperature [°F]
- 248 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Reset function
- Auto
- Sensor pocket length min. [in]
- 4 3/8 in
- Sensor pocket length min. [mm]
- 110 mm
- Sensor size (Ø x L) [in]
- 1/2 x 3 1/8 in
- Sensor size (Ø x L) [mm]
- 13 x 80 mm
- Temperature range [°C] [max]
- 90 °C
- Temperature range [°C] [min]
- 20 °C
- Temperature range [°F] [max]
- 194 °F
- Temperature range [°F] [min]
- 68 °F
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Remote bulb sensor (adsorption charge)
- Temperature Range
- -50 to +70 degC (ambient); sensor 20 to 90 degC (68 to 194 degF)
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, DNV, EAC, GL, LR, LVD, NKK, RMRS, RoHS, RoHS China, TYSK
- HS Code
- 9032.10
Compatibility & Fitment
RT106 remote-bulb thermostat, 5 m capillary. Confirm setting range, reset type and capillary length against application.
