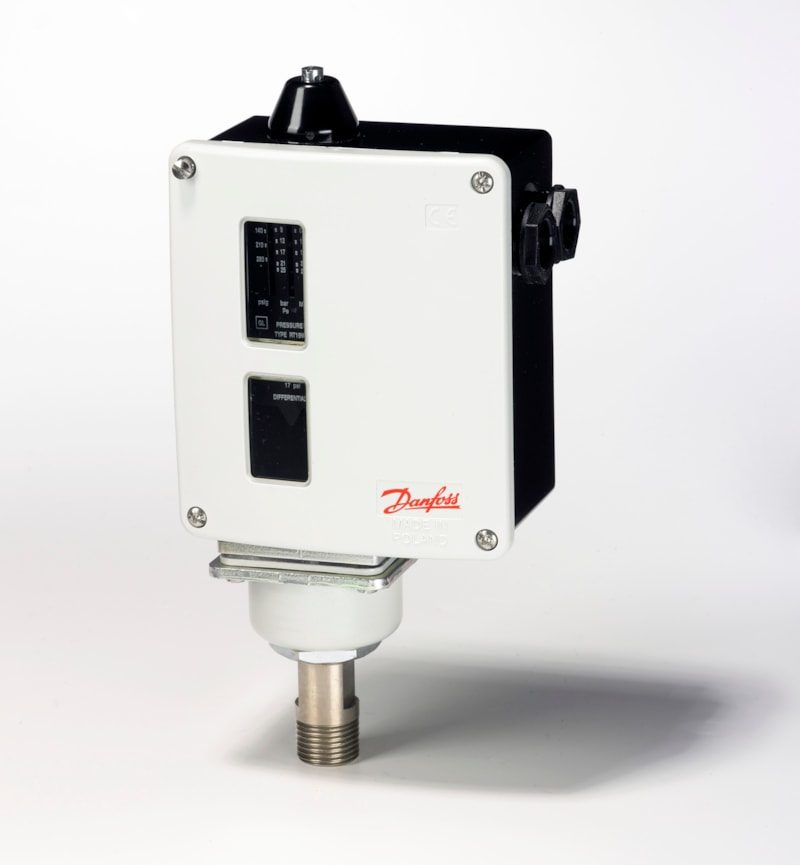

Danfoss RT32B Pressure Switch 5 to 25 SPDT Manual min Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT32B mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and manual min reset. Regulating range 5 to 25 bar; G 1/2 male pressure connection (ISO 228-1); enclosure IP54. Danfoss code number 017-524866.
Technical Specifications
- Brand
- Danfoss
- Model
- RT32B pressure switch
- Code number
- 017-524866
- Regulating range (Pe)
- 5 to 25 bar
- Maximum working pressure
- 42 bar
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Manual min
- Differential
- 0.4 bar (fixed)
- Pressure sensing element
- bellows
- Pressure connection
- G 1/2 male (ISO 228-1)
- Enclosure
- IP54
- Ambient temperature range
- -40 to +70 degC (-40 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Maximum test pressure
- 47 bar
- EAN
- 5702428042970
- Net weight
- 0.85 kg; gross weight: 0.96 kg
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CE, EAC, CCC, LVD, PED, RMRS
- Type
- RT32B
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- CCC
- Burst pressure [bar]
- 136 bar
- CE mark
- Yes
- China RoHS compliance
- Yes
- Contact rating @ 250K cycles
- AC15=1 A, 400 V
- Differential [bar]
- 0.4 bar
- Differential [psi]
- 5.8 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Out of scope
- Fluid Group
- 1
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 47 bar
- Max. test pressure [psig]
- 682 psig
- Max. Working Pressure [bar]
- 42 bar
- Max. Working Pressure [psig]
- 610 psig
- PED category
- IV
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 25 bar
- Regulation range [bar] Pe [min]
- 5 bar
- Regulation range [psig] Pe [max]
- 362.6 psig
- Regulation range [psig] Pe [min]
- 72.5 psig
- Reset function
- Manual Min
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 42 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP54
- Classification / Approval
- CE, EAC, CCC, LVD, PED, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 1/2 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
