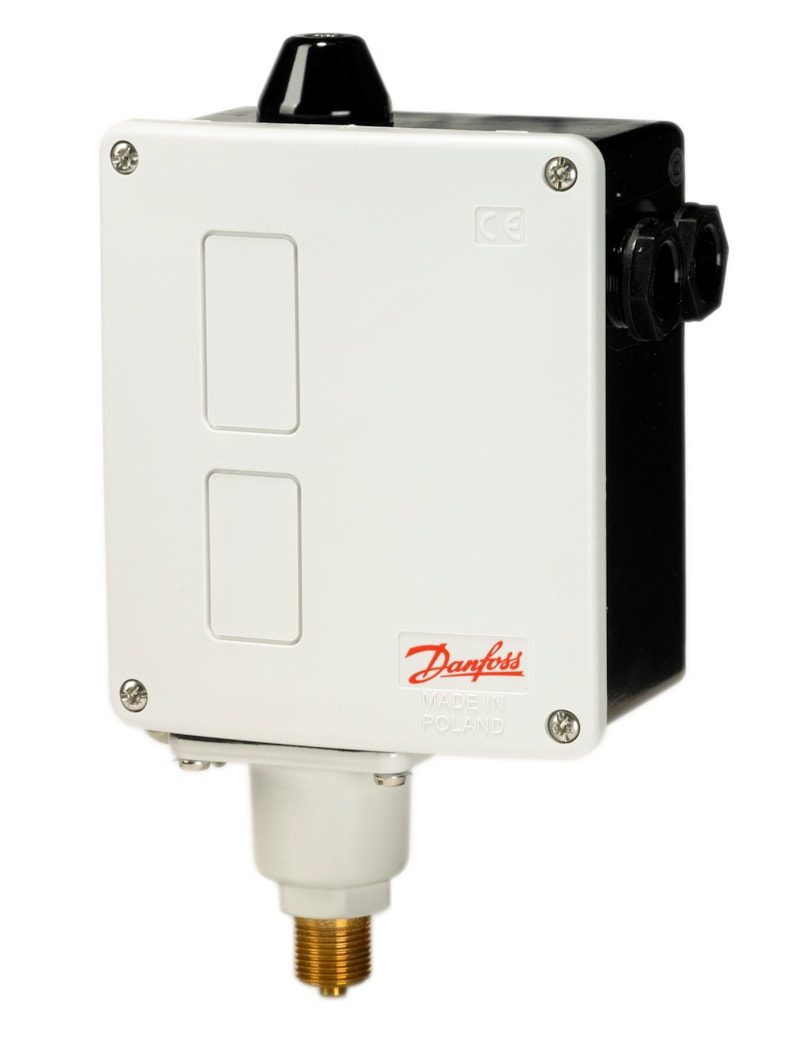

Danfoss RT116 Pressure Switch 1 to 10 SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT116 mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and auto reset. Regulating range 1 to 10 bar; G 3/8 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017-520066.
Technical Specifications
- Brand
- Danfoss
- Model
- RT116 pressure switch
- Code number
- 017-520066
- Regulating range (Pe)
- 1 to 10 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Auto
- Differential
- 0.33 to 1.3 bar (adjustable)
- Pressure sensing element
- bellows
- Pressure connection
- G 3/8 male (ISO 228-1)
- Enclosure
- IP66
- Ambient temperature range
- -40 to +70 degC (-40 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Maximum test pressure
- 25 bar
- EAN
- 5702423120598
- Net weight
- 0.854 kg; gross weight: 0.964 kg
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- BV, CCC, CE, CMIM, DNV, EAC, GL, KR, LR, LVD, NKK, RINA, RMRS, PED
- Type
- RT116
- Product group
- Switches and thermostats
- Ambient temperature range [°C] [max]
- 70 °C
- Ambient temperature range [°C] [min]
- -50 °C
- Ambient temperature range [°F] [max]
- 158 °F
- Ambient temperature range [°F] [min]
- -58 °F
- Approval
- BV
- CE mark
- Yes
- China RoHS compliance
- Yes
- Differential [bar] [max]
- 1.3 bar
- Differential [bar] [min]
- 0.33 bar
- Differential [psi] [max]
- 18.9 psi
- Differential [psi] [min]
- 4.8 psi
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Female
- Electrical connection
- Screwed cable entry
- Electrical connection size
- 2xPg 13.5
- Electrical connection standard
- DIN 40430
- Electrical spec. standard
- EN 60947-4/-5
- EN 60947 electrical properties
- Insulation: 400V
- EN 60947 wiring properties
- Flex, ferrules: 0.2-1.5 mm2
- Enclosure rating IP
- IP66
- EU RoHS compliance
- Yes
- Identical product
- 017-141166
- In scope of WEEE
- Yes
- Max. test pressure [bar] Pe
- 25 bar
- Max. test pressure [psig]
- 363 psig
- Max. Working Pressure [bar]
- 22 bar
- Max. Working Pressure [psig]
- 320 psig
- Other RoHS documentation
- Saudi Arabia RoHS
- Pressure connection size
- 3/8
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Regulation range [bar] Pe [max]
- 10 bar
- Regulation range [bar] Pe [min]
- 1 bar
- Regulation range [psig] Pe [max]
- 145 psig
- Regulation range [psig] Pe [min]
- 14.5 psig
- Reset function
- Auto
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 22 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- BV, CCC, CE, CMIM, DNV, EAC, GL, KR, LR, LVD, NKK, RINA, RMRS, PED
- HS Code
- 9032.20
Compatibility & Fitment
G 3/8 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
