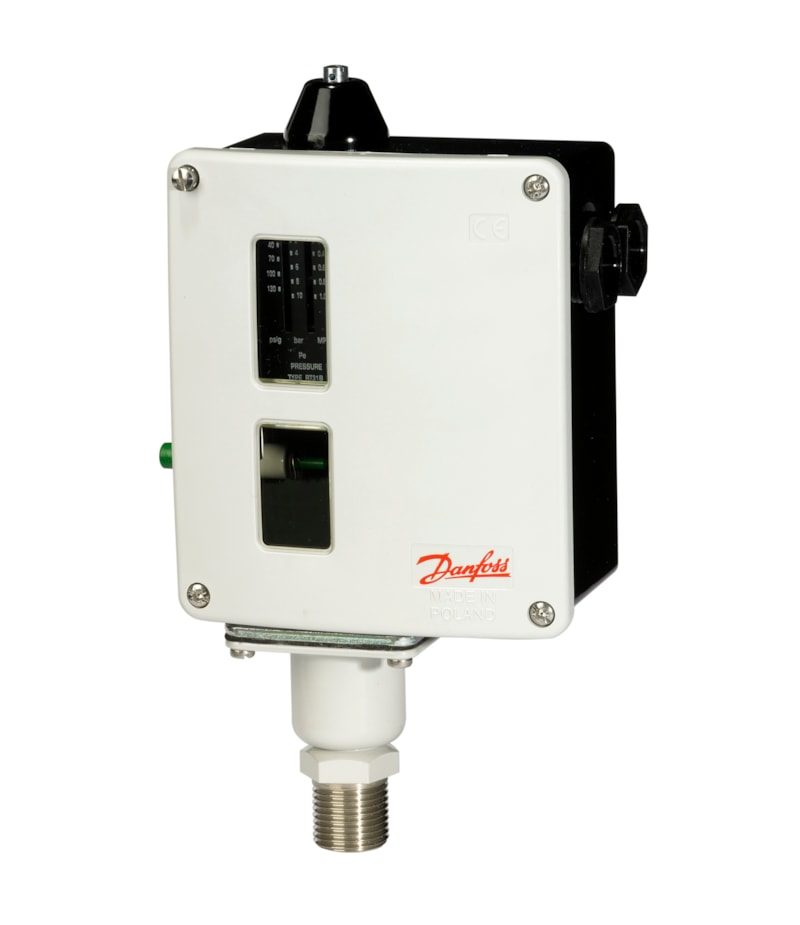

Danfoss RT31W Pressure Switch 2 to 10 SPDT Auto Reset
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss RT31W mechanical pressure switch with bellows sensing element, single-pole double-throw (SPDT) contact and auto reset. Regulating range 2 to 10 bar; G 1/2 male pressure connection (ISO 228-1); enclosure IP66. Danfoss code number 017-526766.
Technical Specifications
- Brand
- Danfoss
- Model
- RT31W pressure switch
- Code number
- 017-526766
- Regulating range (Pe)
- 2 to 10 bar
- Maximum working pressure
- 22 bar
- Contact function
- SPDT (single-pole double-throw)
- Reset
- Auto
- Differential
- 0.3 to 1 bar
- Pressure connection
- G 1/2 male (ISO 228-1)
- Enclosure
- IP66
- Burst pressure
- 88 bar
- Maximum test pressure
- 25 bar
- EAN
- 5702428042949
- Net weight
- 0.864 kg; gross weight: 0.984 kg
- Pressure sensing element
- bellows
- Ambient temperature range
- -40 to +70 degC (-40 to +158 degF)
- Cable entry
- 2 x Pg 13.5
- Contact rating
- AC15=3 A at 400 V; AC1=10 A at 400 V; AC3=4 A at 400 V; DC13=12 W at 220 V; LR=28 A at 400 V
- Standards
- EN 60947-4, EN 60947-5
- Approvals
- CCC, CE, EAC, LVD, PED, RMRS
Standards & Compliance
- Standard
- EN 60947-5
- Material
- Bellows sensing element
- Thread Standard
- ISO 228-1
- Pressure Rating
- 22 bar
- Temperature Range
- -40 to +70 degC
- IP Rating
- IP66
- Classification / Approval
- CCC, CE, EAC, LVD, PED, RMRS
- HS Code
- 9032.20
Compatibility & Fitment
G 1/2 male (ISO 228-1) pressure connection. Confirm range and reset type against application.
