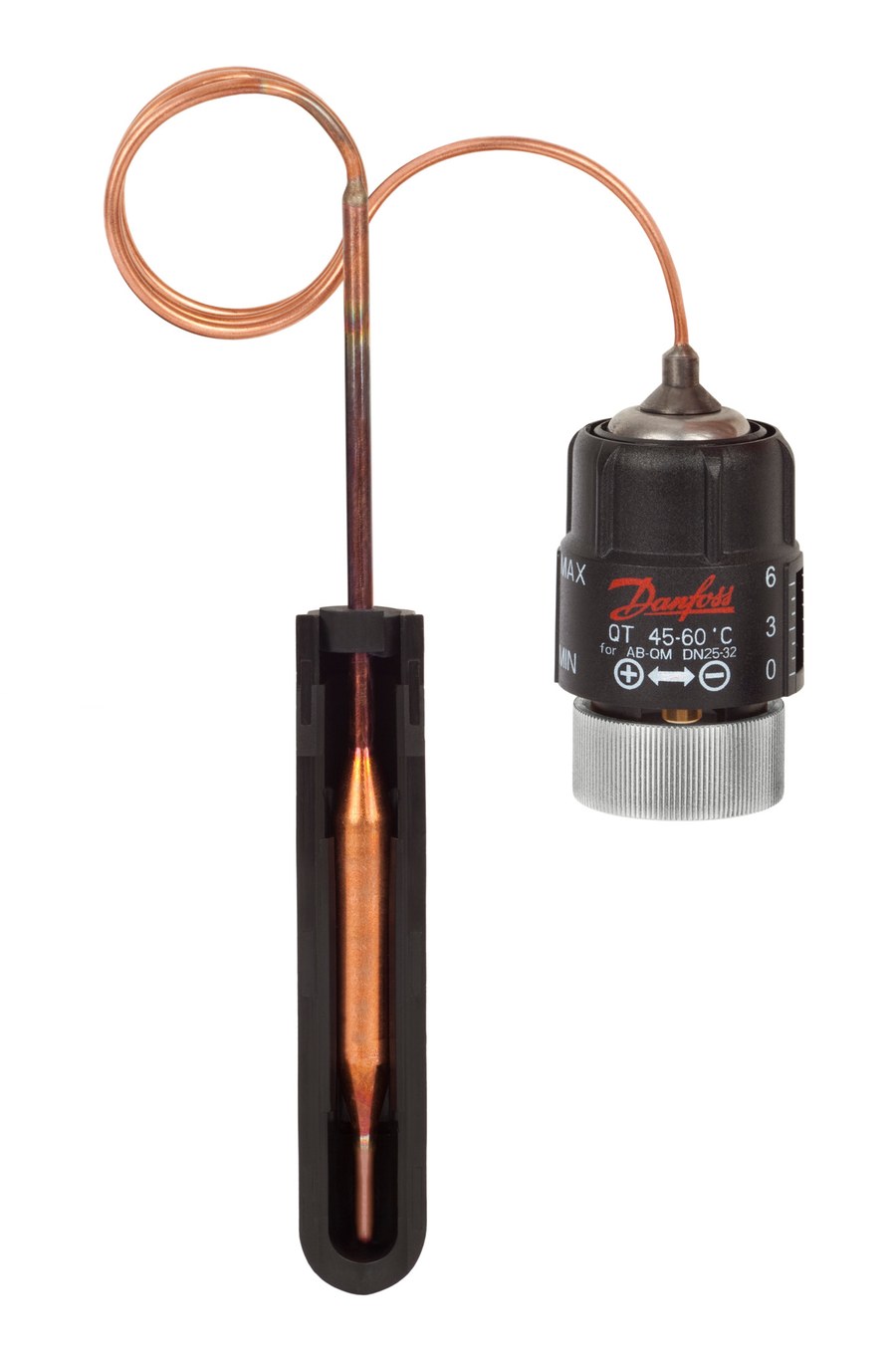

Danfoss QT 45-60 °C, DN 25-32, thermostatic actuator for return temperature control
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss QT self-acting thermostatic actuator for return-temperature control on Danfoss one-pipe / AB-QM installations. QT 45-60 °C, DN 25-32, thermostatic actuator for return temperature control. Temperature setting range 45 °C to 60 °C. For AB-QM size DN 25-32. Capillary tube length 0.6 m. Part of the Danfoss One-pipe solutions range. OEM P/N 003Z0383. EAN 5710104012971. Technical data quoted verbatim from store.danfoss.com (code 003Z0383).
Technical Specifications
- Code number
- 003Z0383
- Type
- QT
- Product group
- One-pipe solutions
- Capillary tube length [m]
- 0.6 m
- China RoHS compliance
- Out of scope
- Compatibility with AB-QM size
- DN 25-32
- Contains batteries
- No
- Description
- QT 45-60 °C, DN 25-32, thermostatic actuator for return temperature control
- EU RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- ce259842-5928-46a5-b912-7710c1887d5a
- SCIP dossier product name
- QT
- Temperature setting range [°C] [Max]
- 60 °C
- Temperature setting range [°C] [Min]
- 45 °C
- Gross weight
- 0.22 Kilogram
- Net weight
- 0.198 Kilogram
- Volume
- 1.425 Liter
- EAN
- 5710104012971
Standards & Compliance
- Temperature Range
- 45 °C to 60 °C (setting range)
- HS Code
- 9032.10
Compatibility & Fitment
Danfoss one-pipe / AB-QM return-temperature control component. Confirm AB-QM size compatibility and setting range against the system design before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss QT 35-50 °C, DN 10-20, thermostatic actuator for return temperature control
003Z0384
Danfoss
Danfoss QT 35-50 °C, DN 25-32, thermostatic actuator for return temperature control
003Z0385
Danfoss
Danfoss QT 65-85 °C, DN 10-20, thermostatic actuator for return temperature control
003Z0386
Danfoss
Danfoss QT 65-85 °C, DN 25-32, thermostatic actuator for return temperature control
003Z0387
Danfoss
Danfoss AB-QM QT sensor submersible kit
003Z0390
Danfoss
Danfoss AB-QM Pocket for submersible sensor
003Z0391
Danfoss
Danfoss AB-QM Adapter kit QT (DN 10 - 20)
003Z0392
Danfoss

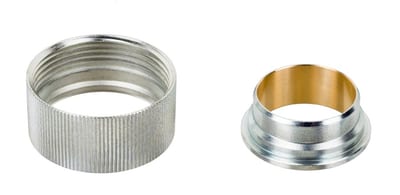

Danfoss AB-QM Adapter kit (DN 25 - 32)
003Z0393
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-08-24. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 003Z0383?
- 003Z0383 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 003Z0383.
- What is the HS code for 003Z0383?
- The customs tariff (HS) code for 003Z0383 is 9032.10.
- Who manufactures 003Z0383?
- 003Z0383 is a Danfoss product in the HVAC & Refrigeration range.
- Is a datasheet available for 003Z0383?
- Yes — the 003Z0383 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 003Z0383?
- The minimum order quantity is 1.
- Is 003Z0383 available?
- Yes — 003Z0383 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
