Product Description

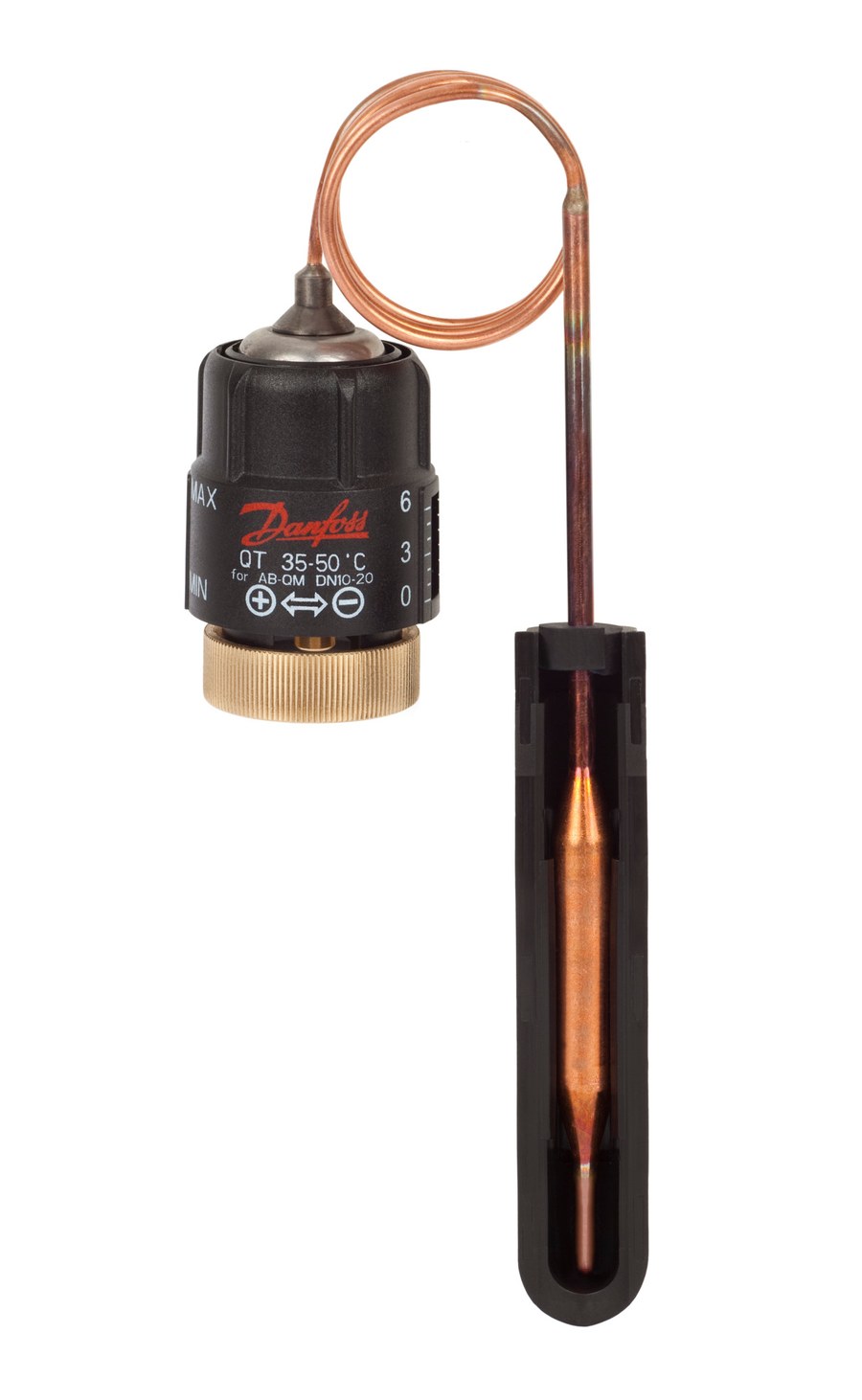

Danfoss QT self-acting thermostatic actuator for return-temperature control on Danfoss one-pipe / AB-QM installations. QT 35-50 °C, DN 10-20, thermostatic actuator for return temperature control. Temperature setting range 35 °C to 50 °C. For AB-QM size DN 10-20. Capillary tube length 0.6 m. Part of the Danfoss One-pipe solutions range. OEM P/N 003Z0384. EAN 5710104012964. Technical data quoted verbatim from store.danfoss.com (code 003Z0384).
Technical Specifications
- Code number
- 003Z0384
- Type
- QT
- Product group
- One-pipe solutions
- Capillary tube length [m]
- 0.6 m
- China RoHS compliance
- Out of scope
- Compatibility with AB-QM size
- DN 10-20
- Contains batteries
- No
- Description
- QT 35-50 °C, DN 10-20, thermostatic actuator for return temperature control
- EU RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- ce259842-5928-46a5-b912-7710c1887d5a
- SCIP dossier product name
- QT
- Temperature setting range [°C] [Max]
- 50 °C
- Temperature setting range [°C] [Min]
- 35 °C
- Gross weight
- 0.23 Kilogram
- Net weight
- 0.214 Kilogram
- Volume
- 1.441 Liter
- EAN
- 5710104012964
Standards & Compliance
- Temperature Range
- 35 °C to 50 °C (setting range)
- HS Code
- 9032.10
Compatibility & Fitment
Danfoss one-pipe / AB-QM return-temperature control component. Confirm AB-QM size compatibility and setting range against the system design before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss QT 35-50 °C, DN 25-32, thermostatic actuator for return temperature control
003Z0385
Danfoss
Danfoss QT 65-85 °C, DN 10-20, thermostatic actuator for return temperature control
003Z0386
Danfoss
Danfoss QT 65-85 °C, DN 25-32, thermostatic actuator for return temperature control
003Z0387
Danfoss
Danfoss AB-QM QT sensor submersible kit
003Z0390
Danfoss
Danfoss AB-QM Pocket for submersible sensor
003Z0391
Danfoss
Danfoss AB-QM Adapter kit QT (DN 10 - 20)
003Z0392
Danfoss
Danfoss AB-QM Adapter kit (DN 25 - 32)
003Z0393
Danfoss

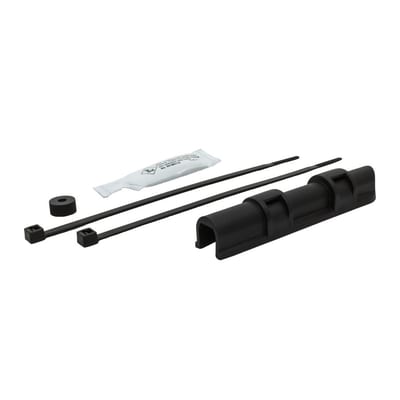

Danfoss AB-QM Sensor pocket kit
