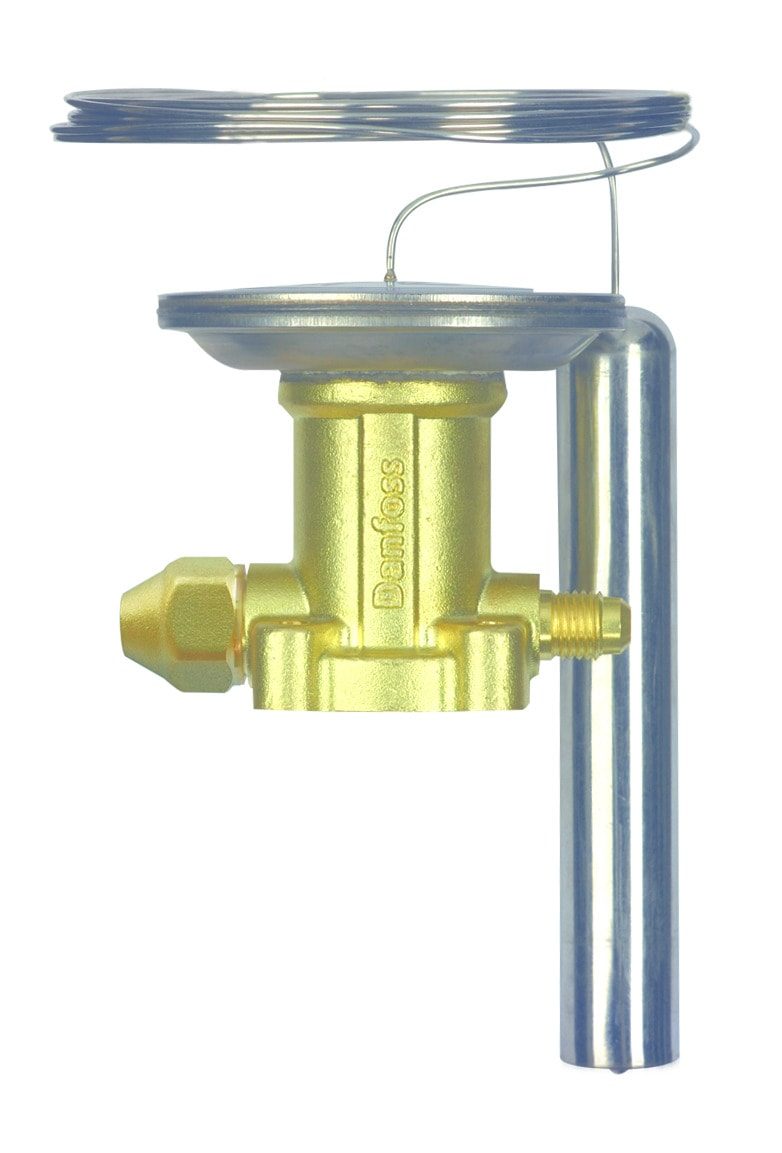

Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 60 psig at 0 °C (code 067B3249)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss exchangeable thermostatic power element for the TE 5 expansion valve, charged for R22/R407C. Externally equalized. MOP 60 psig at 0 °C. Evaporating temperature range -40 to -5 °C. Capillary tube 3000 mm. 1/4 in flare equalization connection. Laser-welded stainless steel element, capillary tube and bulb. Supplied with bulb strap.
Specifications
- Part number
- 067B3249
- HS code
- 8481.90
Compatibility
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Standards
Approvals
