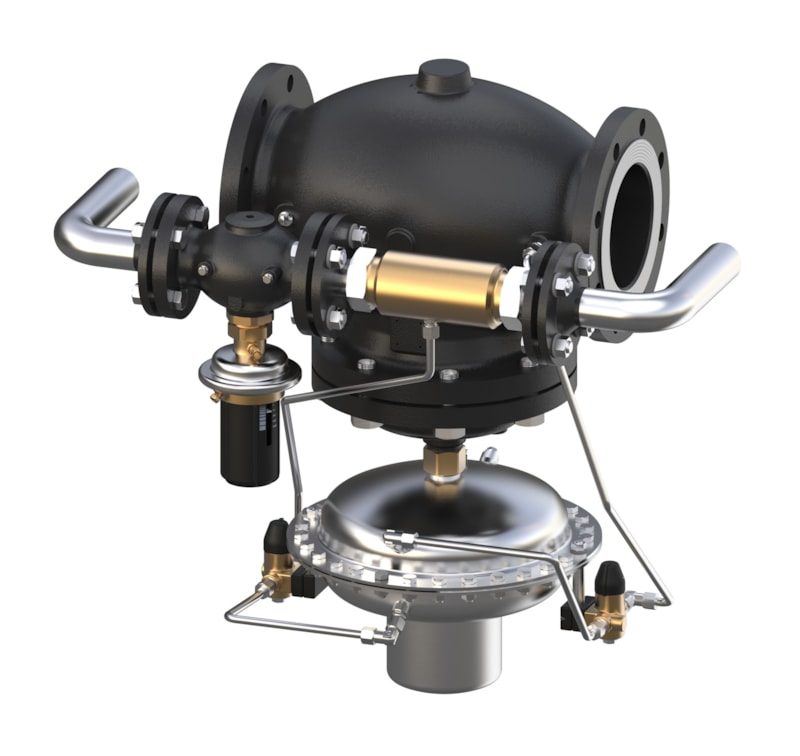

Danfoss PCV-VFGS 2 self-acting control valve assembly kit — PN 16, DN 125, Kvs 160 m³/h, Flange, dp 0.5–15 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss PCV-VFGS 2 pre-assembled self-acting control valve (OEM designation "Assem.kit PCV-VFGS2 PN16 125/160 flange"). Shipped as a factory assembly kit combining a Danfoss AF-series rolling-diaphragm actuator with a VFGS 2 grey cast-iron globe body with metal seat, ready to install as one unit for high-temperature pressure control. No external power or control signal is required — pipe pressure acting on the 250 cm² diaphragm holds the set differential pressure on high-temperature (up to 200 °C) circuits. Valve size DN 125; PN 16; Kvs 160 m³/h; Flange connection; differential-pressure setting 0.5–15 bar; control ratio 400:1; media District heating/cooling circulation water (Glycolic water up to 30%), 2 °C to 200 °C. Body Grey cast iron EN-GJL-250 (GG-25); stem Normally closed; leakage rate 0.05 % Kvs. OEM P/N 003G1554. Technical data quoted verbatim from store.danfoss.com (code 003G1554). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Code number
- 003G1554
- Type
- PCV-VFGS 2
- Product group
- Pilot - controlled valves
- Gross weight
- 95 Kilogram
- Net weight
- 95 Kilogram
- Volume
- 506.1 Liter
- Actuator size [cm²]
- 250 cm²
- Cavitation factor
- 0.35
- China RoHS compliance
- Out of scope
- Connection types
- Flange
- Contains batteries
- No
- Control ratio
- 400:1
- Description
- Assem.kit PCV-VFGS2 PN16 125/160 flange
- Diameter [mm]
- 125 mm
- Differential pressure range [bar] [Max]
- 15 bar
- Differential pressure range [bar] [Min]
- 0.5 bar
- EU RoHS compliance
- Out of scope
- Flow characteristic
- Linear optimized
- Function
- PCV Assembly kit
- Kvs values [m³/h]
- 160 m³/h
- Leakage rate [% Kvs]
- 0.05
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 200 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- Pressure class
- PN 16
- Pressure nominal [bar]
- 16 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sealing material
- Metal
- Stem position
- Normally closed
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone material
- Stainless steel, mat. No. 1.4021
- Valve seat material
- Stainless steel, mat. No. 1.4021
- Valve size
- DN 125
- EAN
- 5702421813812
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- PCV-VFGS 2
- Material
- Valve body Grey cast iron EN-GJL-250 (GG-25); sealing Metal
- Thread Standard
- Flange
- Pressure Rating
- PN 16
- Temperature Range
- 2 °C to 200 °C
- HS Code
- 8481.80
Compatibility & Fitment
The PCV-VFGS 2 kit is a complete self-acting control valve (AF actuator + VFGS 2 grey cast-iron globe body with metal seat) and needs no separate body order. Valve DN 125, PN 16, Kvs 160 m³/h, Flange. An impulse tube set (003G13xx/14xx) connects the actuator diaphragm to the pressure tapping. Confirm DN, PN, Kvs and the differential-pressure setting range 0.5–15 bar against the AF-range / PCV data sheet before ordering.
