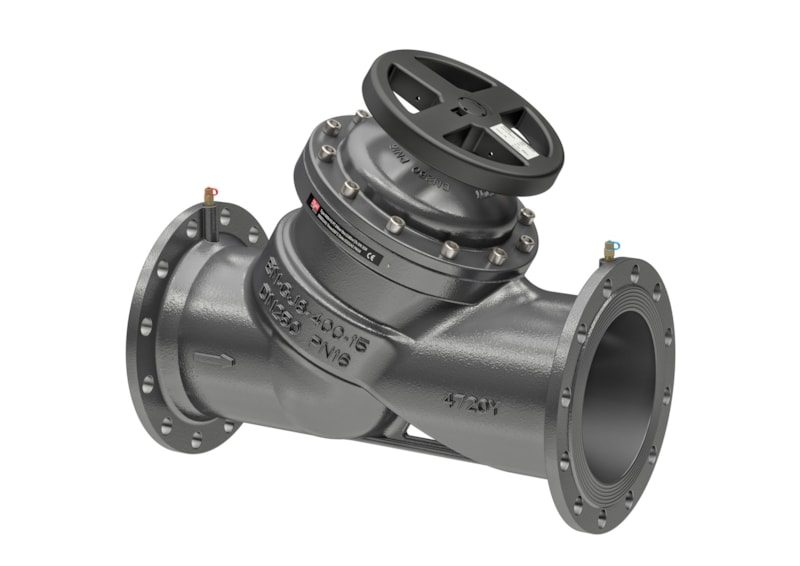

Danfoss MSV-F2 DN 400 flanged manual balancing valve PN 16 with test plugs
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MSV-F2 DN 400 — flanged double-regulating manual balancing valve for the main risers and large branches of hydronic heating and cooling systems. The MSV-F2 sets and limits circuit flow by a lockable presetting on a graduated scale, with two self-sealing test plugs for differential-pressure/flow measurement and commissioning, and a full shut-off function. Body Cast iron, PN 16, Kvs 3516 m³/h, flanged connection per EN 1092-1, media temperature -10 °C to 130 °C. OEM P/N 003Z1144. EAN 5710104523453. Technical data quoted verbatim from store.danfoss.com (code 003Z1144).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003Z1144
- Code number
- 003Z1144
- Type
- MSV-F2
- Product group
- Manual balancing
- Description
- MSV-F2 DN 400 with test plugs PN16, manual balancing valve
- Valve size
- DN 400
- Valve body material
- Cast iron
- Connection types
- Flange
- Pressure class
- PN 16
- Kvs values [m³/h]
- 3516 m³/h
- Kvs values [m³/h] [Max]
- 3500 m³/h
- Media temperature [°C] [Min]
- -10 °C
- Media temperature [°C] [Max]
- 130 °C
- Test plugs
- Yes
- Setting scale
- Yes
- Drain function
- No
- Shut-off function
- Yes
- Contains batteries
- No
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 460 Kilogram
- Gross weight
- 578 Kilogram
- Volume
- 1254.888 Liter
- EAN
- 5710104523453
- SCIP dossier no.
- 2bc00472-4969-4f4a-bfc8-1c168f67534a
- SCIP dossier product name
- MSV-F2 DN200-DN400
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- DN 400
- Material
- Valve body Cast iron
- Pressure Rating
- PN 16
- Temperature Range
- -10 °C to 130 °C (media)
- Classification / Approval
- CE
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss MSV-F2 DN 400 double-regulating balancing valve for PN 16 flanged pipework (EN 1092-1). Size the valve to the design flow and available head; use the graduated presetting scale to set flow and the two test plugs (supplied) for commissioning measurement. Pairs with a Danfoss PFM 4000 / partner measuring instrument for balancing.
