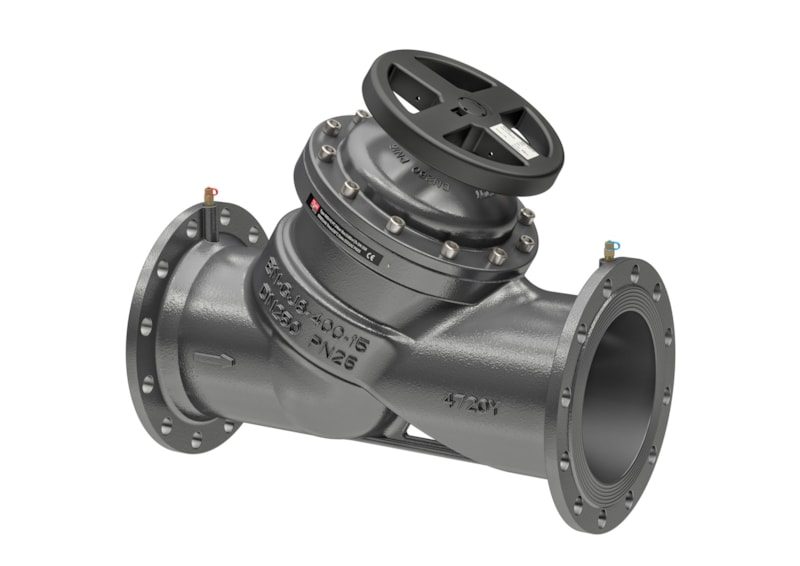

Danfoss MSV-F2 DN 250 flanged manual balancing valve PN 25 with test plugs

Danfoss MSV-F2 DN 250 — flanged double-regulating manual balancing valve for the main risers and large branches of hydronic heating and cooling systems. The MSV-F2 sets and limits circuit flow by a lockable presetting on a graduated scale, with two self-sealing test plugs for differential-pressure/flow measurement and commissioning, and a full shut-off function. Body Ductile iron (EN-GJS 400-15), PN 25, Kvs 1238 m³/h, flanged connection per EN 1092-1, media temperature -10 °C to 150 °C. OEM P/N 003Z1146. EAN 5715162497371. Technical data quoted verbatim from store.danfoss.com (code 003Z1146).

Brand

Danfoss

Part number

003Z1146

Code number

003Z1146

Type

MSV-F2

Product group

Manual balancing

Description

MSV-F2 DN 250 with test plugs PN25, manual balancing valve

Valve size

DN 250

Valve body material

Ductile iron (EN-GJS 400-15)

Connection types

Flange

Pressure class

PN 25

Kvs values [m³/h]

1238 m³/h

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

150 °C

Test plugs

Yes

Setting scale

Yes

Drain function

No

Shut-off function

Yes

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

153 Kilogram

Gross weight

195 Kilogram

Volume

644.16 Liter

EAN

5715162497371

SCIP dossier no.

b53622cd-50a2-4626-a23a-856f12c6983e

SCIP dossier product name

MSV-F2 MNF DN15-300

HS code

8481.80

Size / Series

DN 250

Material

Valve body Ductile iron (EN-GJS 400-15)

Pressure Rating

PN 25

Temperature Range

-10 °C to 150 °C (media)

Classification / Approval

CE

HS Code

8481.80
