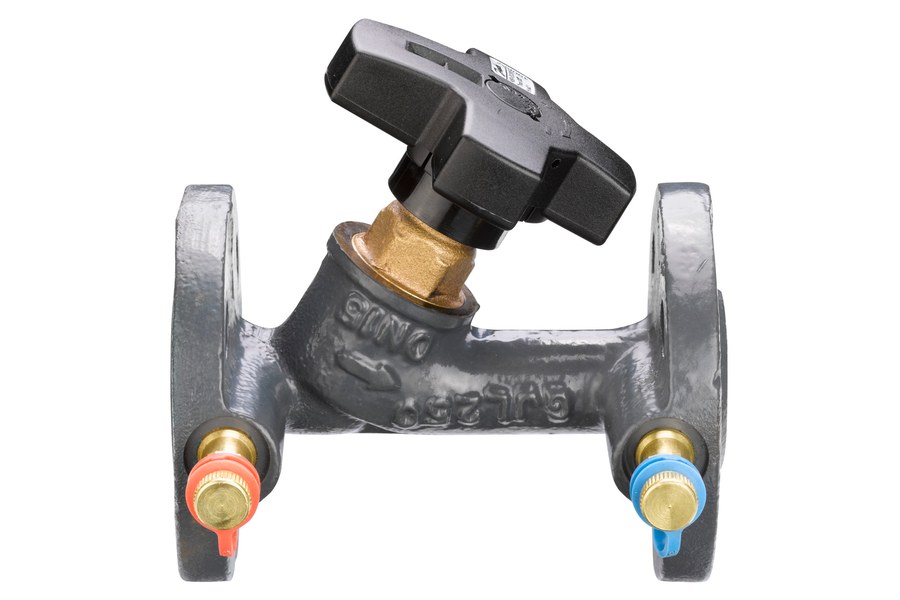

Danfoss MSV-F2 DN 15 PN 25 flanged manual static balancing valve

Danfoss MSV-F2 DN 15 PN 25 — flanged manual (static) double-regulating balancing valve for the main risers and branches of heating and cooling systems. Presetting the handwheel fixes the valve authority so design flow is distributed correctly across the network; the two built-in test plugs allow differential-pressure and flow measurement for commissioning without extra tappings, and the valve doubles as a shut-off. Kvs 3.1 m³/h, maximum differential pressure 200 KPa, media temperature -10 °C to 150 °C, Ductile iron (EN-GJS 400-15) body. OEM P/N 003Z1092. EAN 5702421557716. Technical data quoted verbatim from store.danfoss.com (code 003Z1092).

Code number

003Z1092

Type

MSV-F2

Product group

Manual balancing

Description

MSV-F2 DN 15 with test plugs PN25, manual balancing valve

Valve size

DN 15

Valve body material

Ductile iron (EN-GJS 400-15)

Connection types

Flange

Test plugs

With test plugs

Setting scale

Yes

Shut-off function

Yes

Drain function

No

Pressure class

PN 25

Kvs values [m³/h]

3.1 m³/h

Differential pressure over the valve [kPa] [Max]

200 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

150 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

82522435-9abe-47bb-9a5c-ad1ddeb2eb2f

SCIP dossier product name

MSV-F2 DN15-DN50

Net weight

1.983 Kilogram

Gross weight

2.37 Kilogram

Volume

6.6 Liter

EAN

5702421557716

Material

Valve body Ductile iron (EN-GJS 400-15)

Pressure Rating

PN 25

Temperature Range

-10 °C to 150 °C (media)

Classification / Approval

CE

HS Code

8481.80
