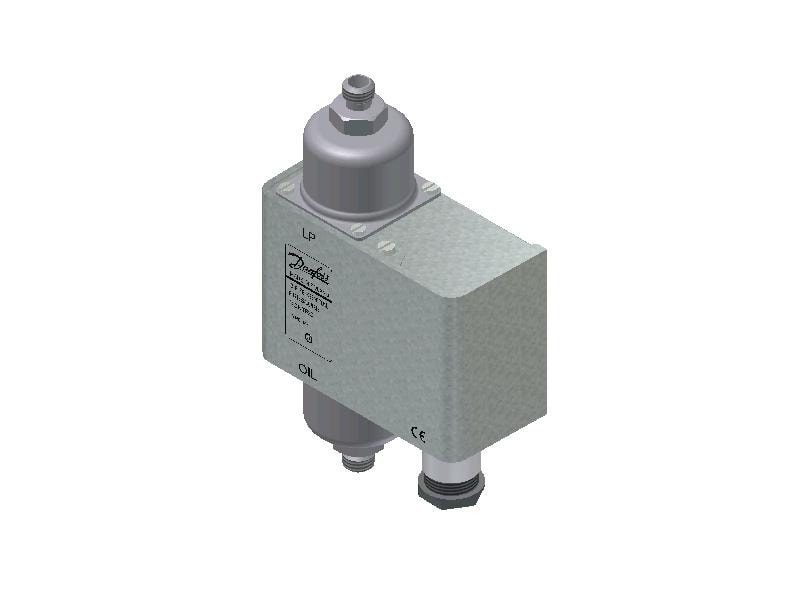

Danfoss MP55A oil differential pressure switch, 0.3 bar–4.5 bar adjustable, automatic reset, M12X1.5
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MP55A oil differential pressure switch, genuine OEM code number 060B029691. Protects a refrigeration or air-conditioning compressor against loss of lubricating oil pressure by monitoring the differential between oil-pump pressure and crankcase (suction) pressure and cutting out when it falls below the set value. Adjustable differential 0.3 bar–4.5 bar via the setting disc, factory set 0.65 bar, with readable internal scale; automatic reset. SPDT contact system, M12x1.5 metric thread (ISO 8434-1) pressure connection, screwed cable entry (Pg 13.5), IP20 enclosure. Max. working pressure 17 bar. Suitable for HCFC and non-flammable HFC refrigerants. EAN 5702424499648.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 060B029691
- Type
- MP55A oil differential pressure switch (lubrication safety control)
- Category
- Sensors & Instrumentation — Pressure Switches
- Function
- cuts out on falling oil pressure (differential of oil-pump pressure over crankcase pressure)
- Differential setting
- 0.3 bar–4.5 bar (4.3 psi–65 psi), factory set 0.65 bar
- Reset
- automatic
- Time-delay relay
- none (automatic reset version)
- Contact system
- SPDT
- Contact rating
- AC15=0.1 A, 250 V DC13=12 W, 125 V
- Pressure connection
- M12x1.5 metric thread (ISO 8434-1)
- Max. working pressure
- 17 bar (245 psig)
- Max. test pressure
- 22 bar
- Operating range, LP side
- -1 bar to 12 bar
- Electrical connection
- Screwed cable entry Pg 13.5
- Enclosure rating
- IP20
- Ambient temperature
- -40 °C to 60 °C
- Refrigerant compatibility
- HCFC and non-flammable HFC (e.g. R22, R134a, R404A, R407C, R448A, R449A, R450A, R513A)
- Packing
- Multi pack (21 pc)
- EAN
- 5702424499648
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- M12x1.5 metric thread (ISO 8434-1)
- Material
- Bellows-type differential pressure element; IP20 enclosure
- Thread Standard
- M12x1.5 metric thread (ISO 8434-1)
- Pressure Rating
- max. working pressure 17 bar (245 psig); test 22 bar
- Temperature Range
- -40 °C to 60 °C ambient
- IP Rating
- IP20
- HS Code
- 9026.20
Compatibility & Fitment
MP55A lube-oil protection control for reciprocating and scroll refrigeration/AC compressors. MP55/MP55A differential is adjustable via the setting disc. The automatic-reset variant is distinct from the other MP time-delay/reset options — verify the required time delay and reset (manual vs automatic) for the compressor.
