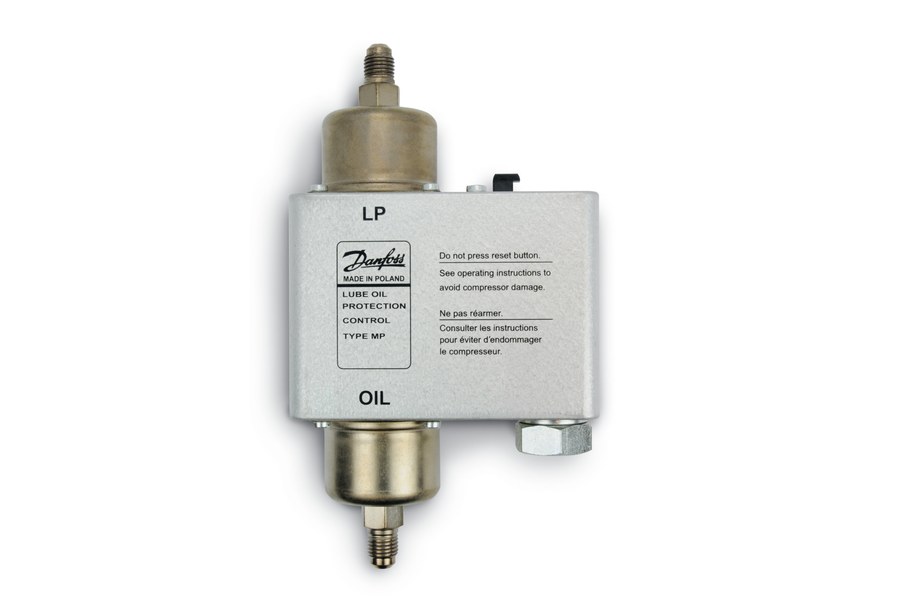

Danfoss MP54 oil differential pressure switch, fixed differential, automatic reset, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MP54 oil differential pressure switch, genuine OEM code number 060B029791. Protects a refrigeration or air-conditioning compressor against loss of lubricating oil pressure by monitoring the differential between oil-pump pressure and crankcase (suction) pressure and cutting out when it falls below the set value. Fixed differential; automatic reset. SPDT contact system, 1/4 in flare (DIN 8906) pressure connection, screwed cable entry (Pg 13.5), IP20 enclosure. Max. working pressure 17 bar. Suitable for HCFC and non-flammable HFC refrigerants. EAN 5702424499631.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 060B029791
- Type
- MP54 oil differential pressure switch (lubrication safety control)
- Category
- Sensors & Instrumentation — Pressure Switches
- Function
- cuts out on falling oil pressure (differential of oil-pump pressure over crankcase pressure)
- Differential setting
- fixed, contact differential 0.2 bar
- Reset
- automatic
- Time-delay relay
- none (automatic reset version)
- Contact system
- SPDT
- Contact rating
- AC15=0.1 A, 250 V DC13=12 W, 125 V
- Pressure connection
- 1/4 in flare (DIN 8906)
- Max. working pressure
- 17 bar (245 psig)
- Max. test pressure
- 22 bar
- Operating range, LP side
- -1 bar to 12 bar
- Electrical connection
- Screwed cable entry Pg 13.5
- Enclosure rating
- IP20
- Ambient temperature
- -40 °C to 60 °C
- Refrigerant compatibility
- HCFC and non-flammable HFC (e.g. R22, R134a, R404A, R407C, R448A, R449A, R450A, R513A)
- Packing
- Multi pack (21 pc)
- EAN
- 5702424499631
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- 1/4 in flare (DIN 8906)
- Material
- Bellows-type differential pressure element; IP20 enclosure
- Thread Standard
- 1/4 in flare (DIN 8906)
- Pressure Rating
- max. working pressure 17 bar (245 psig); test 22 bar
- Temperature Range
- -40 °C to 60 °C ambient
- IP Rating
- IP20
- HS Code
- 9026.20
Compatibility & Fitment
MP54 lube-oil protection control for reciprocating and scroll refrigeration/AC compressors. MP54 has a fixed differential (no setting disc). The automatic-reset variant is distinct from the other MP time-delay/reset options — verify the required time delay and reset (manual vs automatic) for the compressor.
