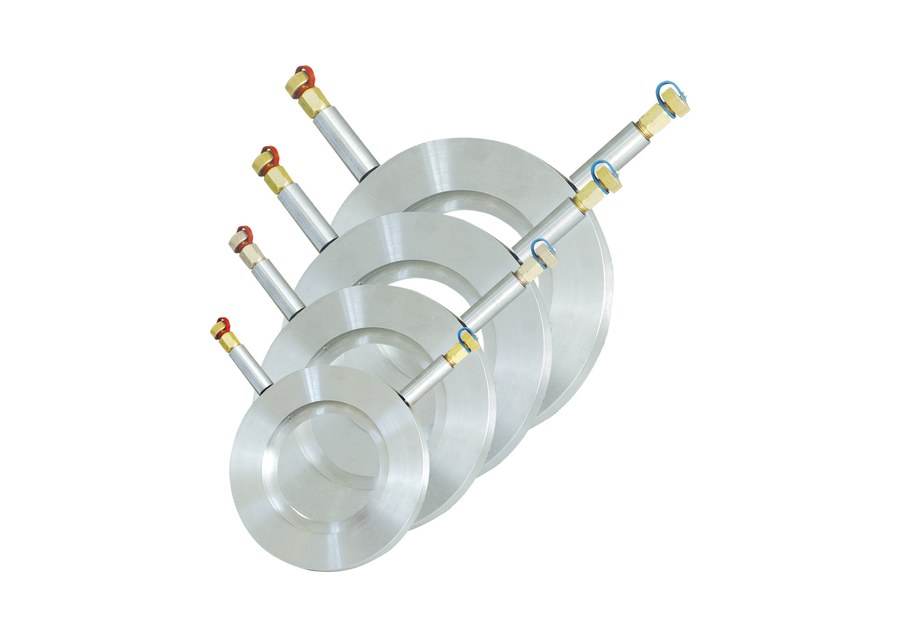

Danfoss measuring orifice DN 200 PN 25 for hydronic balancing
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss measuring orifice DN 200 PN 25 — fixed calibrated orifice fitted in the pipe to create a defined pressure drop for flow measurement in hydronic balancing circuits, used with a balancing instrument to read circuit flow. Kvs 798 m³/h. Suitable for PN 16/25/40 flange systems. OEM designation "Measuring orifice DN200 (PN25)". OEM P/N 003Z2280. EAN 5702421551189. Technical data quoted verbatim from store.danfoss.com (code 003Z2280).
Technical Specifications
- Code number
- 003Z2280
- Type
- Measuring orifices
- Product group
- Manual balancing
- Description
- Measuring orifice DN200 (PN25)
- Size
- DN 200
- Kvs value
- 798 m³/h
- Pressure class
- PN 25
- Contains batteries
- No
- EU RoHS compliance
- Yes with exemptions
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 5.738 Kilogram
- Gross weight
- 6.212 Kilogram
- Volume
- 4.896 Liter
- EAN
- 5702421551189
- HS code
- 9026.90
- EU RoHS exemption clause
- 6(c)
- Kvs values [m³/h]
- 798 m³/h
Standards & Compliance
- Size / Series
- Measuring orifice
- Pressure Rating
- PN 25
- HS Code
- 9026.90
Compatibility & Fitment
Select the orifice by pipe size (DN 200); the Kvs value fixes the flow/pressure-drop relation used to compute circuit flow with a differential-pressure measuring instrument. For large-diameter risers and mains where a measuring balancing valve is not fitted. Confirm DN and flange class before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss measuring orifice DN 250 PN 25 for hydronic balancing
003Z2281
Danfoss
Danfoss measuring orifice DN 300 PN 25 for hydronic balancing
003Z2282
Danfoss
Danfoss measuring orifice DN 350 PN 25 for hydronic balancing
003Z2283
Danfoss
Danfoss measuring orifice DN 400 PN 25 for hydronic balancing
003Z2284
Danfoss
Danfoss measuring orifice DN 450 PN 25 for hydronic balancing
003Z2285
Danfoss
Danfoss measuring orifice DN 500 PN 25 for hydronic balancing
003Z2286
Danfoss
Danfoss measuring orifice DN 600 PN 25 for hydronic balancing
003Z2287
Danfoss

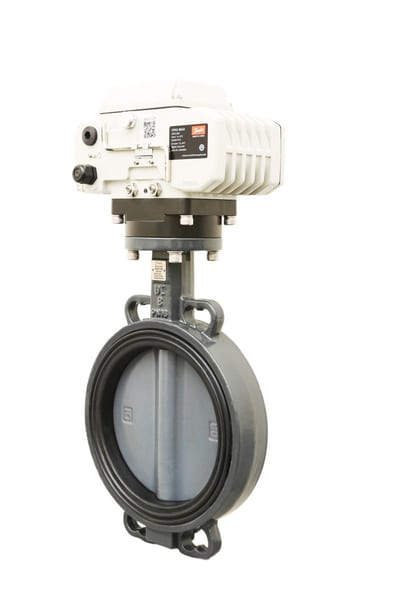

Danfoss VFH2-WAO DN 32 PN 16 motorized butterfly valve — wafer, on/off actuator, 220 V AC
