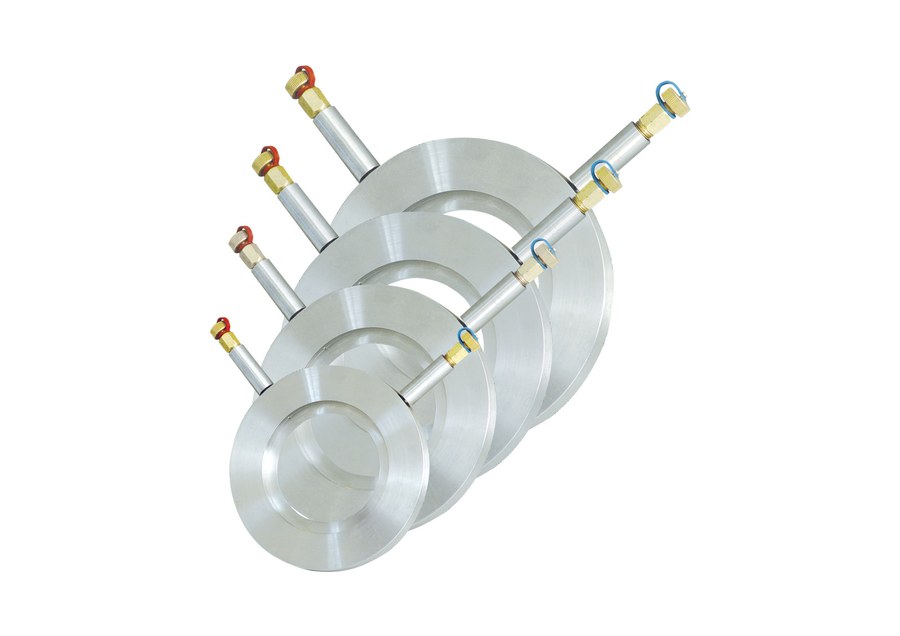

Danfoss measuring orifice DN 450 PN 25 for hydronic balancing
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss measuring orifice DN 450 PN 25 — fixed calibrated orifice fitted in the pipe to create a defined pressure drop for flow measurement in hydronic balancing circuits, used with a balancing instrument to read circuit flow. Kvs 3430 m³/h. Suitable for PN 16/25/40 flange systems. OEM designation "Measuring orifice DN450 (PN25)". OEM P/N 003Z2285. EAN 5702420118000. Technical data quoted verbatim from store.danfoss.com (code 003Z2285).
Technical Specifications
- Code number
- 003Z2285
- Type
- Measuring orifices
- Product group
- Manual balancing
- Description
- Measuring orifice DN450 (PN25)
- Size
- DN 450
- Kvs value
- 3430 m³/h
- Pressure class
- PN 25
- Contains batteries
- No
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- Net weight
- 30 Kilogram
- Gross weight
- 30 Kilogram
- Volume
- 46.06 Liter
- EAN
- 5702420118000
- HS code
- 9026.90
- Kvs values [m³/h]
- 3430 m³/h
Standards & Compliance
- Size / Series
- Measuring orifice
- Pressure Rating
- PN 25
- HS Code
- 9026.90
Compatibility & Fitment
Select the orifice by pipe size (DN 450); the Kvs value fixes the flow/pressure-drop relation used to compute circuit flow with a differential-pressure measuring instrument. For large-diameter risers and mains where a measuring balancing valve is not fitted. Confirm DN and flange class before ordering.
