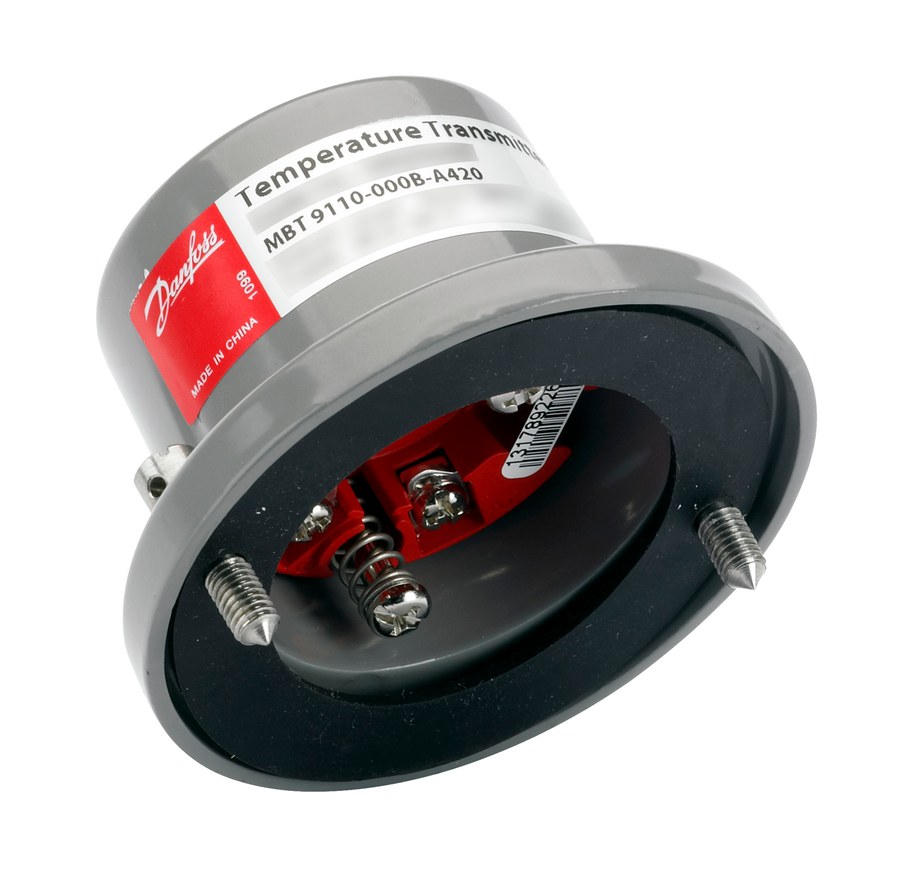

Danfoss MBT 9110 temperature transmitter, Pt 100, -50 to +200 C (-58 to +392 F), 4-20 mA output
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 9110 temperature transmitter, code 084Z6000 (type designation MBT 9110-000B-A420). Two-wire loop-powered head/box transmitter converting a Pt 100 signal into a 4-20 mA output proportional to the factory-set measuring range -50 to +200 C (-58 to +392 F), for temperature monitoring in general industry and marine installations. Pt 100 platinum input (100 ohm at 0 C) per EN 60751. Supply voltage 8-35 V DC; standard high-lid enclosure, IP54. CE marked.
Technical Specifications
- Type
- MBT 9110 (temperature transmitter, head/box)
- Type designation
- MBT 9110-000B-A420
- Code number
- 084Z6000
- Sensor input
- Pt 100 platinum resistance (100 ohm at 0 C) per EN 60751
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Supply voltage
- 8-35 V DC
- Enclosure
- Standard, high lid
- Enclosure rating
- IP54
- Approvals
- CE
- EAN
- 5702423123414
- Product group
- Sensors
- Ambient temperature max.
- 85 °C
- Temperature range
- -200 °C to 850 °C
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Net weight
- 0.117 kg
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- Output 2 wire
- Electrical connection size
- 2 terminals
- Enclosure rating IP
- IP54
- In scope of WEEE
- Yes
- Insertion type
- Fixed
- Sensor elem. resistance
- 100 Ohm
- Sensor element
- 1 pc
- Sensor element type
- Pt
- Supply voltage [V] DC
- 8.00 V to 35.00 V
- Transmitter setting range
- -50 °C to 200 °C
- Transmitter type
- Standard, high lid
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 9110 transmitter (4-20 mA). Confirm the factory range (-50 to +200 C (-58 to +392 F)) matches the receiving controller/PLC scaling and pair with a Pt 100 sensor. Requires an 8-35 V DC loop supply.
