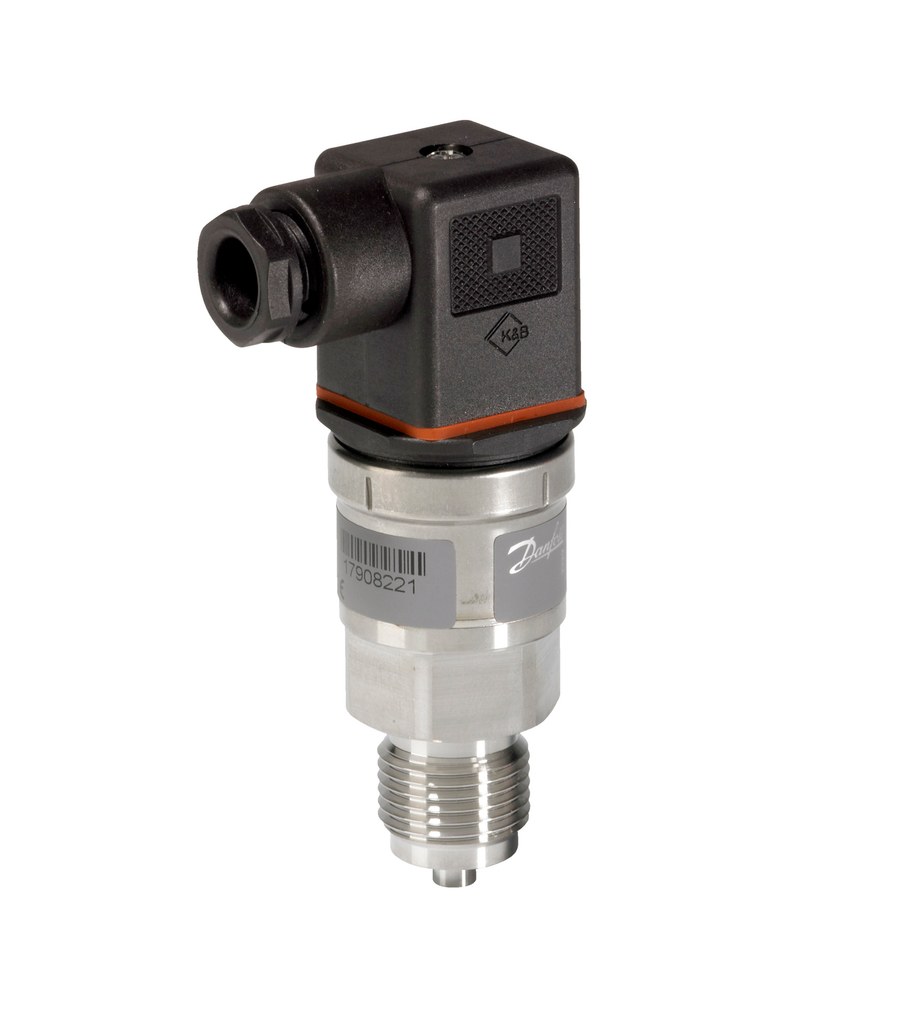

Danfoss MBS 1700 Pressure Transmitter 0-6 bar 4-20MA G1/2

Danfoss MBS 1700 general-purpose pressure transmitter, range 0-6 bar, 4-20 mA output, G1/2 (EN 837) pressure connection, Pg9 plug (DIN 43650-A / EN 175301-803-A). Enclosure and wetted parts AISI 316L stainless steel. Code no. 060G6104; specification key MBS 1700-1812-1AB04. Supply 9-32 V DC. For industrial and hydraulic pressure measurement.

Compact two-wire pressure transmitter, 4-20 mA output (short-circuit protected), supply voltage 9-32 V DC (polarity protected). Enclosure and wetted parts of acid-resistant stainless steel AISI 316L. Fully digitally compensated. Accuracy (incl. non-linearity, hysteresis and repeatability) <= +/-0.5% FS (typ.). Enclosure IP65 (fulfilled together with mating connector). Pressure connection G1/2 A (EN 837). Electrical connection plug Pg9 per EN 175301-803-A (DIN 43650-A). Compensated/transmitter operating temperature -40 to +85 degC. Standards

EMC per EN 61326, RoHS; UL approved component.

Range

0-6 bar; Code no.: 060G6104; Spec key: MBS 1700-1812-1AB04; Output: 4-20 mA (2-wire); Connection: G1/2 (EN 837).

Code number

060G6104

Product type

MBS 1700

Product group

Sensors

Medium temperature range

-40 °C to 85 °C

Ambient temperature range

-40 °C to 85 °C

Approval

C UL US UL Recognized; CE

UL mark

Yes

CE mark

Yes

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.186 kg

EAN

5702423295388

Accuracy, max.

1.00 %

Accuracy, typical

0.5 %

Adj. zero point and span

No

Compensated temp. range

0 °C to 80 °C

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

Flush diaphragm

No

High Clipping Level

22.40

In scope of WEEE

Yes

Intrinsically safe

No

Low Clipping level

3.60

Negative / common

Pin 2

Non-linearity BFSL

0.50 %

Output signal

Current, 4 mA to 20 mA

Overload pressure max.

36.0 bar

Positive / supply

Pin 1

Pressure connection HEX

27.0 mm

Pressure connection size

1/2

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range

0.00 bar to 6.00 bar

Pressure reference

Gauge (relative)

Material

AISI 316L stainless steel (enclosure and wetted parts)

Pressure Rating

0-6 bar

Temperature Range

-40 to +85 degC

IP Rating

IP65

Classification / Approval

CE (EMC EN 61326), UL, RoHS

HS Code

9026.20
