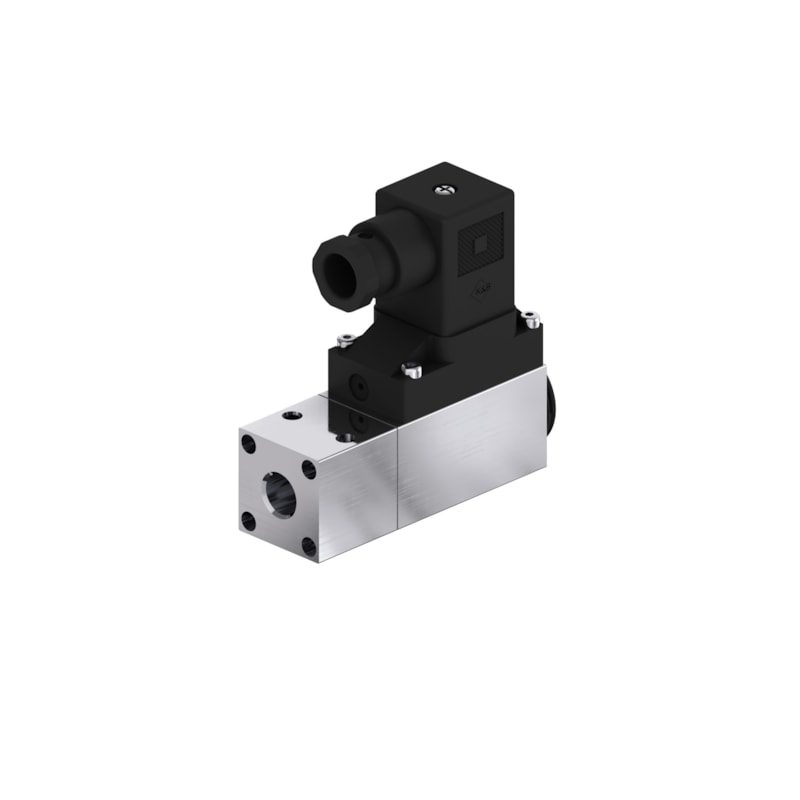

Danfoss MBC 5000-5651-1CB04 block-type pressure switch, 40 bar to 400 bar, SPDT, automatic reset, G1/4, Pg 11 plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBC 5000-5651-1CB04 block-type pressure switch, genuine OEM code number 061B510666. Single-pressure switch from the Danfoss MBC block system for industrial pressure monitoring and machinery supervision. Piston (stainless steel) sensing element, regulation range 40 bar to 400 bar with 20 bar to 50 bar differential at the min/max setting. SPDT single-pole changeover contact, automatic reset. G 1/4 in female (ISO 228-1) pressure connection; DIN 43650-A / EN 175301-803-A plug, Pg 11. Anodized aluminium housing, IP65 enclosure, ambient -40 °C to 85 °C. Max. working pressure 600 bar (8700 psig), burst 1200 bar. EAN 5702428913638.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 061B510666
- Type designation
- MBC 5000-5651-1CB04
- Product
- MBC 5000 block-type pressure switch
- Category
- Sensors & Instrumentation — Pressure Switches
- Sensing element
- Piston
- Regulation (setting) range
- 40 bar to 400 bar
- Differential at min/max setting
- 20 bar to 50 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole changeover)
- Contact rating
- AC15=0.5 A, 250 V DC13=12 W, 125 V
- Pressure connection
- G 1/4 in female (ISO 228-1)
- Electrical connection
- DIN 43650-A / EN 175301-803-A plug, Pg 11
- Max. working pressure
- 600 bar (8700 psig)
- Max. test pressure
- 600 bar
- Burst pressure
- 1200 bar
- Enclosure rating
- IP65 (EN 60529)
- Ambient temperature
- -40 °C to 85 °C
- Housing
- anodized AlMgSi1 (AW-6082T6) aluminium; plug fixture glass-filled PA 6.6
- Wetted sensing element
- stainless steel piston sensor
- EAN
- 5702428913638
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- G 1/4 in female (ISO 228-1)
- Material
- Stainless steel piston sensor; anodized AlMgSi1 aluminium housing; IP65 enclosure
- Thread Standard
- G 1/4 in female (ISO 228-1)
- Pressure Rating
- max. working pressure 600 bar (8700 psig); test 600 bar; burst 1200 bar
- Temperature Range
- -40 °C to 85 °C ambient
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
MBC 5000 is part of the Danfoss MBC block system; the plain (C-type) pressure connection is the standard direct connection. Piston (stainless steel) element suits media compatible with stainless steel (air, neutral gases, oil, water). Distinct from other MBC codes by range × sensing element × pressure connection × plug entry — verify the full type designation MBC 5000-5651-1CB04.
