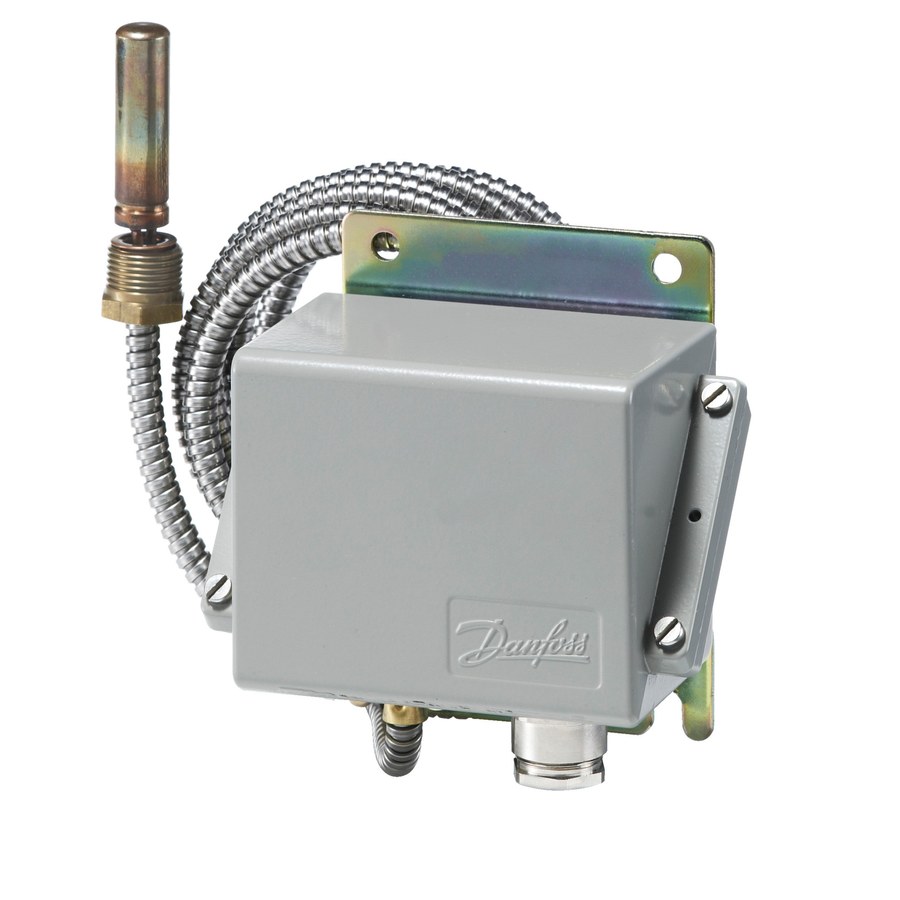

Danfoss KPS77 thermostat, 20 to 60 °C, automatic reset, remote bulb (5000 mm capillary)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss KPS77 marine thermostat, code 060L311966. Regulating range 20 to 60 °C (68 to 140 °F) via rigid (direct-mounted) sensor. Differential 3 to 14 K, adjustable; automatic reset; SPDT gold snap-action contact. Enclosure IP67; ambient -40 to +70 °C; maximum sensor temperature 130 °C (266 °F). Enamelled pressure die-cast aluminium (GD-AlSi 12) housing. For temperature monitoring, control and limit protection of non-aggressive media. Carries marine type approval (ABS/BV/DNV/GL/LR/NKK/RINA). EAN 5702423147717.
Specifications
- Part number
- 060L311966
- HS code
- 9032.10
- Material
- remote bulb sensor with enamelled die-cast aluminium housing and steel capillary
- Temperature range
- -40 to +70 °C
- IP rating
- IP67
Compatibility
KPS77 marine temperature switch (IP67, remote bulb sensor) for temperature regulation and limit/overheat protection on ships, compressors and large machinery. Contact wired NO or NC. Verify regulating range (20 to 60 °C), sensor length and pocket before ordering.
Standards
Approvals
- CE
- EAC
- CCC
- CCS
- UL
- ABS
- BV
- DNV
- GL
- LR
- NKK
- RINA
- LVD
