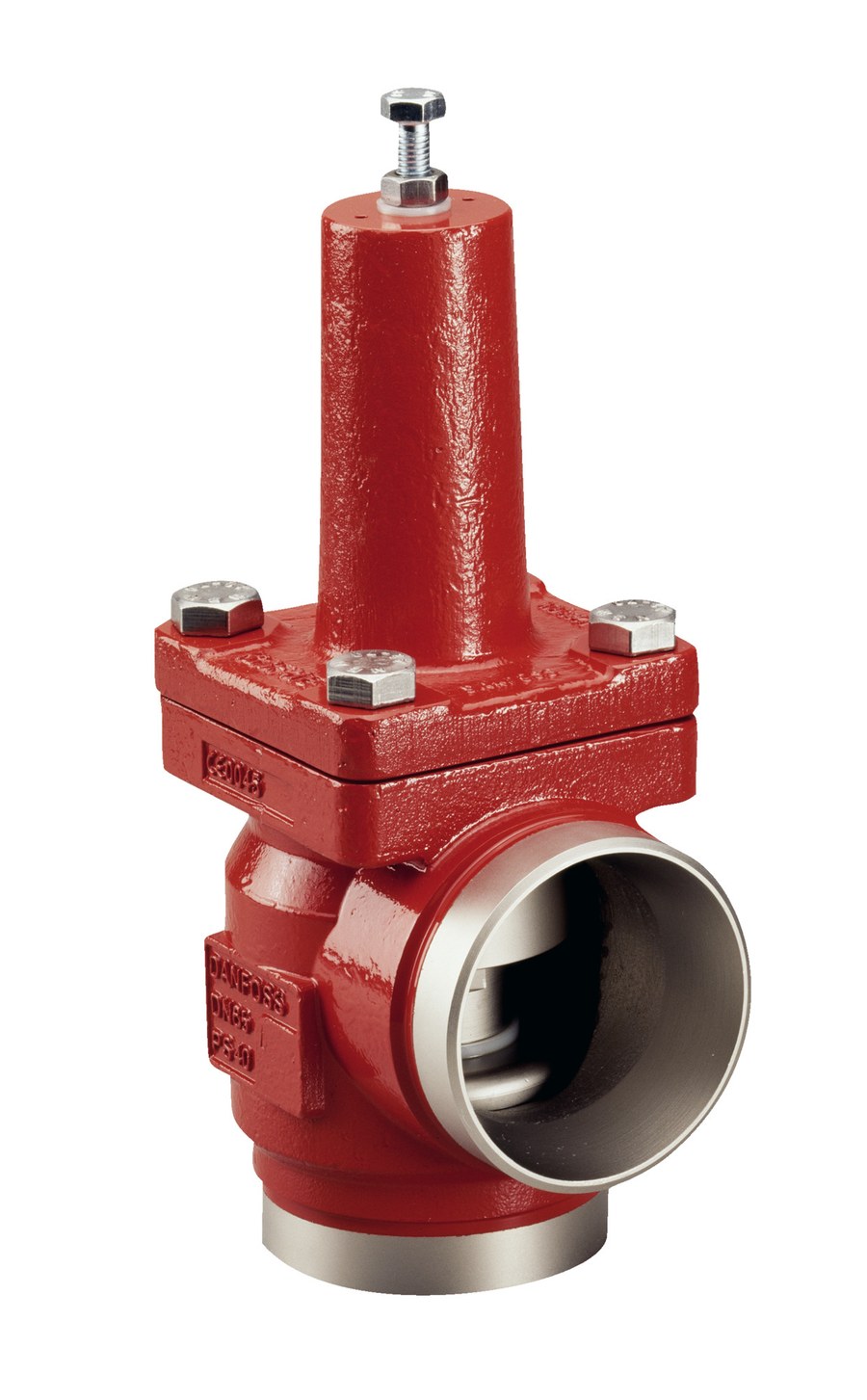

Danfoss KDC 200 A 2 multifunctional compressor pressure control valve, 200 mm (8 in) butt weld ASME B36.10M Schedule 40, angle-way, 2 bar opening differential, 40 bar MWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KDC 200 A 2 multifunctional compressor valve (pressure control valve), code 148G3836. Angle-way valve with butt-weld connections to ASME B36.10M Schedule 40, nominal size 200 mm (8 in), for industrial refrigeration compressor packages. The KDC controls the compressor discharge pressure to ensure a fast build-up of pressure and lubrication (oil) pressure at start-up, and simultaneously acts as a check valve in the compressor discharge line to prevent reverse flow when the compressor stops. The valve is force-controlled: it opens when the pressure downstream (oil separator / discharge side) rises to 2 bar (29 psi) above the suction pressure, at which point the spring is compressed and the cone lifts. This 2 bar spring setting suits high-pressure compressors. Housing and bonnet are low-temperature steel with stainless-steel bolts; the valve is mounted vertically with the cone downward and carries a threaded NPT 1/4 in pilot-line connection on the bonnet. Maximum working pressure 40 bar (580 psig); media temperature range -50 °C to 150 °C (-58 °F to 302 °F). Flow coefficient Kv 757 m³/h (Cv 878 gal/min) fully open. Suitable for hydrocarbon (HC) refrigerants. PED category II. CE marked; EAC (EAEU) certified.
Technical Specifications
- Type
- Danfoss KDC 200 A 2 multifunctional compressor valve (pressure control valve)
- Code number
- 148G3836
- Series
- KDC / GVD (mechanical pressure regulating valves)
- Function
- discharge-pressure control + discharge-line check valve (fast oil/lubrication pressure build-up at compressor start)
- Direction
- Angle-way
- Connection type
- Butt weld
- Connection standard
- ASME B36.10M Schedule 40
- Nominal size
- 200 mm (8 in)
- Opening (set) differential pressure
- 2 bar (29 psi)
- Maximum working pressure
- 40 bar (580 psig)
- Media temperature range
- -50 °C to 150 °C (-58 °F to 302 °F)
- Kv fully open
- 757 m³/h
- Cv fully open
- 878 gal/min
- Body / bonnet material
- low-temperature steel; stainless-steel bolts
- Pilot connection
- NPT 1/4 in (on bonnet)
- Mounting
- vertical, cone downward
- Refrigerants
- R1270, R170, R290, R600, R600a, RE170
- PED category
- II
- Approvals
- CE marked; EAC (EAEU) certified
- Net weight
- 84.836 Kilogram
- Gross weight
- 94.4 Kilogram
- EAN
- 5702428883283
Standards & Compliance
- Standard
- ASME B36.10M Schedule 40
- Size / Series
- 200 mm
- Material
- Low-temperature steel
- Pressure Rating
- 40 bar
- Temperature Range
- -50 °C to 150 °C
- HS Code
- 8481.10
Compatibility & Fitment
Danfoss KDC 200 A 2 is selected by compressor package: match nominal size (200 mm (8 in)), weld-end standard (ASME B36.10M Schedule 40; letter D = EN 10220, letter A = ASME B36.10M Schedule 40), and the opening differential-pressure spring (2 bar — use 0.5 bar for low-pressure/booster compressors and 2 bar for standard high-pressure compressors). This is the hydrocarbon (HC) refrigerant version (R290/R600a/R1270 etc.). KDC and GVD share internal parts and servicing; seal kits, spring kits and bonnet/housing spares are available separately under the KDC/GVD spare-part codes.
