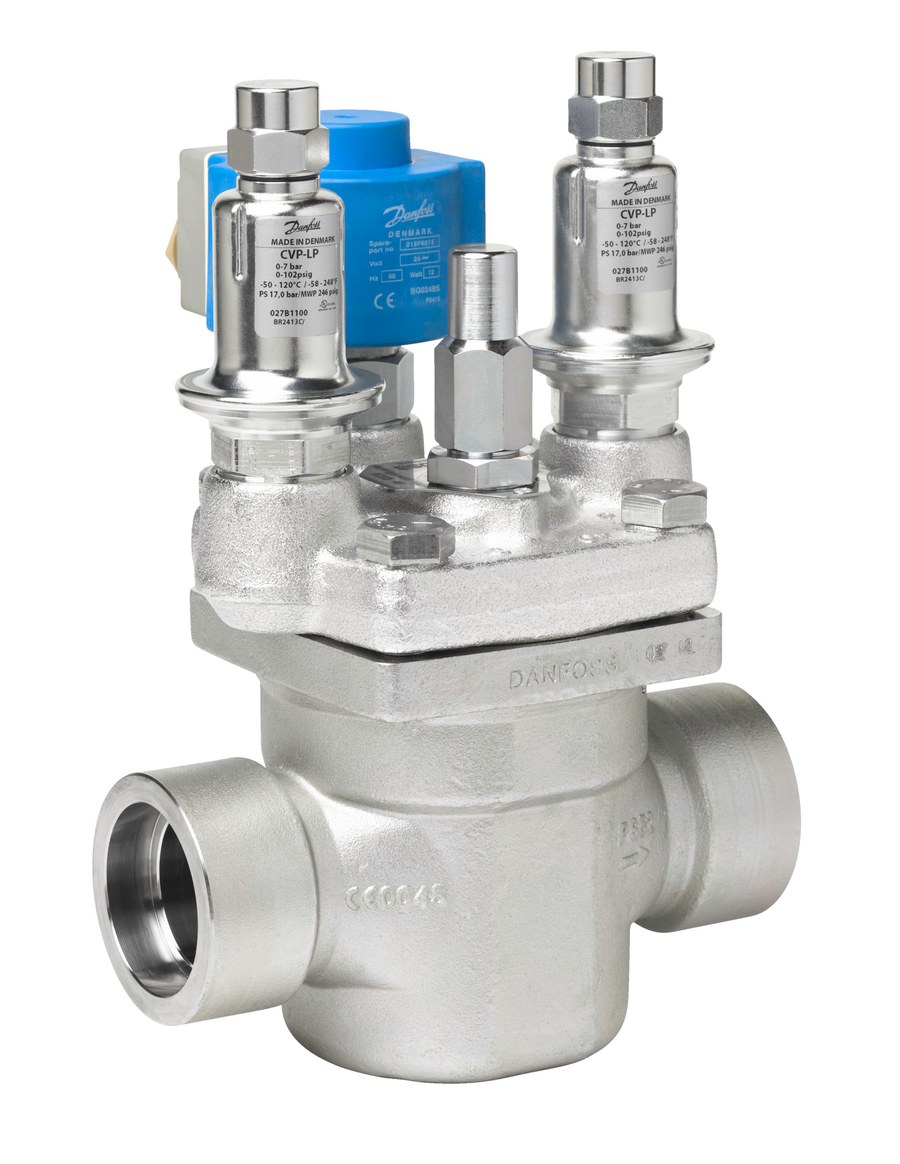

Danfoss ICS3E 25-15 pilot-operated servo valve, DN20 (3/4 in) butt weld, Kv 6 m³/h (code 027H1062)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICS3E 25-15 pilot-operated servo main valve (code 027H1062) for industrial refrigeration. Straightway steel body, DN20 (3/4 in) butt-weld connections to EN 10220, Kv 6 m³/h (Cv 7 gal/min). The ICS 3 main valve carries up to three pilot function modules on its top cover, giving it a modular control function set (constant pressure, solenoid on/off, differential-pressure and other pilots, ordered separately). Maximum working pressure 65 bar; media temperature -40 to +120 °C. Suitable for ammonia (R717), CO₂ (R744), HFC and hydrocarbon refrigerants.
Specifications
- Part number
- 027H1062
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -40 to +120 °C
Compatibility
Pilot-operated servo main valve for industrial refrigeration. Function is set by the pilot module(s) fitted to the top cover. Verify Kv value, pilot configuration and refrigerant compatibility against your duty before ordering.
Standards
Approvals
