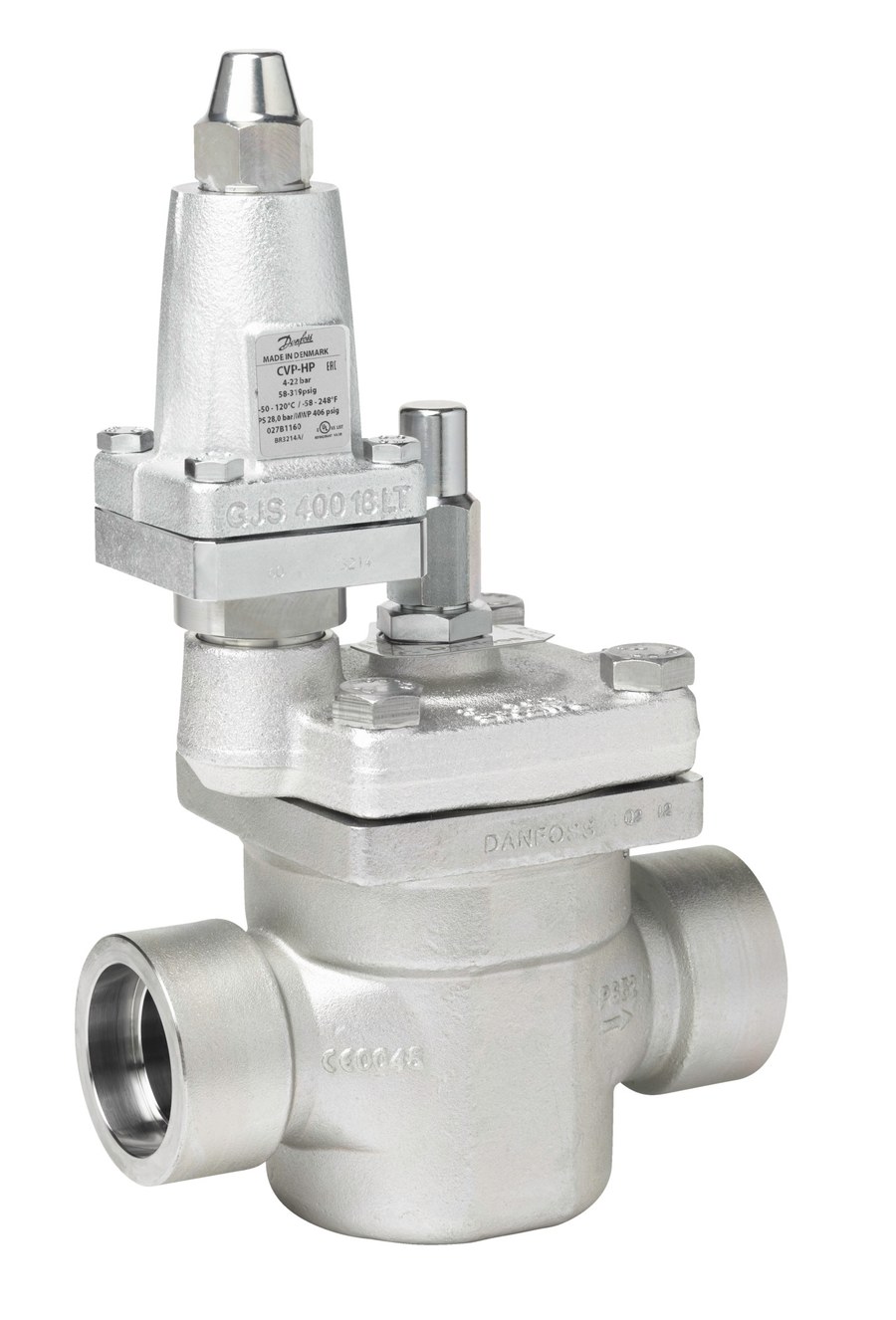

Danfoss ICS1 25-10 pilot-operated servo valve, 25 mm (1 in) butt weld (EN 10220), steel, Kv 3.5 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS1 25-10 pilot-operated servo main valve (code 027H2030) for industrial refrigeration. Straightway steel body with butt weld connections both ends, 25 mm (1 in), to EN 10220; flow coefficient Kv 3.5 m³/h (Cv 4 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants and their oils. Specifications per Danfoss store code 027H2030.
Technical Specifications
- Type
- ICS1 25-10 pilot-operated servo valve
- Code number
- 027H2030
- Size
- 25 mm (1 in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, EN 10220
- Kv value
- 3.5 m³/h (Cv 4 gal/min)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Valve operation
- Pilot operated (single pilot function module on top cover)
- Manual operation
- Manual open spindle
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R410A, R22, R290, R32 and other listed refrigerants
- PED category
- Art. 4, par. 3 (sound engineering practice)
- Approvals
- EAC (LLC CDC EURO-TYSK), UL (Refrigerant Valve 53R0)
- Compliance
- EU RoHS
- EAN
- 5702428236935
- Net weight
- 3.362 Kilogram
- Product group
- Press. and temp. regul. valves
- Approval
- EAC
- China RoHS compliance
- Yes
- Connection Code
- (2001:D26:25)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 4.1 gal/min
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 in
- Inlet connection size [mm]
- 25 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 3.5 m³/h
- Manual operation option
- Manual open spindle
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Opening configuration
- Closed (delta p=0 bar)
- Outlet connection size [in]
- 1 in
- Outlet connection size [mm]
- 25 mm
- Outlet connection type
- Butt weld
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Top cover
- 1 function module
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm (1 in)
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss ICS 1 single-pilot servo main valve for industrial refrigeration. Function is set by the one pilot module fitted to the top cover — distinct from the ICS 3 three-pilot valves. Select by Kv/cone (25-10) and connection (Butt weld EN 10220); the butt-weld, socket-weld and solder variants of the same cone are separate codes. Verify Kv, pilot configuration and refrigerant compatibility against your duty before ordering.
