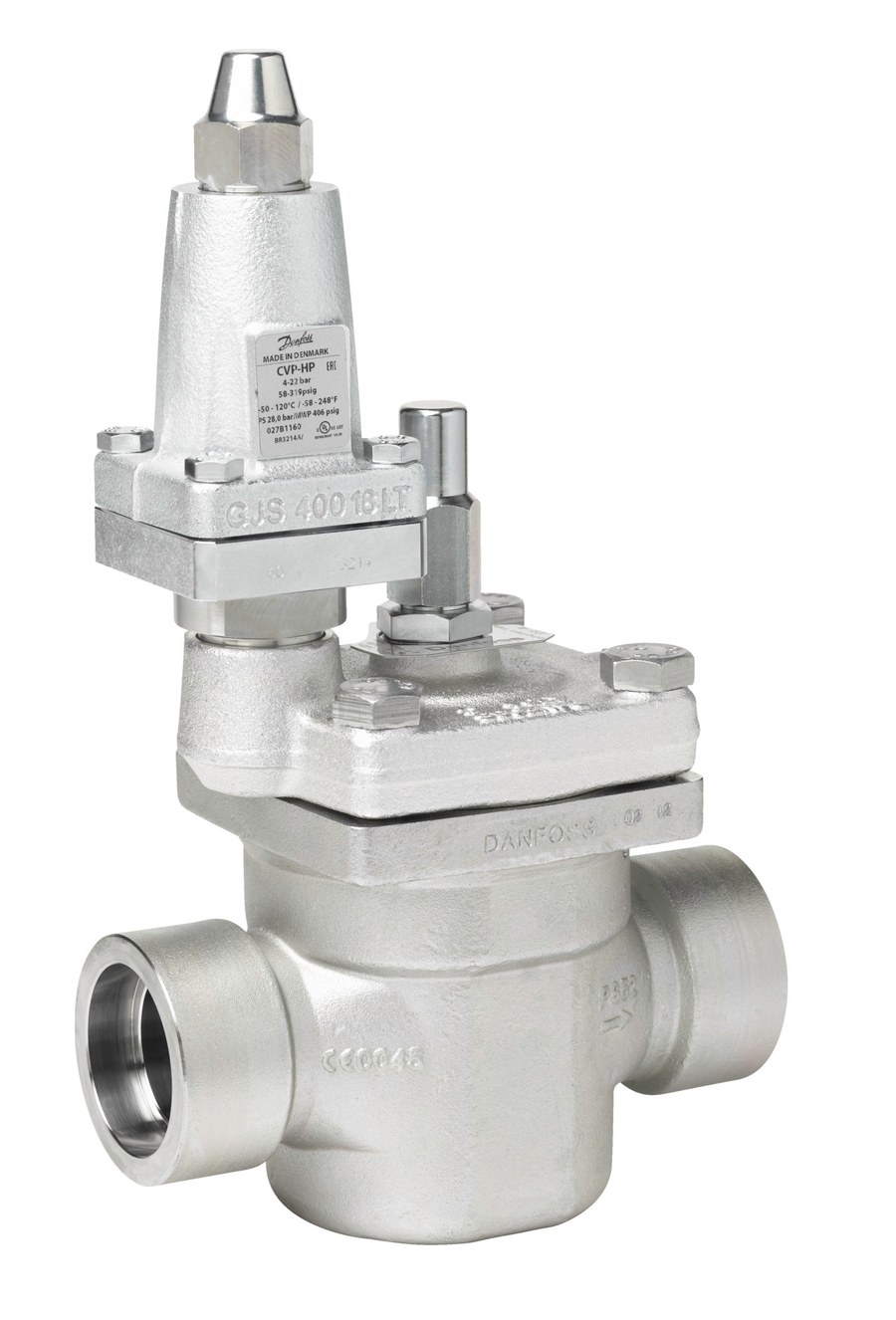

Danfoss ICS1 25-15 pilot-operated servo valve, 25 mm (1 in) butt weld (EN 10220), steel, Kv 6 m³/h (code 027H2040)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICS1 25-15 pilot-operated servo main valve (code 027H2040) for industrial refrigeration. Straightway steel body with butt weld connections both ends, 25 mm (1 in), to EN 10220; flow coefficient Kv 6 m³/h (Cv 7 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants and their oils. Specifications per Danfoss store code 027H2040.
Specifications
- Part number
- 027H2040
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 °C
- Standard
- EN 10220
- Standard size
- 25 mm (1 in)
Compatibility
Danfoss ICS 1 single-pilot servo main valve for industrial refrigeration. Function is set by the one pilot module fitted to the top cover — distinct from the ICS 3 three-pilot valves. Select by Kv/cone (25-15) and connection (Butt weld EN 10220); the butt-weld, socket-weld and solder variants of the same cone are separate codes. Verify Kv, pilot configuration and refrigerant compatibility against your duty before ordering.
Standards
Approvals
