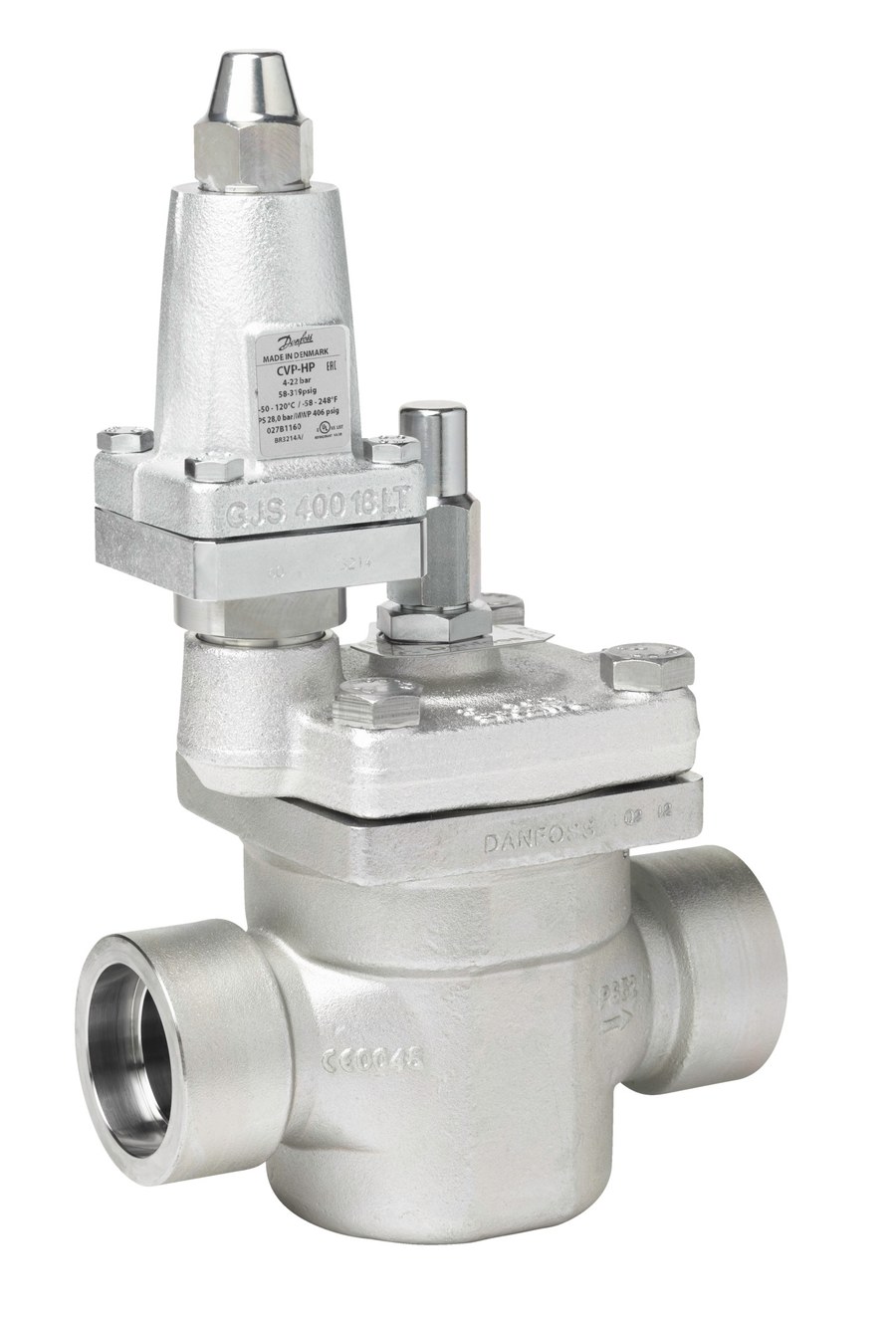

Danfoss ICS1 25-25 pilot-operated servo valve, 25 mm (1 in) socket weld (ASME B 16.11), steel, Kv 11.5 m³/h (code 027H2062)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICS1 25-25 pilot-operated servo main valve (code 027H2062) for industrial refrigeration. Straightway steel body with socket weld connections both ends, 25 mm (1 in), to ASME B 16.11; flow coefficient Kv 11.5 m³/h (Cv 13 gal/min). The ICS 1 main valve carries a single pilot function module on its top cover, setting one control function (constant pressure, solenoid on/off, differential-pressure or other pilot, ordered separately). Maximum working pressure 65 bar (943 psig); media temperature -60 to +120 °C (-76 to 248 °F). Suitable for R717 (ammonia), R744 (CO₂), HFC and hydrocarbon refrigerants and their oils. Specifications per Danfoss store code 027H2062.
Specifications
- Part number
- 027H2062
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 °C
- Standard
- ASME B 16.11
- Standard size
- 25 mm (1 in)
Compatibility
Danfoss ICS 1 single-pilot servo main valve for industrial refrigeration. Function is set by the one pilot module fitted to the top cover — distinct from the ICS 3 three-pilot valves. Select by Kv/cone (25-25) and connection (Socket weld ASME B 16.11); the butt-weld, socket-weld and solder variants of the same cone are separate codes. Verify Kv, pilot configuration and refrigerant compatibility against your duty before ordering.
Standards
Approvals
