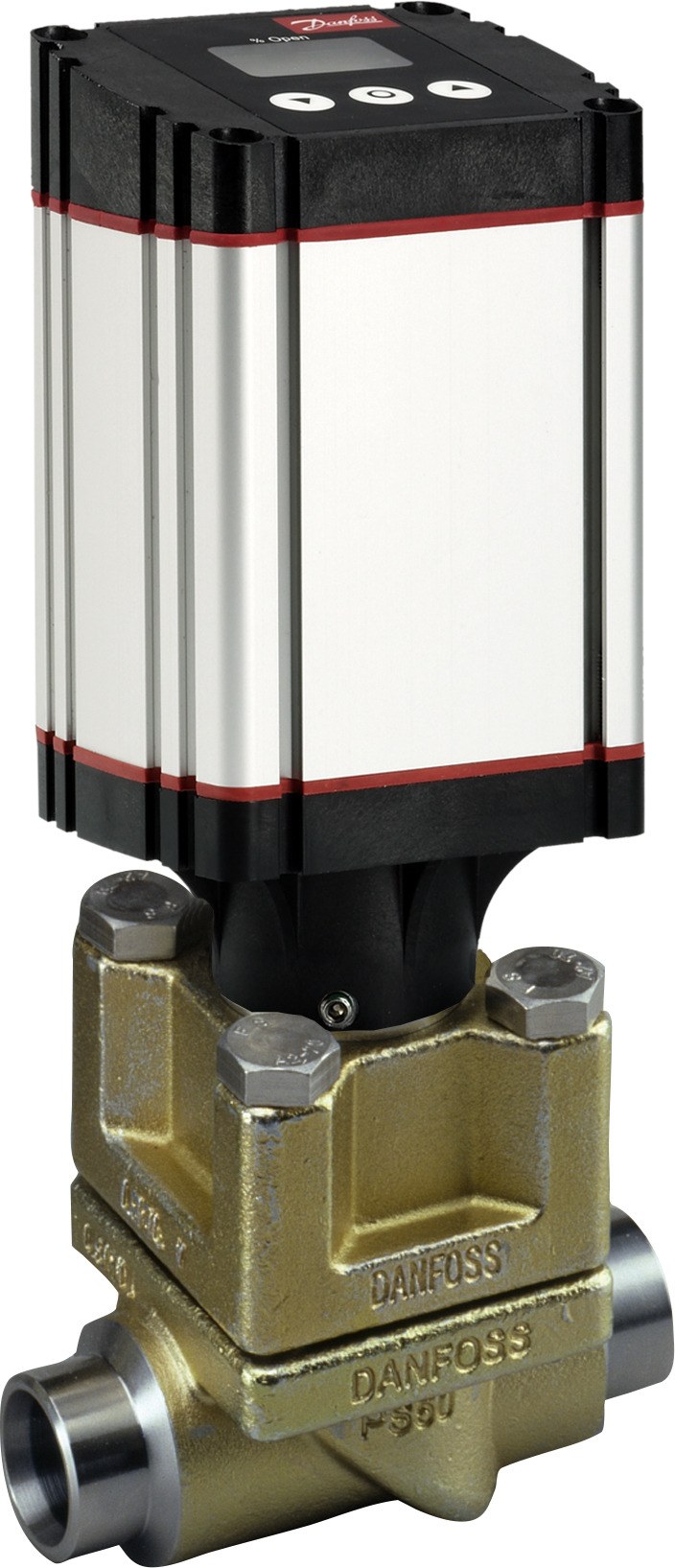

Danfoss ICM 20-B motor-operated valve, DN20 (3/4 in), butt weld, Kv 2.4 m³/h (code 027H1031)

Danfoss ICM 20-B motor-operated control valve (code 027H1031). Straightway valve, port size DN20 (3/4 in), butt weld steel connections to EN 10220. Kv 2.4 m³/h (Cv 2.8 gal/min). Steel body with Zn (TLP) surface coating, operated by an ICAD actuator through a magnetic coupling (actuator ordered separately). Maximum working pressure 52 bar; media temperature -60 to +120 °C; open/close time 3 s. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).

Type

ICM 20-B motor-operated valve

Code number

027H1031

Port size

DN20 (3/4 in)

Direction

Straightway

Inlet/outlet connection

Butt weld, steel, EN 10220

Kv value

2.4 m³/h (Cv 2.8 gal/min)

Body material

Steel

Surface coating

Zn (TLP)

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to +120 °C (-76 to 248 °F)

Actuator system

ICAD motor, magnetic coupling (actuator ordered separately)

Open/close time

3 s

Net weight

1.826 kg

Gross weight

2.002 kg

EAN

5702428237345

Refrigerants

R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22, R1234ze(E), R1234yf and others

PED category

Art. 4, par. 3 (sound engineering practice)

Fluid group

1

Approvals

EAC, UL (Refrigerant Valve, file 53R0), LLC CDC EURO-TYSK

Compliance

EU RoHS, China RoHS

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to +120 °C

HS Code

8481.80
