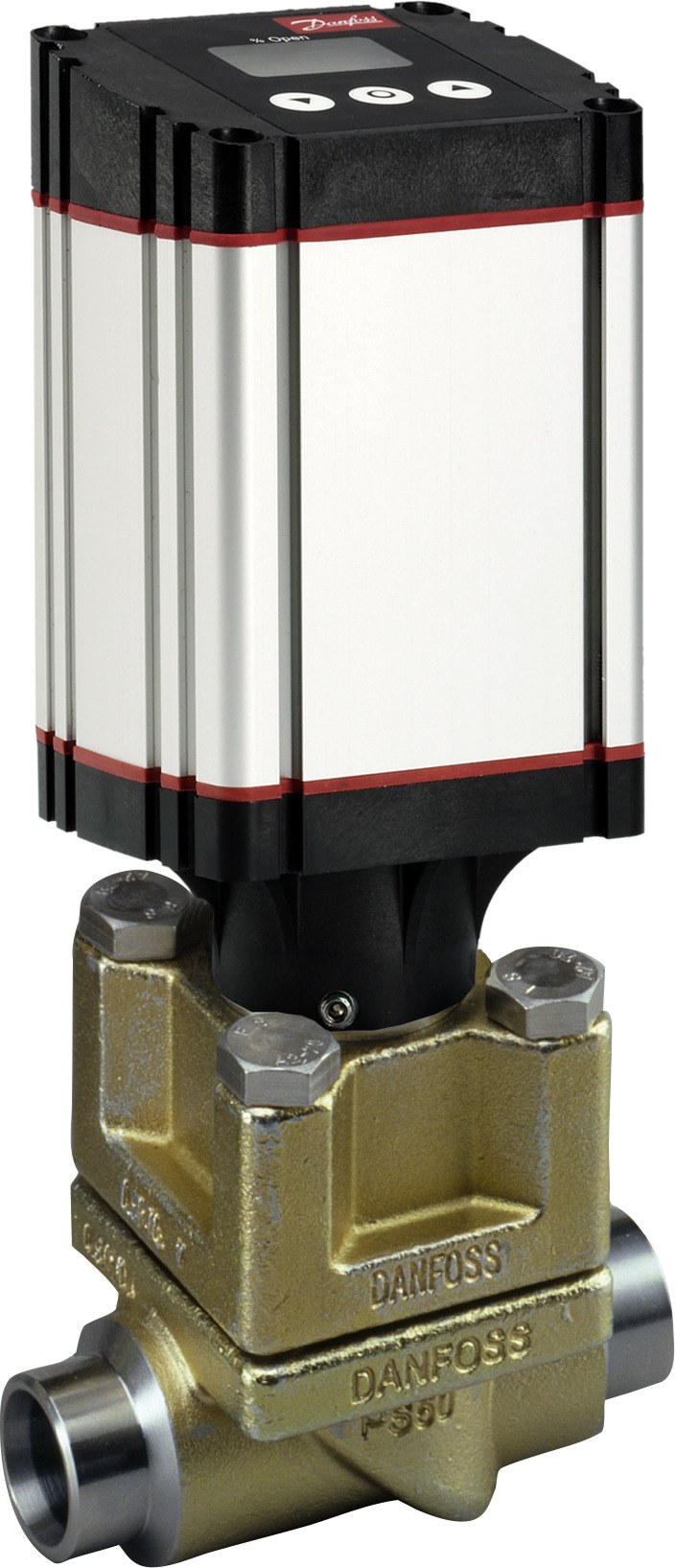

Danfoss ICM 20-A motor-operated valve, DN20 (3/4 in), butt weld, Kv 0.6 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 20-A motor-operated control valve (code 027H1035). Straightway valve, port size DN20 (3/4 in), butt weld steel connections to ASME B36.10M Schedule 80. Kv 0.6 m³/h (Cv 0.7 gal/min). Steel body with Zn (TLP) surface coating, operated by an ICAD actuator through a magnetic coupling (actuator ordered separately). Maximum working pressure 52 bar; media temperature -60 to +120 °C; open/close time 3 s. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Technical Specifications
- Type
- ICM 20-A motor-operated valve
- Code number
- 027H1035
- Port size
- DN20 (3/4 in)
- Direction
- Straightway
- Inlet/outlet connection
- Butt weld, steel, ASME B36.10M Schedule 80
- Kv value
- 0.6 m³/h (Cv 0.7 gal/min)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 °C (-76 to 248 °F)
- Actuator system
- ICAD motor, magnetic coupling (actuator ordered separately)
- Open/close time
- 3 s
- Net weight
- 1.911 kg
- Gross weight
- 2.014 kg
- EAN
- 5702428237321
- Refrigerants
- R717 (ammonia), R744 (CO₂), R134a, R404A, R407C, R410A, R22, R1234ze(E), R1234yf and others
- PED category
- Art. 4, par. 3 (sound engineering practice)
- Fluid group
- 1
- Approvals
- EAC, UL (Refrigerant Valve, file 53R0), LLC CDC EURO-TYSK
- Compliance
- EU RoHS, China RoHS
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Motor-operated control valve for industrial refrigeration. Requires an ICAD 600A/1200A actuator (magnetic coupling). Verify Kv value and refrigerant compatibility against your duty before ordering.
