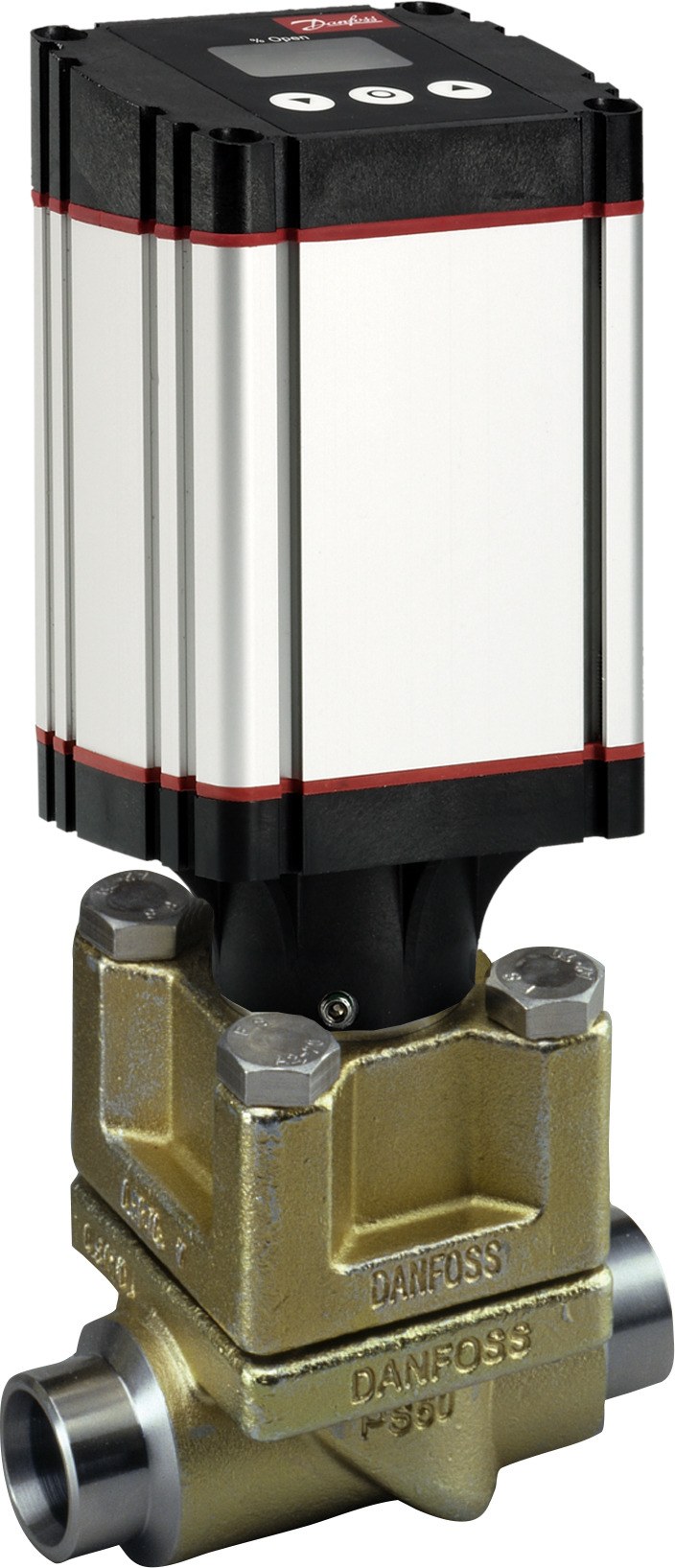

Danfoss ICM 20-A motor-operated valve, 7/8 in (22 mm) solder ODF, soldering, Kv 0.6 m³/h (code 027H1050)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICM 20-A motor-operated control valve (code 027H1050). Straightway valve, port size 7/8 in (22 mm) solder ODF, soldering steel connections to ASME B16.22. Kv 0.6 m³/h (Cv 0.7 gal/min). Steel body with Zn (TLP) surface coating, operated by an ICAD actuator through a magnetic coupling (actuator ordered separately). Maximum working pressure 52 bar; media temperature -60 to +120 °C; open/close time 3 s. For control and regulation in industrial refrigeration systems across a broad range of refrigerants including R717 (ammonia) and R744 (CO₂).
Specifications
- Part number
- 027H1050
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 °C
Compatibility
Motor-operated control valve for industrial refrigeration. Requires an ICAD 600A/1200A actuator (magnetic coupling). Verify Kv value and refrigerant compatibility against your duty before ordering.
Standards
Approvals
