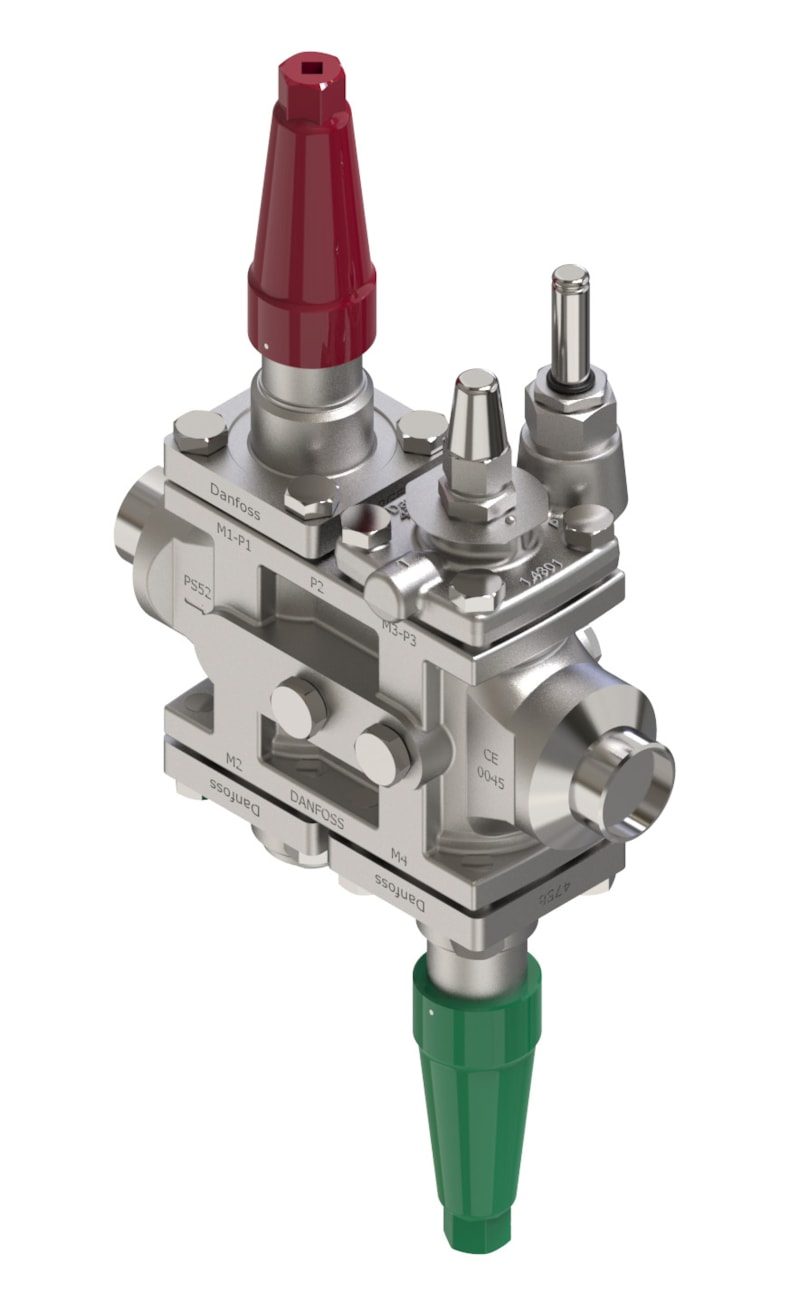

Danfoss ICF SS 25-4-18 Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 25-4-18 Flexline valve station (code 027L4610). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS SS 25), Filter (ICFF SS 25-E), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25). Connection size 25 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF SS 25-4-18 Flexline valve station
- Code number
- 027L4610
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS SS 25), Filter (ICFF SS 25-E), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25)
- Body material
- Stainless steel
- Surface coating
- uncoated
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 19.918 kg, gross weight 22.157 kg
- Approvals
- C-UL-US Listed, CE, EAC
- EAN
- 5702428529242
- Net weight
- 19.918 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Stainless steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS SS 25
- Module 2
- Filter
- Module 2 type
- ICFF SS 25-E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE SS 25
- Module 4
- Stop/check valve
- Module 4 type
- ICFN SS 25
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-4-25KSXFEEHNXXXXX4IXX
- UL approval file name
- REFRIGERANT VALVE 53R0
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 25-4-18 (Stop valve (ICFS SS 25), Filter (ICFF SS 25-E), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25)). The station bolts into a 25 mm line to EN 10220 (butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
