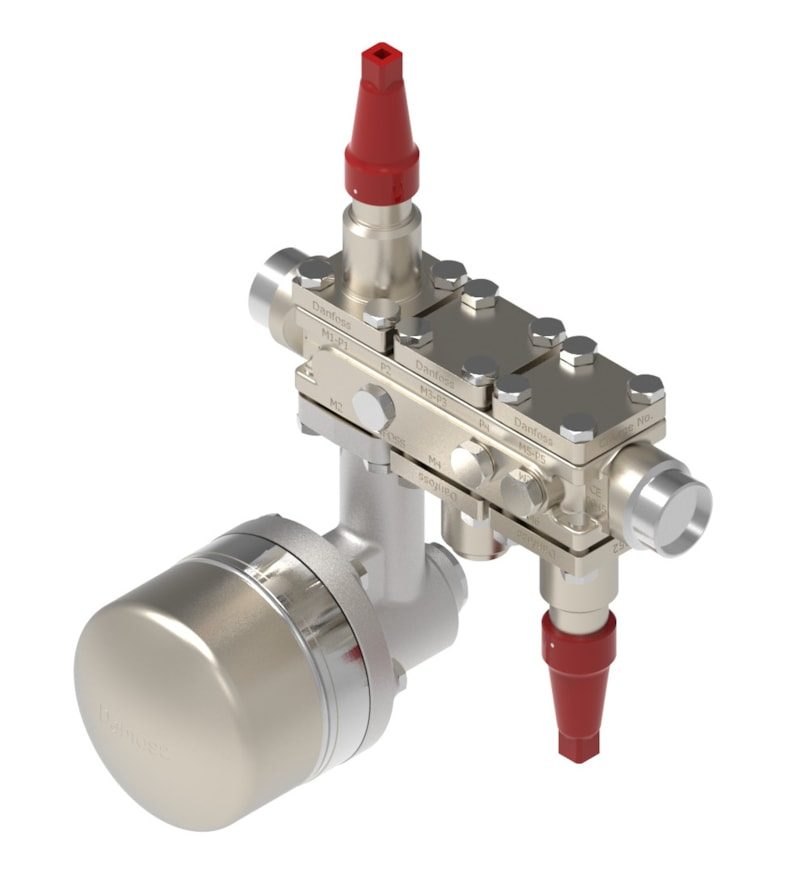

Danfoss ICF 20-6-110D1P1 Flexline valve station, 20 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-110D1P1 Flexline valve station (code 027L3226). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Check valve (ICFC 20P1), Blank top cover (ICFB 20), Stop valve (ICFS 20). Connection size 20 mm, connection standard EN 10220 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-6-110D1P1 Flexline valve station
- Code number
- 027L3226
- Connection size
- 20 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Check valve (ICFC 20P1), Blank top cover (ICFB 20), Stop valve (ICFS 20)
- Body material
- Steel
- Surface coating
- ZnCr04
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 16.249 kg, gross weight 19.163 kg
- Approvals
- CE, EAC, TÜV, UL
- EAN
- 5715162466926
- Net weight
- 16.249 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Float Expansion Valve
- Module 2 type
- ICFD 20
- Module 3
- Blank top cover
- Module 3 type
- ICFB 20
- Module 4
- Check valve
- Module 4 type
- ICFC 20P1
- Module 5
- Blank top cover
- Module 5 type
- ICFB 20
- Module 6
- Stop valve
- Module 6 type
- ICFS 20
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity [pc]
- 6 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-20-6-20DSXD1BXC1BXSX6AAX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-110D1P1 (Stop valve (ICFS 20), Defrost module (ICFD 20), Blank top cover (ICFB 20), Check valve (ICFC 20P1), Blank top cover (ICFB 20), Stop valve (ICFS 20)). The station bolts into a 20 mm line to EN 10220 (butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss

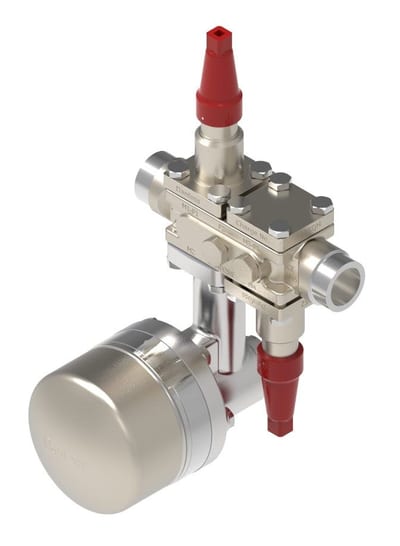

Danfoss ICF 20-4-108D1 Flexline valve station, 20 mm, ASME B 16.11
027L3558
Danfoss
Danfoss ICF 20-4-108D1 Flexline valve station, 25 mm, ASME B 16.11
027L3559
Danfoss

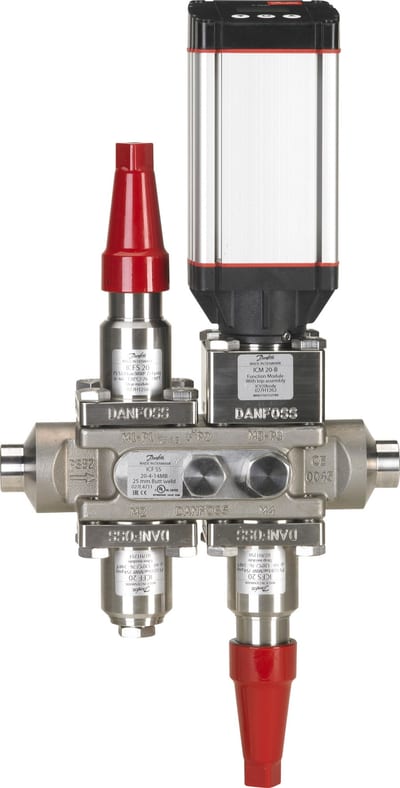

Danfoss ICF 20-4-14MB Flexline valve station, 25 mm, EN 10220
027L3103
Danfoss
Danfoss ICF 20-6-4 Flexline valve station, 25 mm, EN 10220
027L3028
Danfoss
Danfoss ICF 20-6-110D1P1 Flexline valve station, 25 mm, EN 10220
027L3227
Danfoss

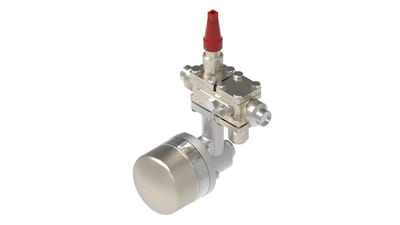

Danfoss ICF 20-4-101D1P1 Flexline valve station, 20 mm, EN 10220
